Man B&W L35MC6-TII User Manual

MAN B&W 5.10
Page 2 of 3
MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B engines 198 66 70-0.2
PCD
L
C
A
IL
G
Dia 1
Dia 2
W
IW
D
B
F
N x diameter (O)N x diameter (O)
D
B
A
G
C
F
IL
L
W
IW
N x diameter (O)

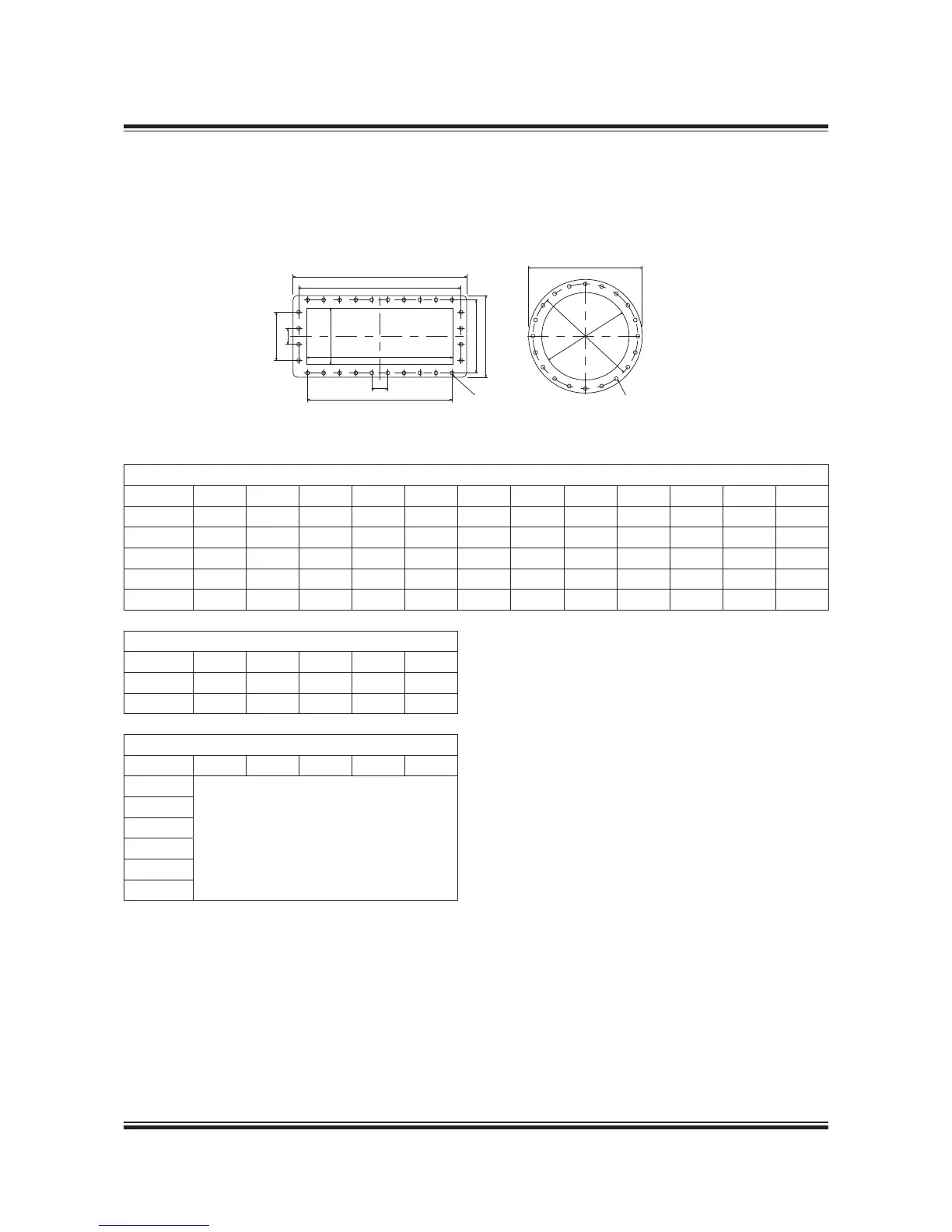

ABB Type TPL/A100
Type TPL - Retangular type
T.C. L W I L I W A B C D F G N O
TPL73 1,168 550 984 381 1,092 324 972 492 108 108 28 ø26
TPL77 1,372 638 1,176 462 1,294 390 1,170 580 130 130 28 ø26
TPL80 1,580 729 1,364 538 1,494 450 1,350 668 150 150 28 ø30
TPL85 1,910 857 1,740 690 1,812 700 1,540 796 140 140 36 ø30
TPL91 2,226 958 2,006 770 2,134 625 1,875 896 125 125 48 ø22
Type TPL - Round type
T.C. Dia 1 Dia 2 PCD N O
TPL69 650 500 600 20 ø22
TPL65 540 400 495 16 ø22
Type A100 series
T.C. Dia 1 Dia 2 PCD N O
A165
Available on request
A170
A175
A180
A185
A190
