Engine Side Control Console and Instrument Panel
178 58 14-0.0

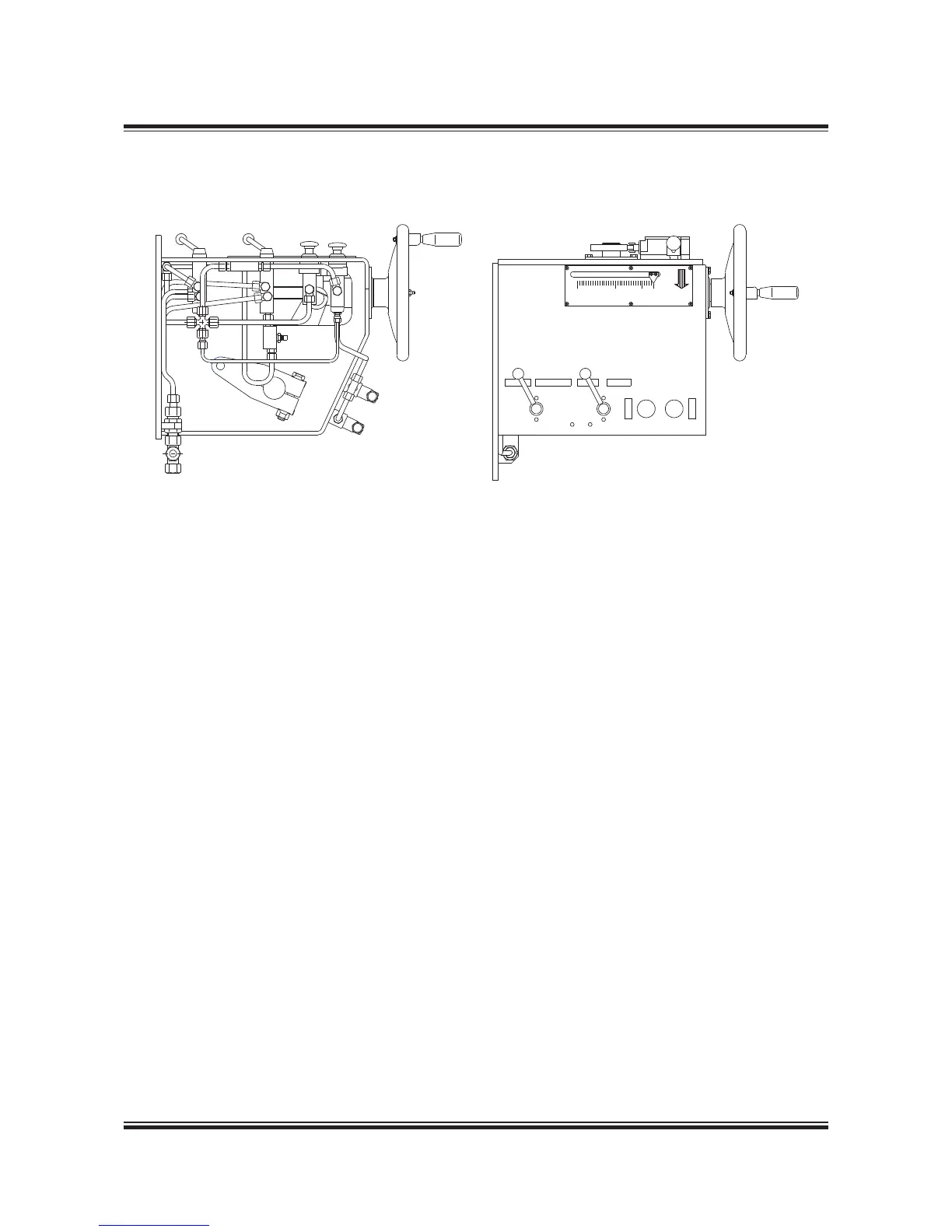

Fig. 16.01.06c: Engine Side Control console and instrument panel
Components included for:
Fixed pitch propeller:
Remote control – manual engine side control
Ahead – Astern handle
Start button
Stop button
The instrument panel includes:
For reversible engine:
Tachometer for engine
Indication for engine side control
Indication for control room control (remote)
Indication for bridge control (remote)
Indication for ‘Ahead’
Indication for ‘Astern’
Indication for auxiliary blower running
Indication and buzzer for wrong way alarm
Indication for turning gear engaged
Indication for ‘Shut down’
Push button for canceling ‘Shut down’, with indica-
tion
REM E EMERGENCY AH D ASTERN
STOP
START
MIN
MAX
START STOP STOP
