Man B&W L35MC6-TII User Manual

MAN B&W 5.02
Page  of 2
MAN Diesel
MAN B&W L35MC6 198 57 87-0.0
Space Requirement
Normal/minimum centre line distance for twin
engine installation: 3,250/2,900 mm (2,900 mm
for common gallery for starboard and port design
engines).
The dimensions are given in mm, and are for
guidance only. If the dimensions cannot be
fullled, please contact MAN Diesel or our local
representative.

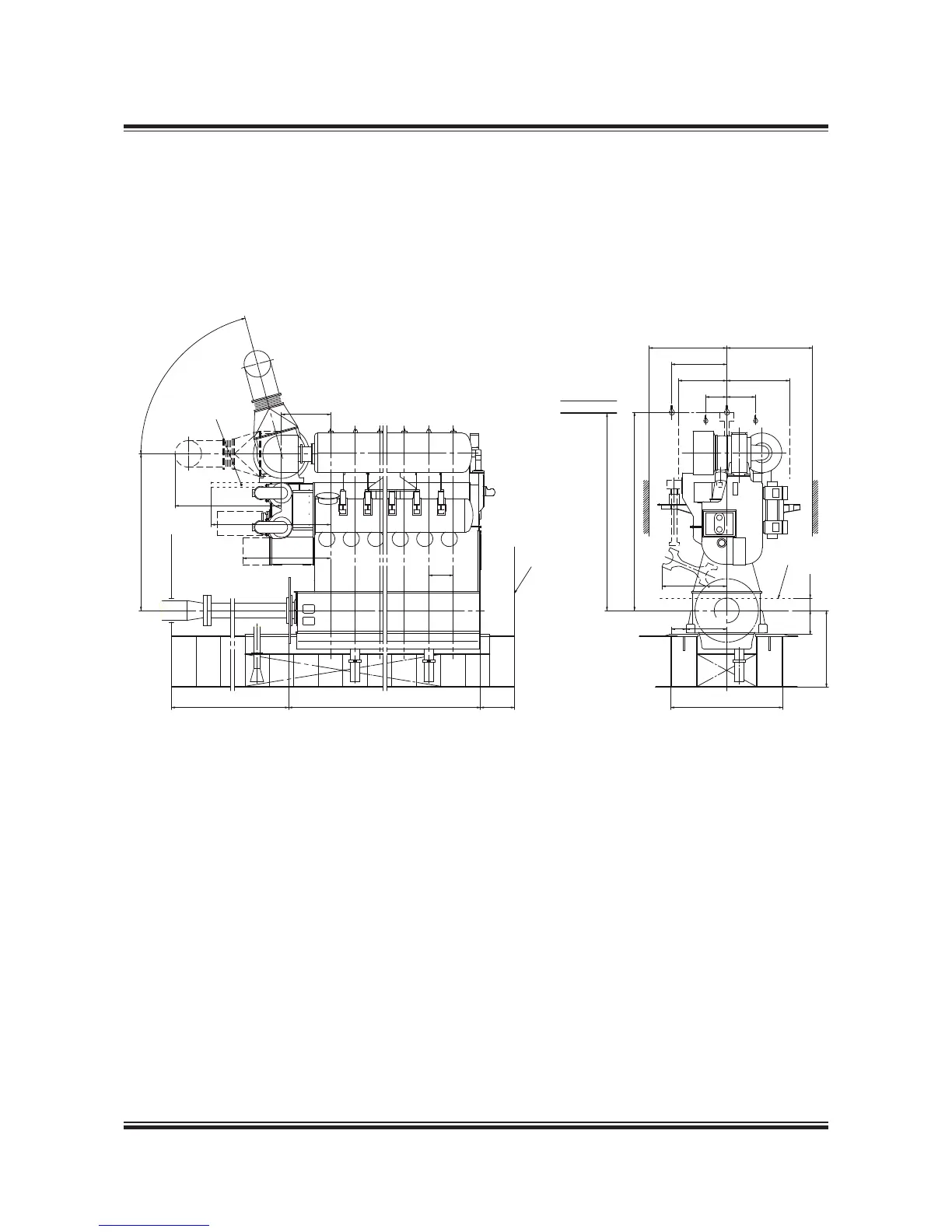

Fig. 5.02.01a: Space requirement for the engine, turbocharger on aft end (4 59 121)
$ECKæBEAM
&LOOR
4ANKæTOP

. /
32
$

 


'
%
"
&
*
æ"ULKHEAD
#YLæ
#RANEæBEAM
FORæ!#
)
^!+

(
6ª
-
,
#
178 21 89-2.1
