MAN B&W 8.07
Page 1 of 1
MAN Diesel
MAN B&W S42MC, S40MC-C, S35MC, S35MC-C, L35MC 198 59 618.1
Crankcase Venting and Bedplate Drain Pipes
Inside diam. of pipe: 100 mm
Hole diam.: 45 mm
To be equipped with flame screen
if required by class rules
Drain cowl
Inside diameter
of drain pipe: 10 mm
Deck
Inside diam. of pipe: 65 mm
To drain tank
To be laid with inclination
Venting from crankcase,
inside diam. of pipe: 40 mm
This pipe to be
delivered with the engine
AR
Vapour discharge
from engine
178 57 80-2.0

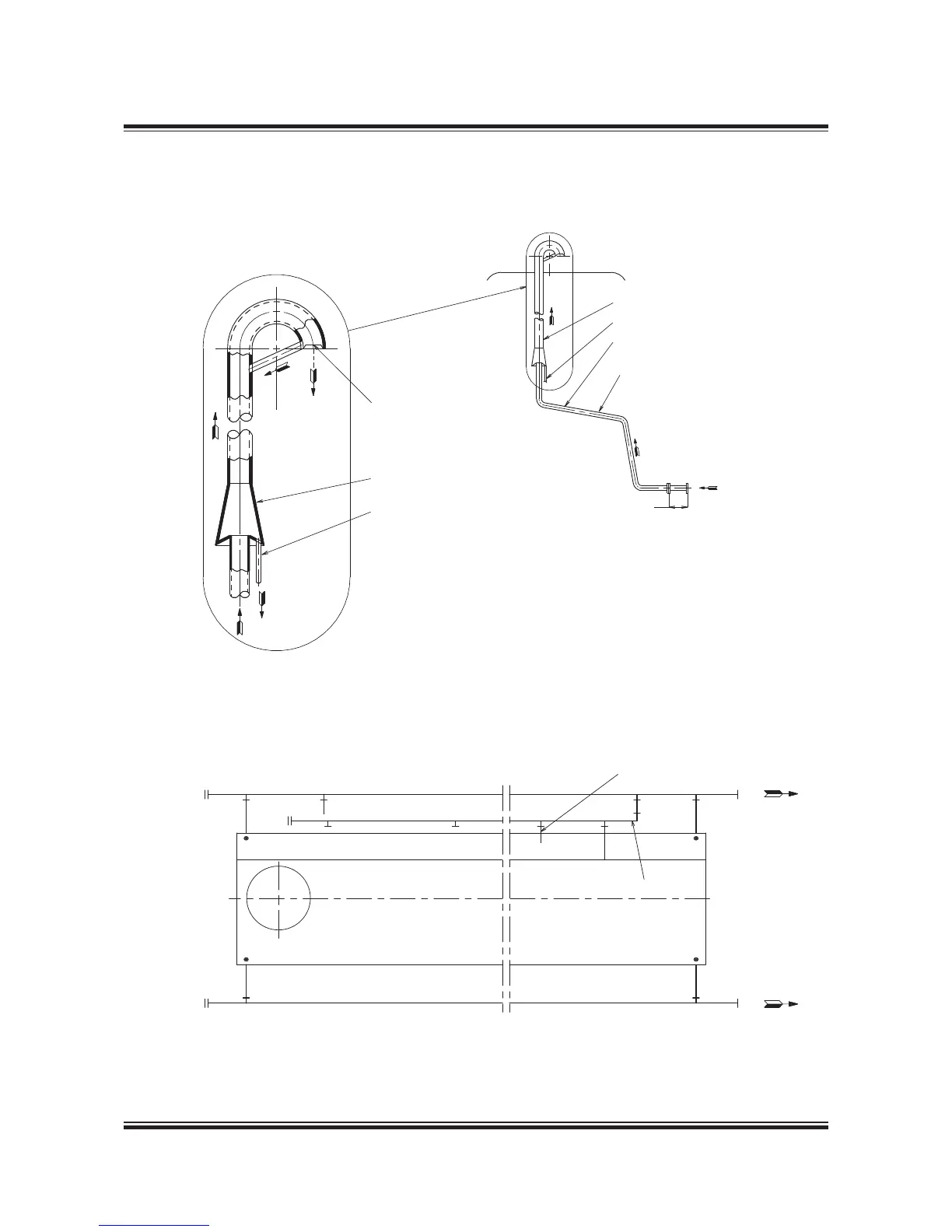

Fig. 8.07.01: Crankcase venting
Fig. 8.07.02: Bedplate drain pipes
178 60 46-4.0
Cyl.1
AE
AE
Drain from turbocharger cleaning
FORE
Drain from exhaust side
