MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B engines 198 70 27-3.0
MHI Type MET
Type MET series - Round type
T.C. Dia 1 Dia 2 PCD B N O Thickness of flanges (A)
MET83MA 180 90 145 114.3 4 18 14
Dia
Dia
Dia 1
Dia 2
A
B
W
N x diameter (O)
N x diameter (O) PCD
N x diameter (O)
N x diameter (O) PCD
Dia 1
N x diameter (O) PCD
W
L
Dia
W
L
L
TCA
TPL
MET
Dia
Dia
Dia 1
Dia 2
A
B
W
N x diameter (O)
N x diameter (O) PCD
N x diameter (O)
N x diameter (O) PCD
Dia 1
N x diameter (O) PCD
W
L
Dia
W
L
L
TCA
TPL
MET
Type MET series
T.C. Dia PCD L W N O Thickness of flanges
MET33MA 43.5 95 95 95 4 14 12
MET42MA 61.5 105 105 105 4 14 14
MET53MA 77 130 125 125 4 14 14
MET60MA 90 145 140 140 4 18 14
MET66MA 90 145 140 140 4 18 14
MET71MA 90 145 140 140 4 18 14
MET90MA 115 155 155 155 4 18 14

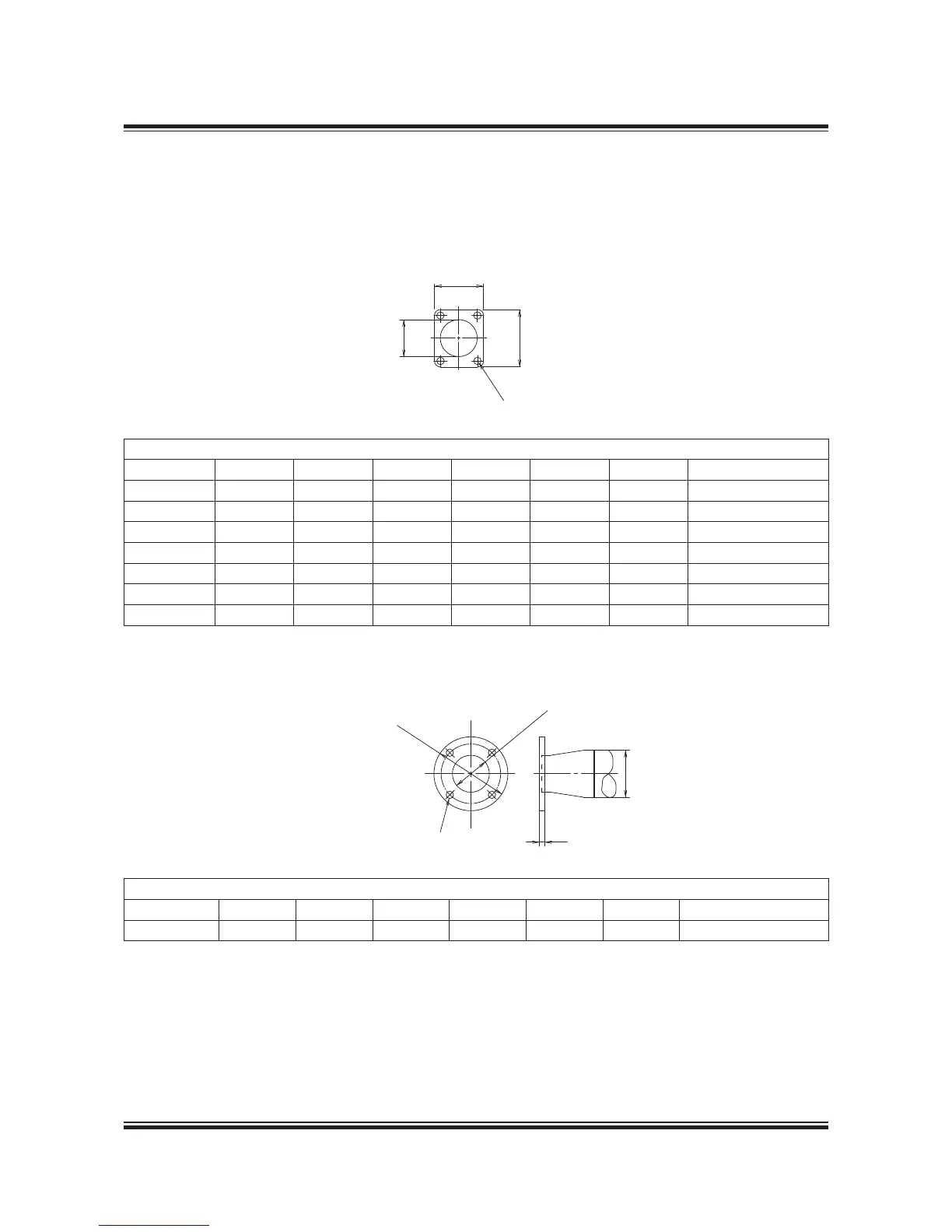

Fig. 5.10.03: Venting of lubbricating oil discharge pipe for turbochargers
