MAN Diesel
198 42 078.5MAN B&W S80MC/MC-C/ME-C, K80MC-C/ME-C, S70MC/MC-C/ME-C/ME-GI,
L70MC-C/ME-C, S65ME-C/ME-GI, S60MC/MC-C/ME-C/ME-GI/ME-B,
L60MC-C/ME-C, S50MC/MC-C/ME-C/ME-B, S46MC-C/ME-B, S42MC,
S40MC-C/ME-B, S35MC/MC-C/ME-B, L35MC, S26MC
178 34 537.1
P Free passage between the engines, width 600 mm and height 2,000 mm
Q Min. distance between engines: 2,250 mm
* Depending on alternator
** Weight includes a standard alternator, make A. van Kaick
All dimensions and masses are approximate and subject to change without prior notice.

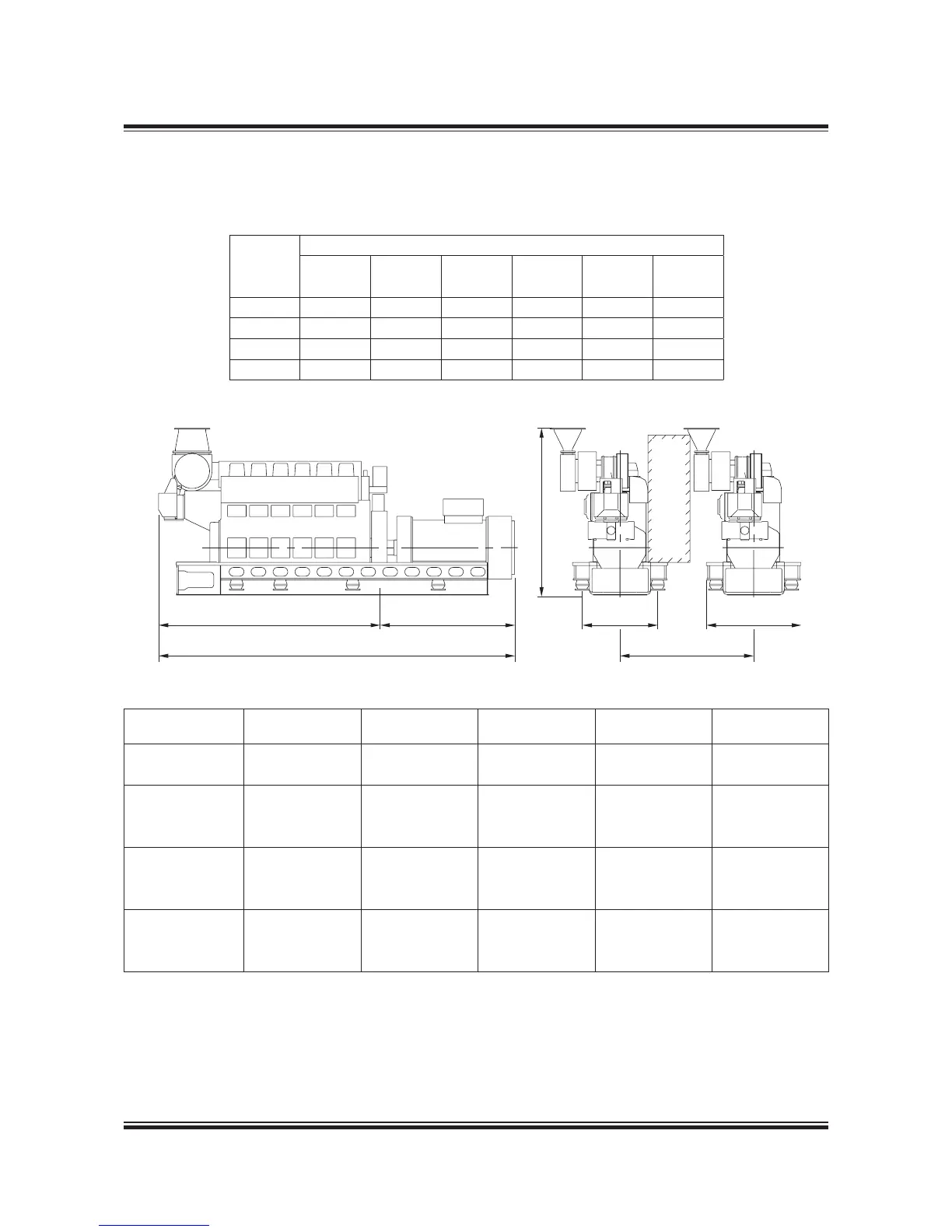

Fig. 4.08.01: Power and outline of L23/30H
A
C
B
H
1,270
Q
1,600
P
L23/30H GenSet Data
Bore: 225 mm Stroke: 300 mm
Power layout
720 r/min 60 Hz 750 r/min 50 Hz 900 r/min 60 Hz
Eng. kW Gen. kW Eng. kW Gen. kW Eng. kW Gen. kW
5L23/30H 650 620 675 640
6L23/30H 780 740 810 770 960 910
7L23/30H 910 865 945 900 1,120 1,065
8L23/30H 1,040 990 1,080 1,025 1,280 1,215
178 23 067.0
No. of Cyls. A (mm) * B (mm) * C (mm) H (mm)
**Dry weight
GenSet (t)
5 (720 r/min) 3,369 2,155 5,524 2,383 18.0
5 (750 r/min) 3,369 2,155 5,524 2,383 18.0
6 (720 r/min) 3,738 2,265 6,004 2,383 19.7
6 (750 r/min) 3,738 2,265 6,004 2,383 19.7
6 (900 r/min) 3,738 2,265 6,004 2,815 21.0
7 (720 r/min) 4,109 2,395 6,504 2,815 21.4
7 (750 r/min) 4,109 2,395 6,504 2,815 21.4
7 (900 r/min) 4,109 2,395 6,504 2,815 22.8
8 (720 r/min) 4,475 2,480 6,959 2,815 23.5
8 (750 r/min) 4,475 2,480 6,959 2,815 23.5
8 (900 r/min) 4,475 2,340 6,815 2,815 24.5
