Man B&W L35MC6-TII User Manual

MAN B&W 5.10
Page 3 of 3
MAN Diesel
MAN B&W MC/MC-C, ME/ME-C/ME-GI/ME-B engines 198 66 70-0.2

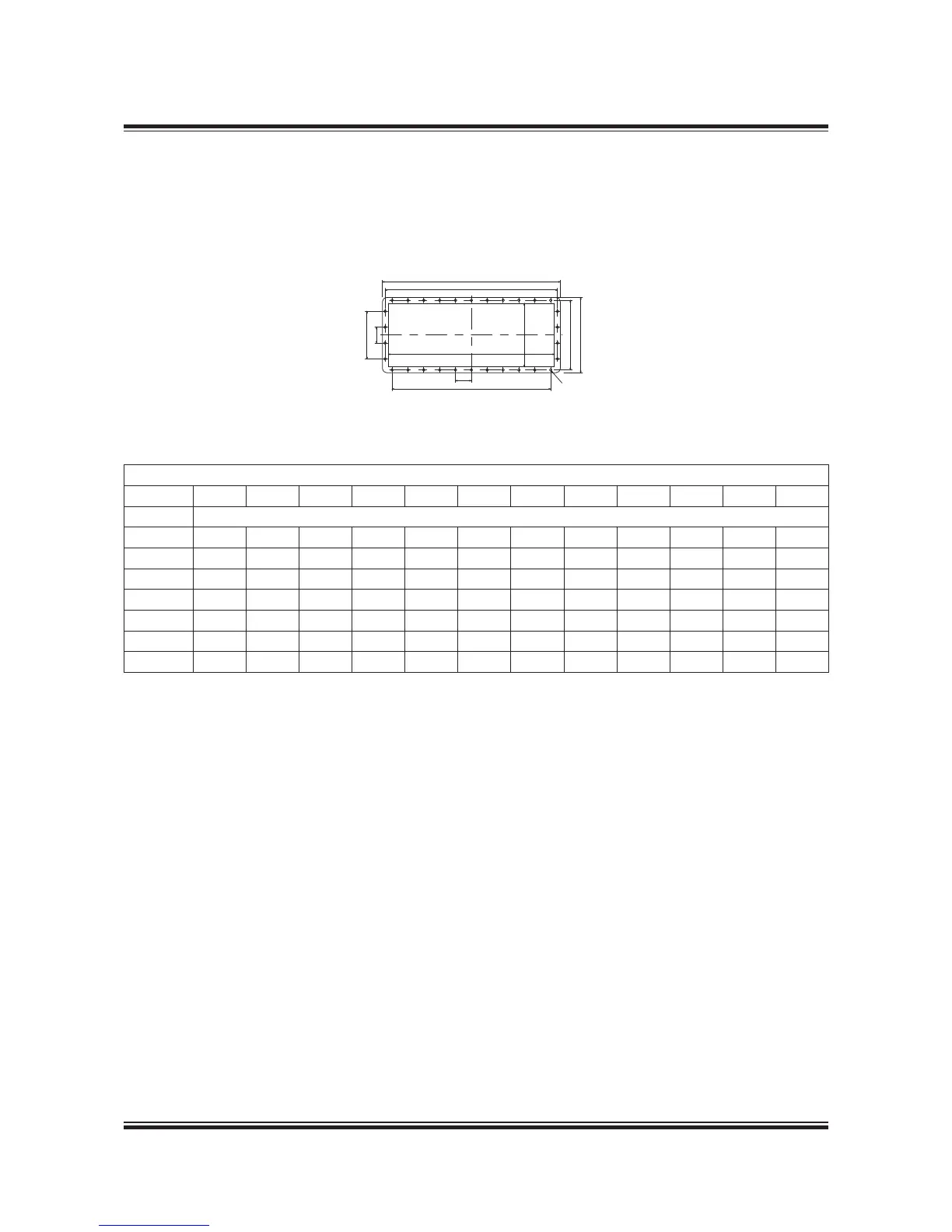

Fig. 5.10.02: Turbocharger, exhaust outlet
503 26 38-6.0.1
PCD
L
C
A
IL
G
Dia 1
Dia 2
W
IW
D
B
F
N x diameter (O)N x diameter (O)
D
B
A
G
C
F
IL
L
W
IW
N x diameter (O)
MHI Type MET
Type MET
T.C. L W I L I W A B C D F G N O
MET33MA Available on request
MET42MA 883 365 793 275 850 240 630 335 80 90 24 ø15
MET53MA 1,122 465 1,006 349 1,073 300 945 420 100 105 28 ø20
MET60MA 1,230 660 1,120 388 1,190 315 1,050 500 105 105 30 ø20
MET66MA 1,380 560 1,254 434 1,330 345 1,200 510 115 120 30 ø24
MET71MA 1,520 700 1,400 480 1,475 345 1,265 640 115 115 34 ø20
MET83MA 1,740 700 1,586 550 1,680 450 1,500 640 150 150 30 ø24
MET90MA 1,910 755 1,750 595 1,850 480 1,650 695 160 165 30 ø24
