Man B&W L35MC6-TII User Manual

MAN B&W 19.11
Page 1 of 1
MAN Diesel
198 78 19-4.0MAN B&W L35MC6
Tool Panels

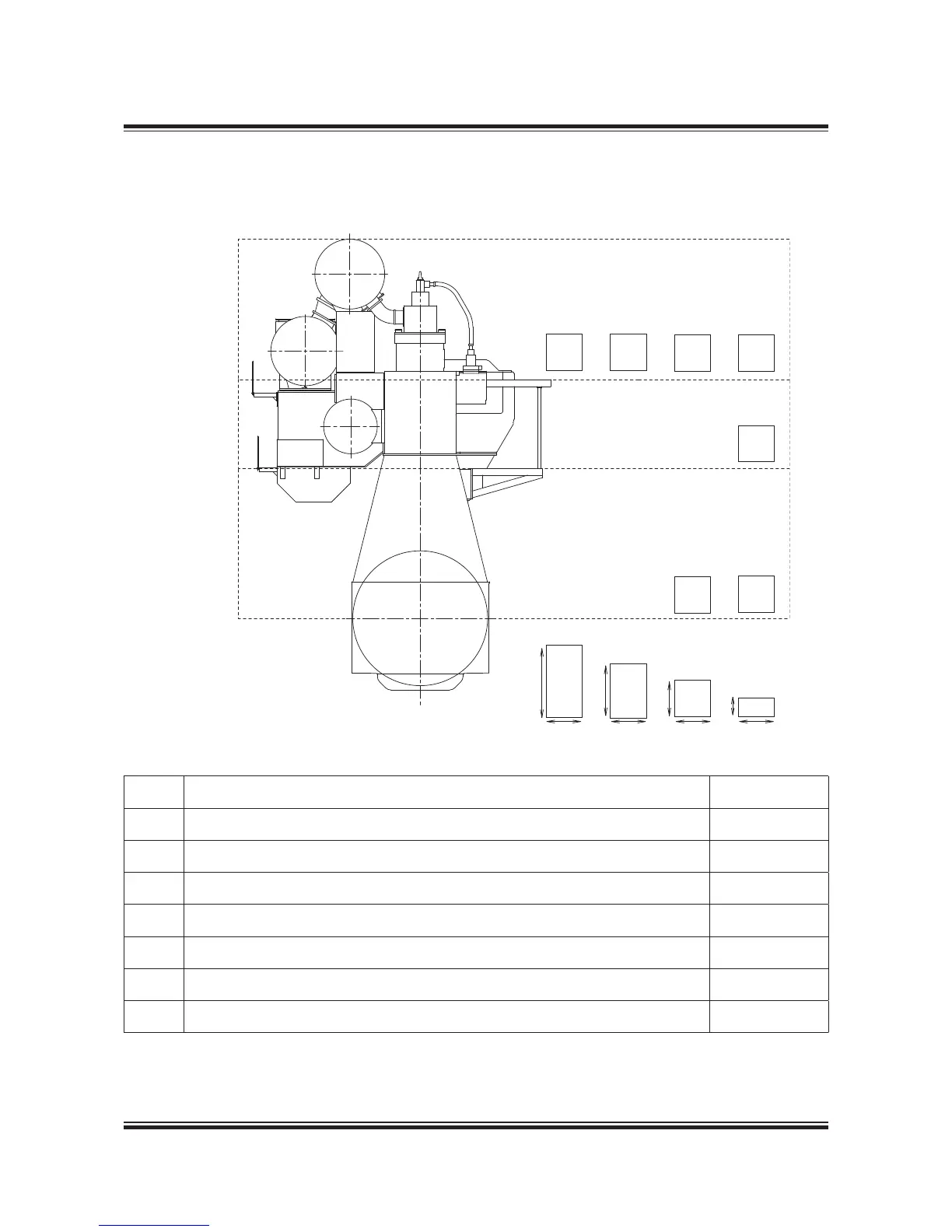

Fig. 19.11.01 Tool Panels. 4 88 660
Top Level
Middle Level
Bottom Level
219010 219014 219038 219042
219030
219022 219026
Proposal for placing of tool panels
900 900
900
900
450
1,350
1,800
900
Standard sizes of tool panels
178 61 53-0.0
Section Tool Panel
Total mass of tools
and panels in kg
21-9010
Cylinder Cover
Panel incl. lifting chains, grinding mandrels, extractor tools etc.
50
21-9014
Cylinder Unit Tools,
Panel incl. pressure testing tool, piston ring expander, stuffing box tools, templates etc.
150
21-9038
Exhaust valve Tools
Panel incl. grinding-, lifting-, adjustment- and test tools, etc.
40
21-9042
Fuel oil system Tools
Panel incl. grinding-, lifting-, adjustment- and assembly tools, etc.
50
21-9030
Control gear Tools
Panel incl. pin gauges, chain assembly tools, camshaft tools, etc.
60
21-9022
Crosshead and Connection rod Tools
Panel incl. suspension-, lifting tools, protection in crank case, etc.
70
21-9026
Crankshaft and Thrust bearing Tools
Panel incl. lifting-, testing- and retaining tools, etc.
60
