MAN Diesel 4.06
Page 2 of 3
MAN Diesel
MAN B&W S80MC/MC-C/ME-C, K80MC-C/ME-C, S70MC/MC-C/ME-C/ME-GI,
L70MC-C/ME-C, S65ME-C/ME-GI, S60MC/MC-C/ME-C/ME-GI/ME-B,
L60MC-C/ME-C, S50MC/MC-C/ME-C/ME-B, S46MC-C/ME-B, S42MC,
S40MC-C/ME-B, S35MC/MC-C/ME-B, L35MC, S26MC
198 42 054.5
L16/24 GenSet Data
Fig. 4.06.02a: List of capacities for L16/24 1,000 rpm, IMO Tier I. Tier II values available on request.
178 56 53-3.0
Cyl. 5 6 7 8 9
Max. continuous rating at 1,000 rpm
kW 450 540 630 720 810
Engine Driven Pumps:
H.T. cooling water pump (2.0 bar)** m
3
/h 10.9 12.7 14.5 16.3 18.1
L.T. cooling water pump (1.7 bar)** m
3
/h 15.7 18.9 22.0 25.1 28.3
Lubricating oil (3-5.0 bar) m
3
/h 21 23 24 26 28
External Pumps:
Diesel oil pump (5 bar at fuel oil inlet A1) m³/h 0.31 0.38 0.44 0.50 0.57
Fuel oil supply pump (4 bar discharge pressure) m³/h 0.15 0.18 0.22 0.25 0.28
Fuel oil circulating pump (8 bar at fuel oil inlet A1) m³/h 0.32 0.38 0.45 0.51 0.57
Cooling Capacities:
Lubricating oil kW 79 95 110 126 142
Charge air L.T. kW 43 51 60 68 77
*Flow L.T. at 36°C inlet and 44°C outlet m
3
/h 13.1 15.7 18.4 21.0 23.6
Jacket cooling kW 107 129 150 171 193
Charge air H.T kW 107 129 150 171 193
Gas Data:
Exhaust gas flow kg/h 3,321 3,985 4,649 5,314 5,978
Exhaust gas temp. °C 330 330 330 330 330
Max. allowable back press. bar 0.025 0.025 0.025 0.025 0.025
Air consumption kg/h 3,231 3,877 4,523 5,170 5,816
Starting Air System:
Air consumption per start Nm 0.47 0.56 0.65 0.75 0.84
Air consumption per start Nm 0.80 0.96 1.12 1.28 1.44
Heat Radiation:
Engine kW 11 13 15 17 19
Alternator kW (see separate data from the alternator maker)
The stated heat balances are based on tropical conditions, the flows are based on ISO ambient condition.

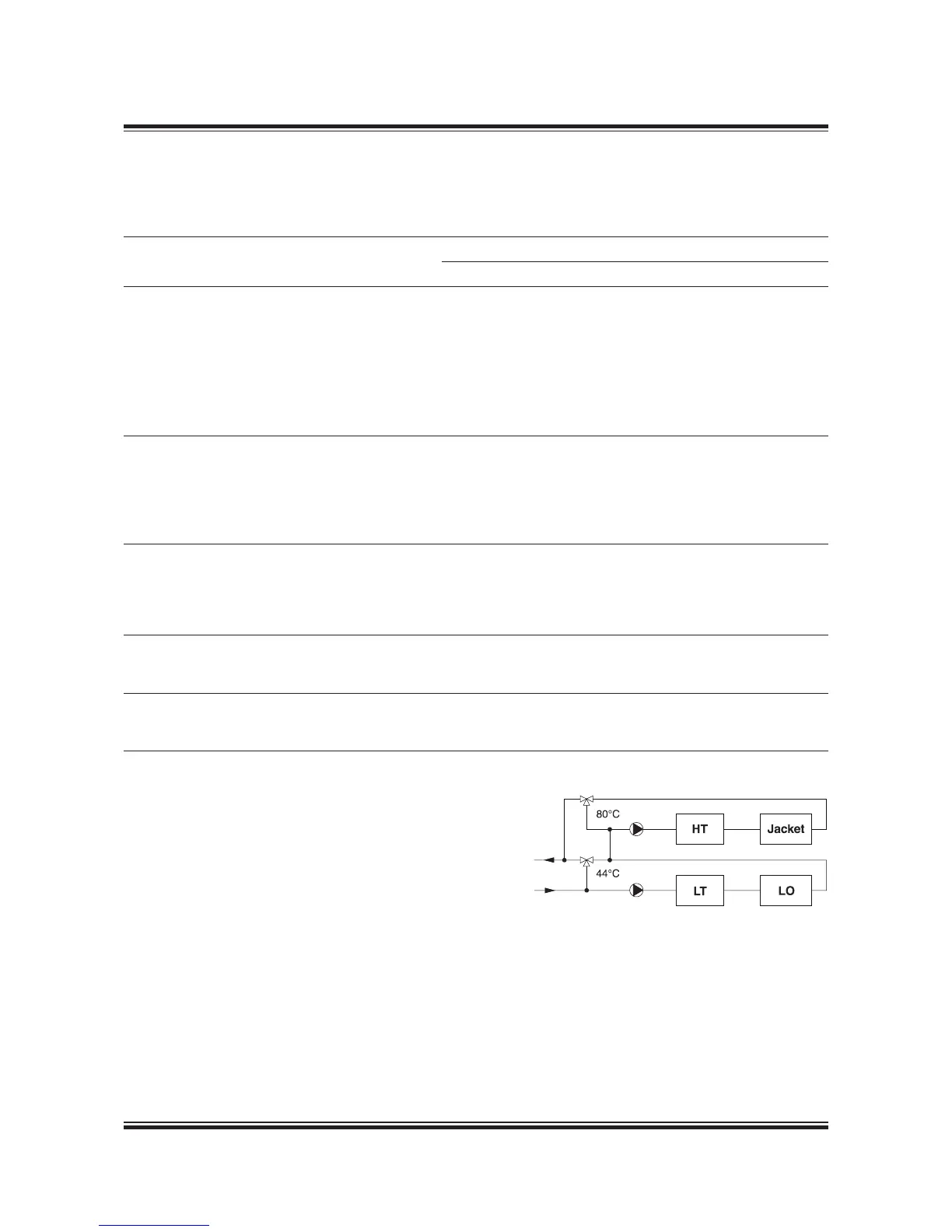

* The outlet temperature of the H.T. water is fixed to 80°C, and
44°C for L.T. water. At different inlet temperatures the flow will
change accordingly.
Example: if the inlet temperature is 25°C, then the L.T. flow will
change to (44-36)/(44-25)*100 = 42% of the original flow. If the
temperature rises above 36°C, then the L.T. outlet will rise ac-
cordingly.
** Max. permission inlet pressure 2.0 bar.
