MAN Diesel
MAN B&W S46MC-C, S42MC, S40MC-C,
S35MC-C, L35MC6
198 64 23-3.0
Pump Station and MAN B&W Alpha Cylinder Lubricators on Engine
Flow meter
F
Flow meter
F
*) If pump station is placed in engine room
DN15
Deck
Filling pipe
25mm nominal bore
Filling pipe
Service tank
for low BN
cylinder oil
Service tank
for high BN
cylinder oil
Storage tank
for low BN
cylinder oil
Storage tank
for high BN
cylinder oil
Inter lock
AC
AU
AC
AU
#)
#)
LS
DN32DN32
*)
*)
DN15
#) If pump station is placed on engine Pump
station
Min. 3,000mm
LS
Ship builder Ship builder
1) If required by the shipowner
1)1)

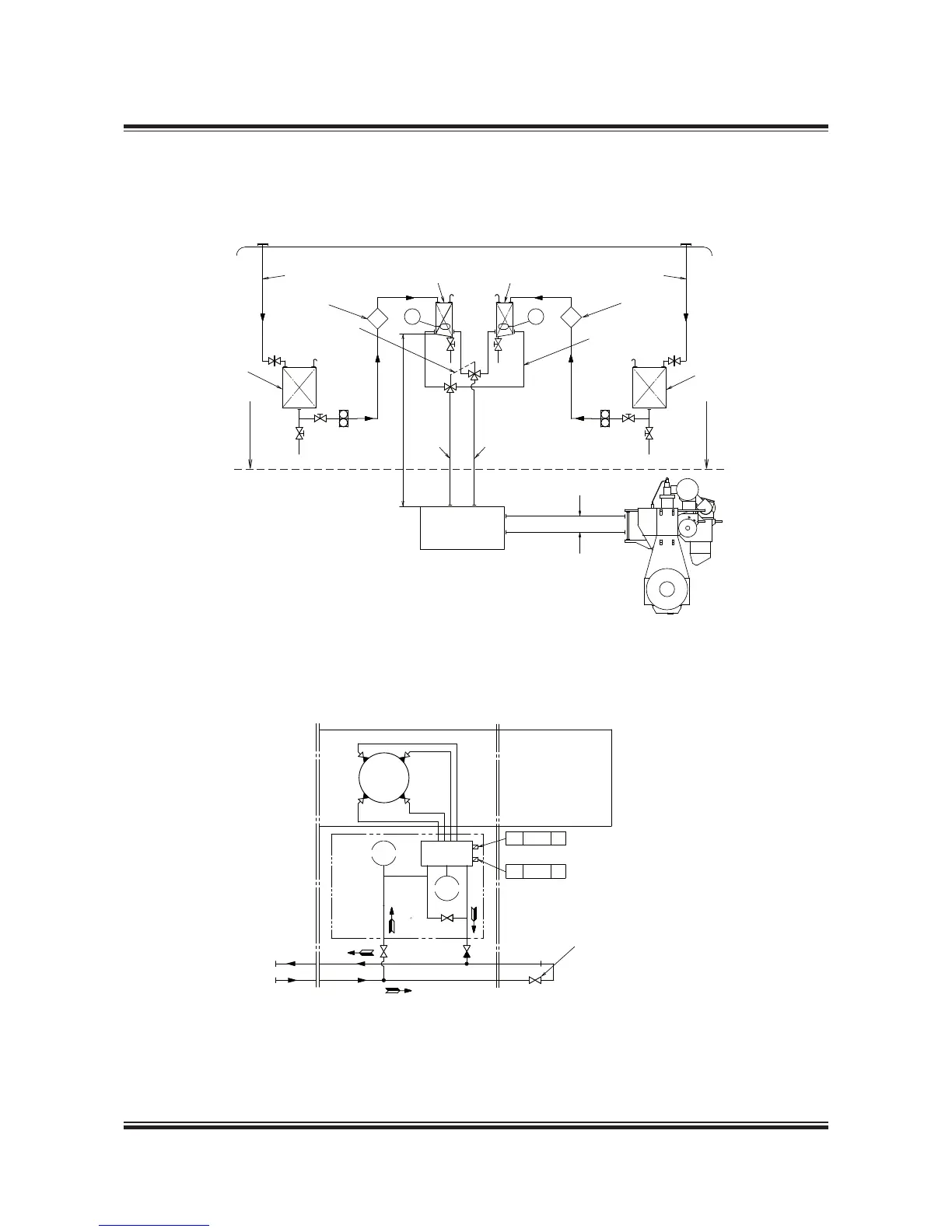

Fig. 9.02.03: MAN B&W Alpha cylinder lubricators with piping and instrumentation on engine
121 36 61-8.4.0d
AC
Accumulator Lubricator
Accu.
Cylinder
ZT 8203 C
ZV 8204 C Solenoid valve
Feedback sensor
AU
Circulation valve #)
The letters refer to list of ‘Counterflanges’
The item No. refer to ‘Guidance values Automation’
The letters refer to list of ‘Counterflanges’
The item No. refer to ‘Guidance values Automation’
#) In case of COLD engine room conditions, open the valve
to circulate and heat up the cylinder oil. The valve is then
to be closed before starting.
078 78 46-0.0.0c
Fig. 9.02.02: Cylinder lubricating oil supply system for two different BN oils
