P Series User Guide 118
0x2508
-
Notch Filter 3 Width
UINT
RW
No
Hz
0x2509
-
Notch Filter 3 Depth
UINT
RW
No
-
0x250A
-
Notch Filter 4 Frequency
UINT
RW
No
Hz
0x250B
-
Notch Filter 4 Width
UINT
RW
No
Hz
0x250C
-
Notch Filter 4 Depth
UINT
RW
No
-
Table 65. Notch Filter Related Objects
5.8.2 Adaptive Filter
Adaptive filter reduces vibration by automatically setting the notch filters by
performing real-time analysis on vibration frequency generated from the load during
drive operation through speed feedback signals.
One or two notch filters can be automatically set by detecting the vibration
frequency through frequency analysis. The frequency and width are automatically
set, and the set value is used for depth.
Position Control
Velocity Control
-
+
Inertia
Estimation
Vibration
Frequency
Measurement
Ref.
Position Feedback
Adaptive Filter
Current
Control
Motor
Encoder
Space
Vector
Control
PWM
Control
Velocity
Calculation
Velocity Feedback

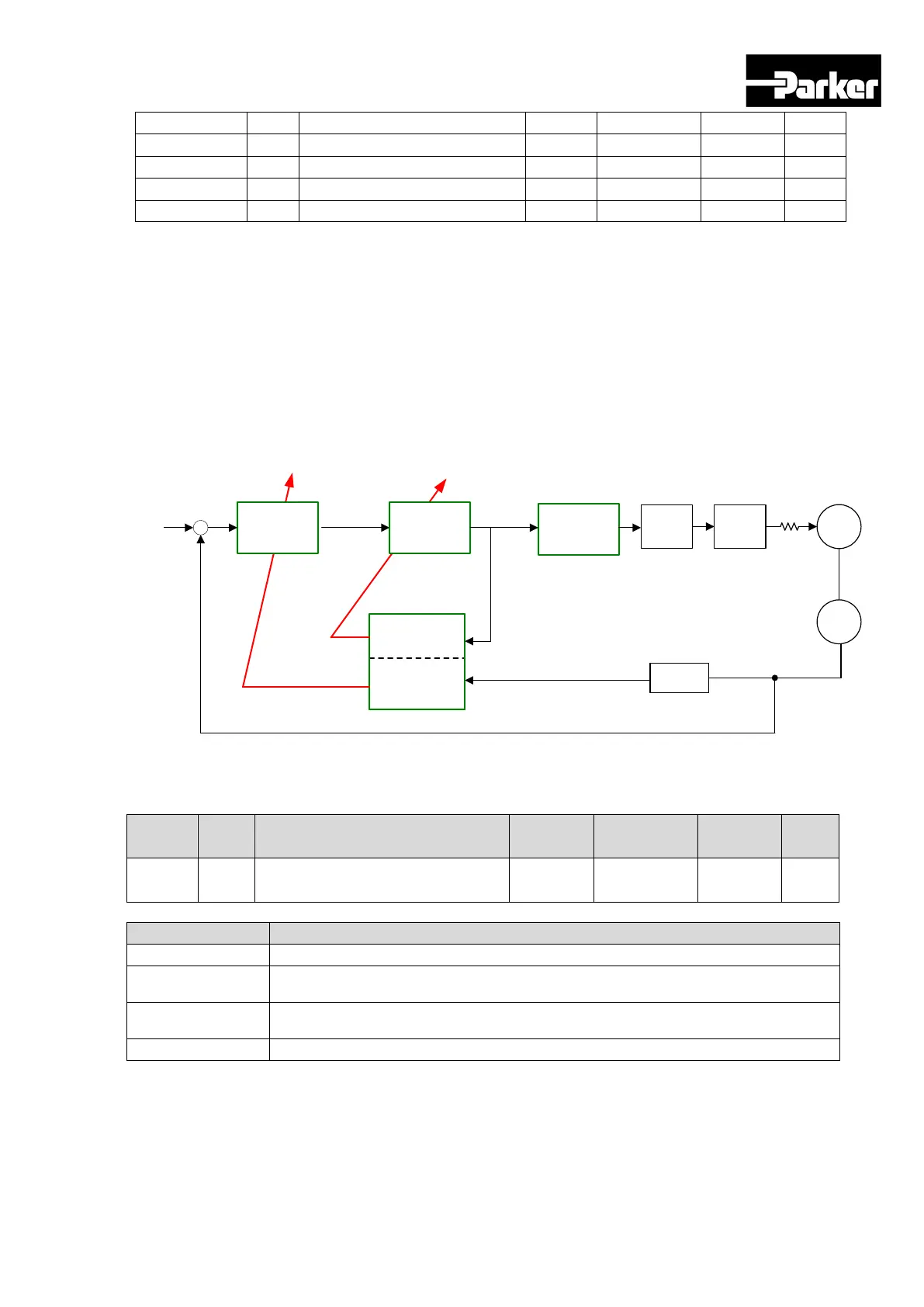

Figure 35. Adaptive Filter Diagram
5.8.3 Related Objects
Index
Sub
Index
Name
Variable
Format
Accessibility
PDO
Allocation
Unit
0x2500 - Adaptive Filter Function Select UINT RW No -
Set Value
Details
0
No adaptive filter
1
Uses only 1 adaptive filter. The automatically set values can be confirmed at
notch filter 4 setting (0x250A, 0x250B).
2
Uses only 2 adaptive filters. The automatically set values can be confirmed at
notch filter3 (0x2507, 0x2508) and notch filter 4 (0x250A, 0x250B) setting.
3~5
Reserved
Table 66. Adaptive Filter Related Objects
