P Series User Guide 193

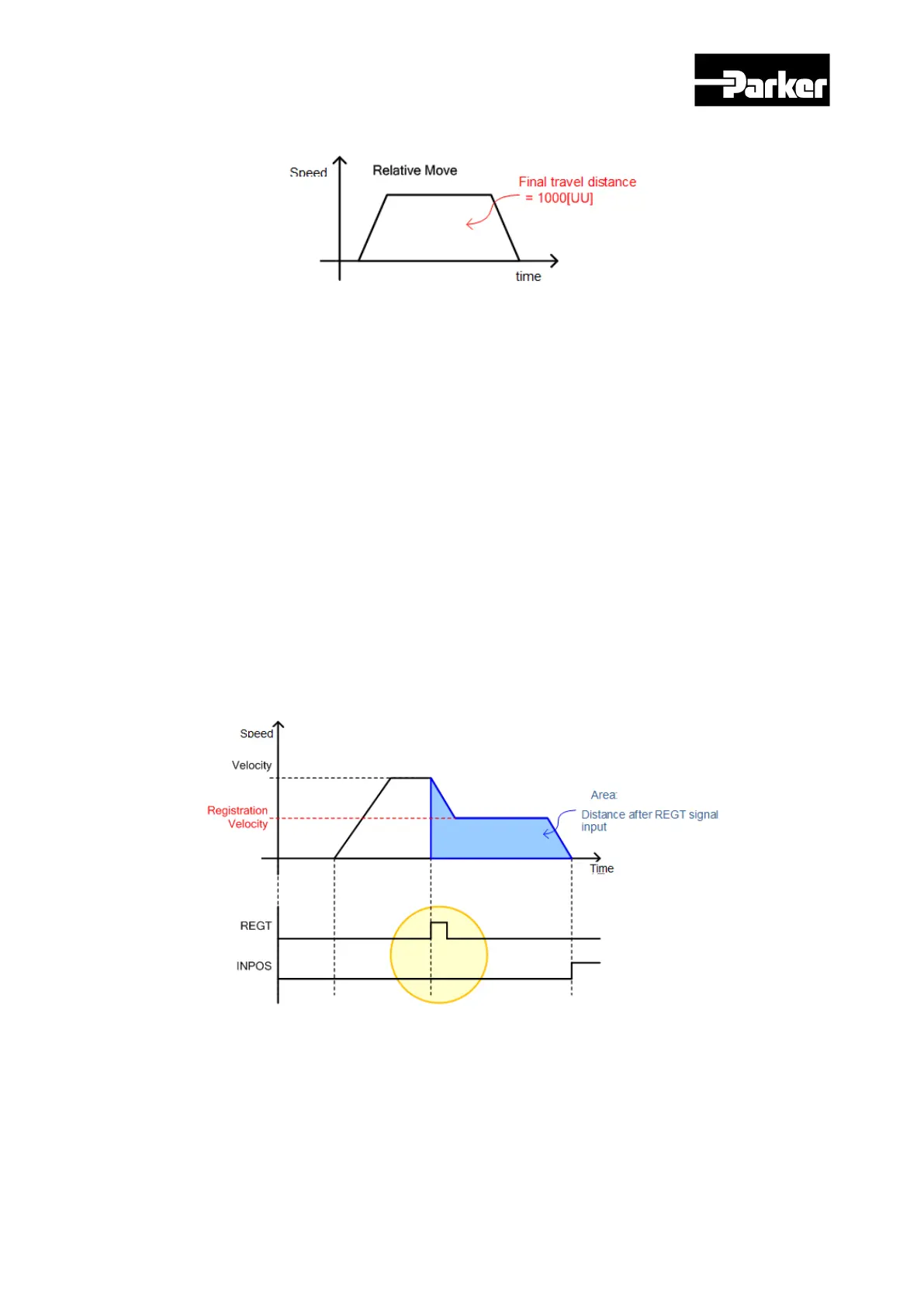

8.2.3 Registration Absolute and Relative Move
The operation speed and distance can be changed by REGT signal input from
outside. This function is similar to the motion pattern generation function of the VP-3,
out previous model.

Registration Absolute Move
Performs absolute move to the set value of the. The motor is rotated to the set
registration position at the set registration speed. The distance after REGT signal input
is the set registration distance
.
 Registration Relative Move
Performs relative move to the set value of the. The motor is rotated to the set
registration position at the set registration speed. The distance after REGT signal input
is the set registration distance
