P Series User Guide 135
-
10V
0
V
+10V
Voltage
Speed
Clamp setting speed
value

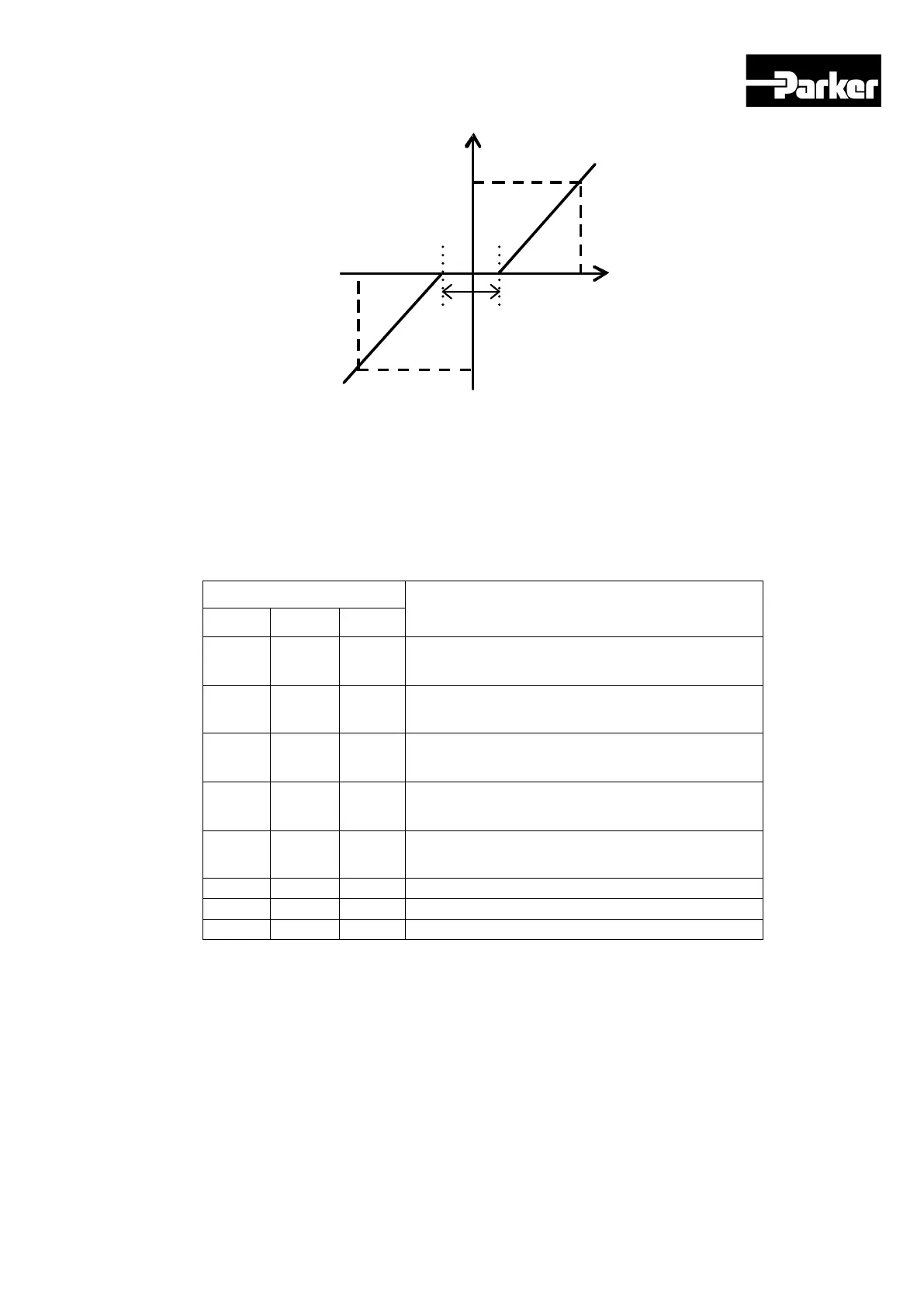

6.4.5 Digital Command Scale
When selected 1, 2, 3 in speed command switch, possible to use speed control by
Servo Drive digital speed command.
To use digital speed command, allocate digital input signal SPD1, SPD2, SPD3 in
I/O connector or control digital input signal SPD1, SPD2, SPD3 by communication.
Input Device
Speed
SPD1 SPD2 SPD3
X X X Speed command 1 (Parameter 0x2312)
O X X Speed command 2 (Parameter 0x2313)
X O X Speed command 3 (Parameter 0x2314)
O O X Speed command 4 (Parameter 0x2315)
X X O Speed command 5 (Parameter 0x2316)
O
X
O
Speed command 6 (Parameter 0x2317)
X
O
O
Speed command 7 (Parameter 0x2318)
O
O
O
Speed command 8 (Parameter 0x2319)
Table 77. Speed setting by Digital Input Signal
