P Series User Guide 37
3.4 Multiple Drive Installations
3.4.1 Drive Node Address Setting
You can set the address of the drive’s nodes. You can confirm the set addresses at
node ID (0x2003). The value of the node switch is read only once when the power is
turned on. The set value changed after that point applies when the power is turned on
again next time.

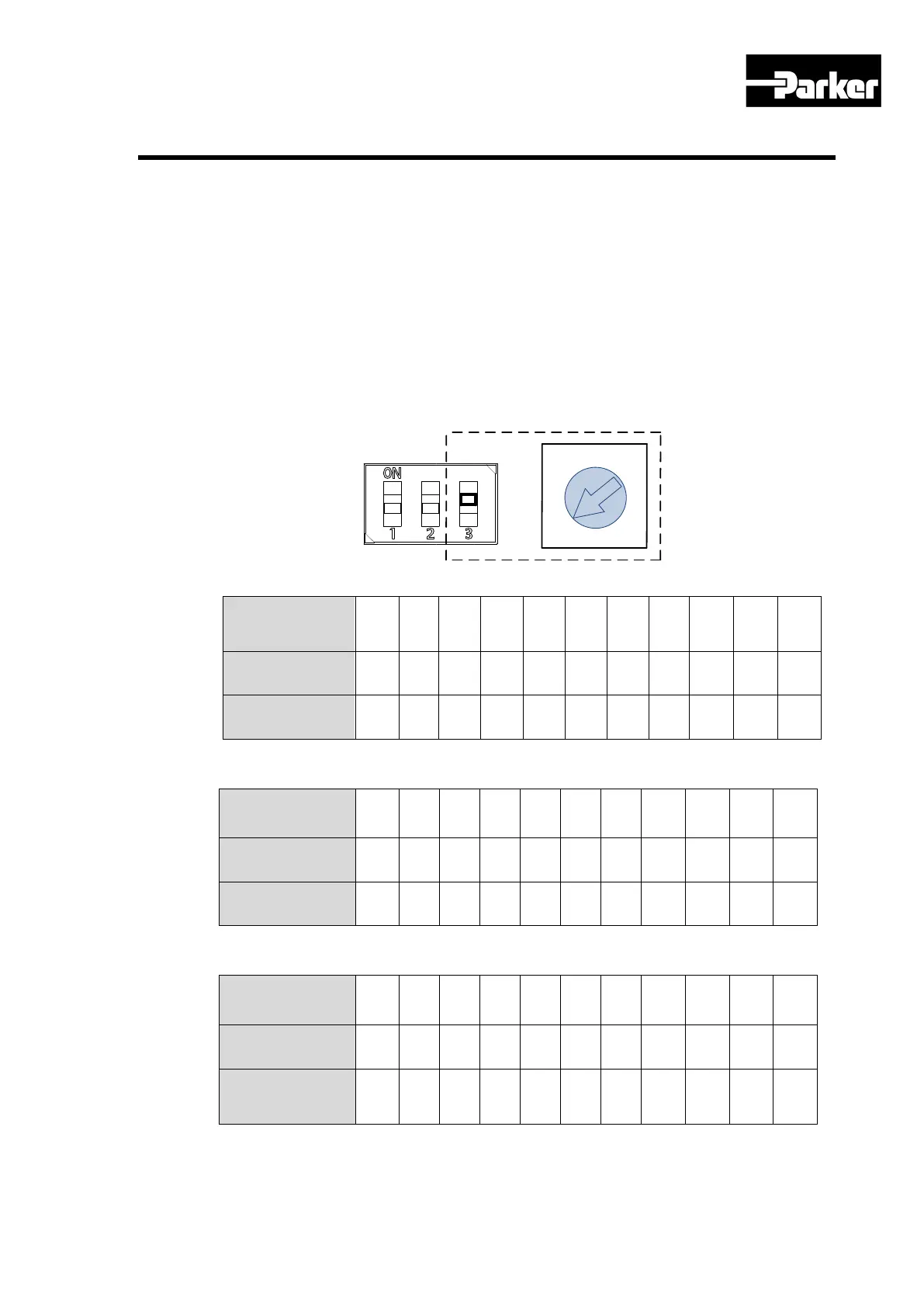

The node switch of this drive consists of a rotary switch capable of setting values from 0
to 15 (F) and toggle switches that can be turned On or Off. In total, you can set node
addresses from 0 to 31.
2
3
6
8
9
E
D
B
0
1
F
4
5
7
A
C
Rotary switch
setting
0 1 2 3 4 5 6 7 8 9 A
Toggle switch
setting
OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
Node address 0 1 2 3 4 5 6 7 8 9 10
Rotary switch
setting
B C D E F 0 1 2 3 4 5
Toggle switch
setting
OFF OFF OFF OFF OFF ON ON ON ON ON ON
Node address 11 12 13 14 15 16 17 18 19 20 21
Rotary switch
setting
6 7 8 9 A B C D E F
Toggle switch
setting
ON ON ON ON ON ON ON ON ON ON
Node address 22 23 24 25 26 27 28 29 30 31
Table 13. Drive Node Address Setting
