3.18
Engine/Cooling/Exhaust

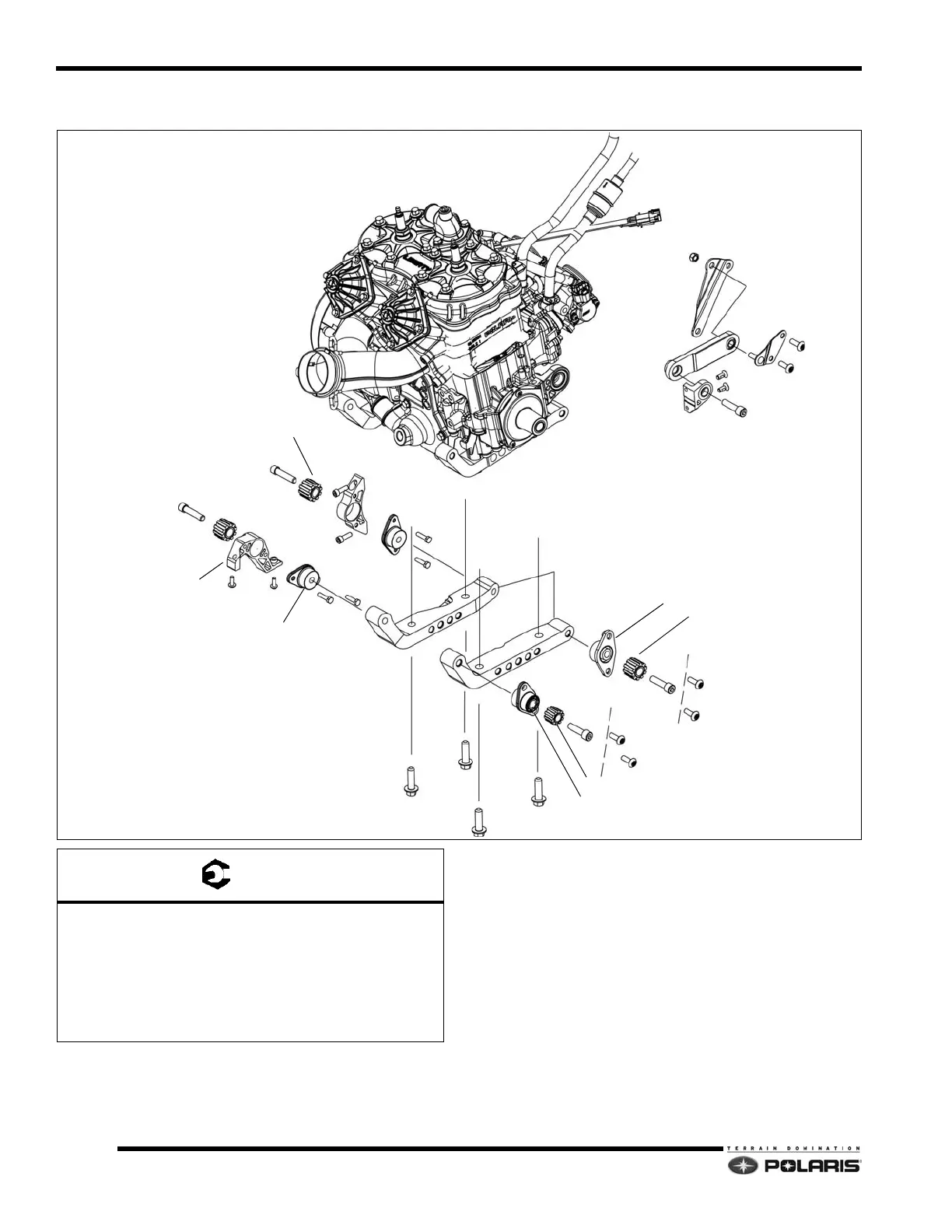

2011 800 Engine Mounting
Assembly Notes:
• ENGINE MOUNT BOLTS-Always clean engine
mo
unt strap threads with compressed air or
M10x1.5 tap before installing screw(s). Apply
Loctite® 243™ when using original bolt.
• To prevent the engine mount bolts from catching
on
the radial inserts, spray the inserts with rubber
lubricant or isopropyl before installing engine
mount fasteners.
• Replace lock nuts with new parts when removed.
A
MOUNT BRACKET
C
C
D
E
ENGINE ASSEMBLY
BRACKET
TORQUE LINK INNER
TORQUE LINK
TORQUE LINK OUTER
BRACKET
TORQUE LINK MOUNT
ENGINE MOUNTS
MOUNT BRACKET
MOUNT W/CLINCH NUT
MOUNT W/CLINCH NUT (PTO-SMALL)
RADIAL INSERT (SMALL)
MOUNT
MOUNT
RADIAL INSERT (LARGE)
E
E
E
C
C
B
B
A
A
A
E(NO Loctite®)
B
C
C
B
RADIAL INSERT (LARGE)
RADIAL INSERT (LARGE)
NOTE: SEE ENGINE MOUNT BOLT SERVICE REPLACEMENT KIT
A = 35 ft-lbs (48 Nm) Apply Loctite® 242™ to
threads.
B = 9 ft-lbs (12 Nm)
C = 26 ft-lbs (35 Nm)
D = 18 ft-lbs (24 Nm)
E = 30 ft-lbs (41 Nm) Apply Loctite® 242™ to
th
reads.
