Battery and Electrical Systems
Changing Units
The instrument cluster will display either standard or
metric units. Change between the two by following these
steps:
1. Press and release the MODE button o
n the cluster or
left hand control to display the engine temperature on
the rider information screen.
2. While in the engine temperature display, press and
ho
ld the MODE button to change units.

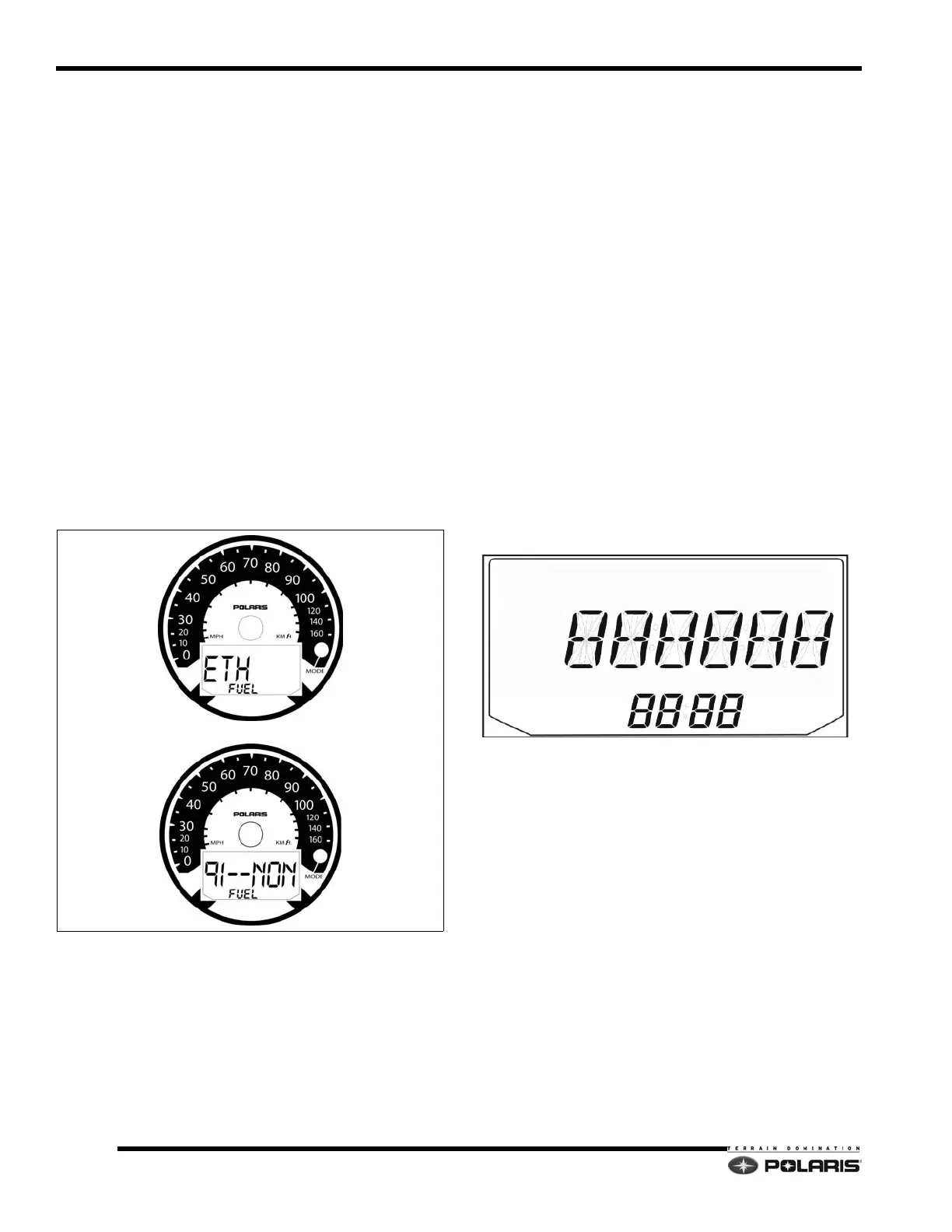

Fuel Selector
1. Start the engine.
2. Lock the parking brake.
3. Press and release the MODE button on the left
h
andlebar control until either “ETH” or “91--NON” is
displayed on the instrument cluster.
4. Press and hold the MODE button on the left handlebar
con
trol to change between fuel settings.
Analog/Digital IC Error Code Display
Active diagnostic trouble codes can be reviewed by
accessing the instrument cluster’s diagnostic display
mode.
The diagnostic display mode is accessible when a trouble
c
ode is active (MIL illuminated) and when the engine is
running.
1. Keep the engine running, and set the parking brake.
2. With the engine running
and the MIL illuminated,
press and release the MODE button to toggle to the
diagnostic display mode. If an error code exists, two
numbers will appear in the display and the MIL will
flash.
3. A set of two numbers will appear in the display.
• The 2-6 digit suspect parameter number (SPN) in
the in
formation display area indicates which
component is generating the fault code.
• The 1-2 digit failure mode indicator (FMI) number
in the od
ometer area indicate the fault mode, such
as open or short circuit.
4. More than one fault may be active. Press and hold the
MO
DE button or MODE switch for two seconds to
toggle to the next active code. Repeat until all codes
are retrieved.
5. Press and release the MODE button to exit this mode.
NOTE: “SPN=” and “FMI=” are not displayed on
scr
een.
