6.6
PVT System

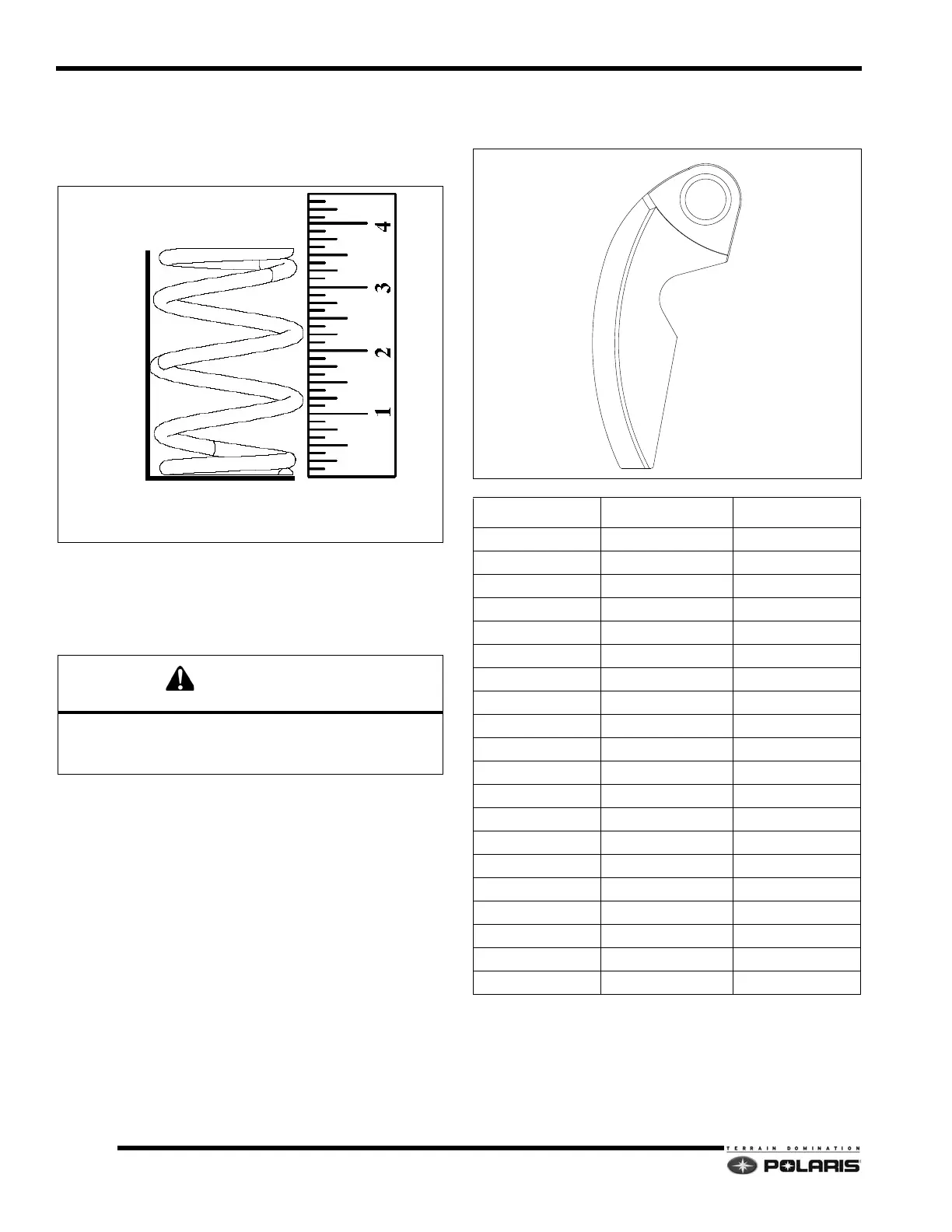

Spring Free Length
Measure the drive and driven spring free length with the
spring resting on a flat surface. Replace spring if out of
specification.
In addition to proper free length, the spring coils should be
p
arallel to one another when placed on a flat surface.
Distortion of the spring indicates stress fatigue.
Replacement is required.
Drive Clutch Weights
10 Series Weights
Never shim a drive clutch spring to increase its
compression rate. This may result in complete stacking
of the coils and subsequent clutch cover failure
VERIFY SPRING COILS ARE PARALLEL
COILS ARE NOT DISTORTED/CRACKED
WEIGHT GRAMS(+/- 1gr.) PART NUMBER
10M - R 44 1321530
10M - W 46 1321527
10M - B 47.5 1321529
10M 49.5 1321528
10 51 1321526
10A - L 52.3 1321531
10-54 54 1321685
10A 55 1321589
10-56 56 1321684
10-58 58 1321588
10-60 60 1321587
10-62 62 1321586
10-64 64 1321585
10-66 66 1321584
10-68 68 1322427
10-70 70 1322414
10-72 72 1322428
10-74 74 1322429
10-76 76 1322585
10-78 78 1322586
