8.65
Steering and Suspensions
8

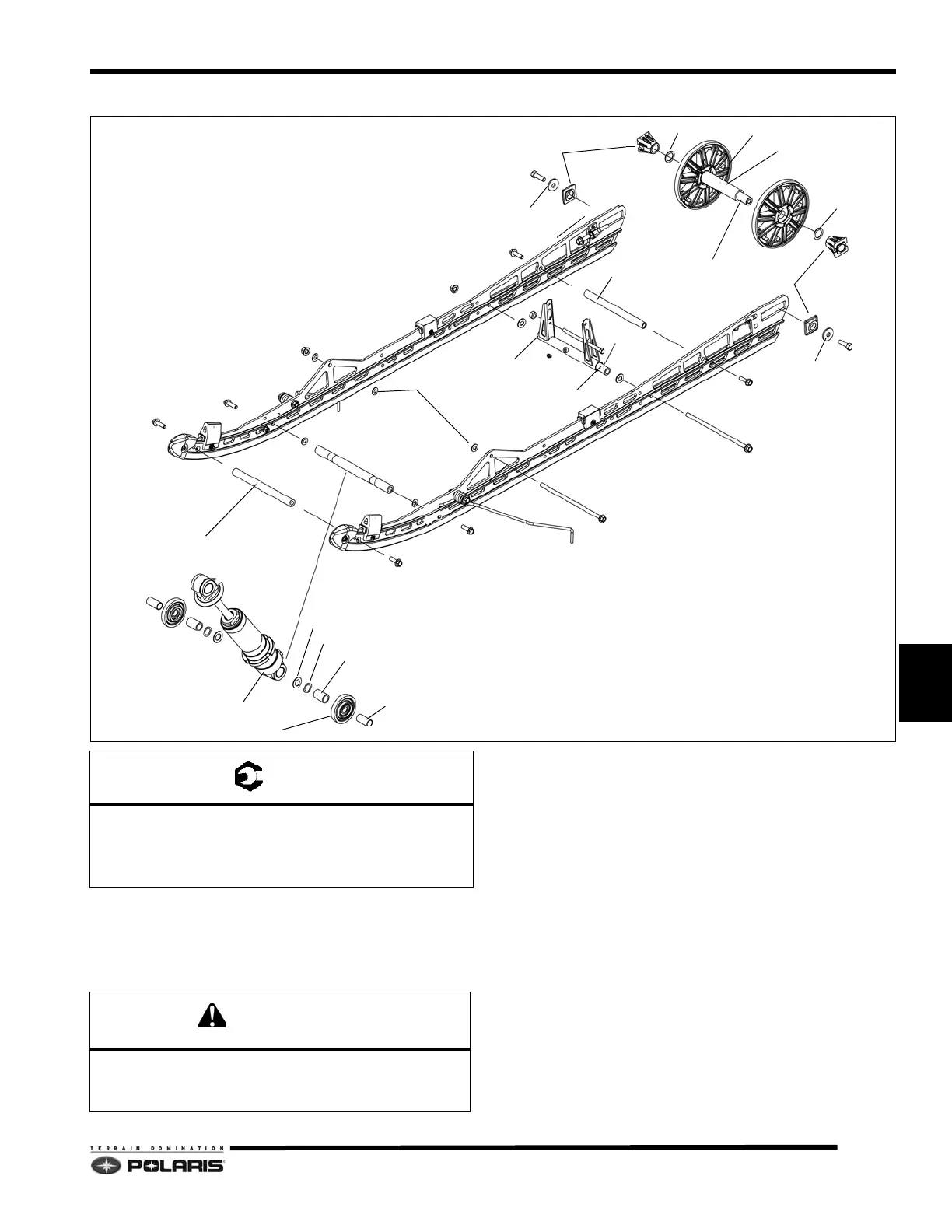

2013 PRO RMK 155/163 Pivots/Rear Idler
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
= T
A: 33 ft-lbs (44.7 Nm) - Apply Loctite® 262™
B: 46 ft-lbs (63 Nm)
C: 33 ft-lbs (44.7 Nm)
D: 6 ft-lbs (8 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
LIMITER STRAP SHAFT
WASHERS
SHOCK SHAFT
INNER SHAFT
REAR PIVOT
BRACE SHAFT
IDLER WHEEL
INNER SHAFT
SPACER
WASHER
WASHER
WASHER
WASHER
IDLER SPACER
IDLER SPACER
A
A
B
B
C
C
C
METRIC FASTENERS
FRONT TRACK SHOCK
WASHER
WAVE WASHER
INSIDE SPACER (37.6MM)
OUTSIDE SPACER (41MM)
BOGIE WHEEL
C
C
C
D
