4.26
Cleanfire Fuel Injection
Fuel Rail Microdampers
The DC-CFI-2 fuel rail assembly contains two fuel
pressure microdampers. The microdampers suppress
fuel pressure pulses that occur when each fuel injector is
activated.
The microdampers are considered “life of engine”
com
ponents and servicing is not recommended. If a
microdamper is removed, apply a light film of two-stroke
engine oil to the o-ring during installation.
Torque clamp fasteners to specification.
NOTE: A threaded plug is located on the MAG end of
ra
il. Do not remove plug.
A: 3.3 ft-lbs (4.5 Nm) Apply Loctite 243® to threads.

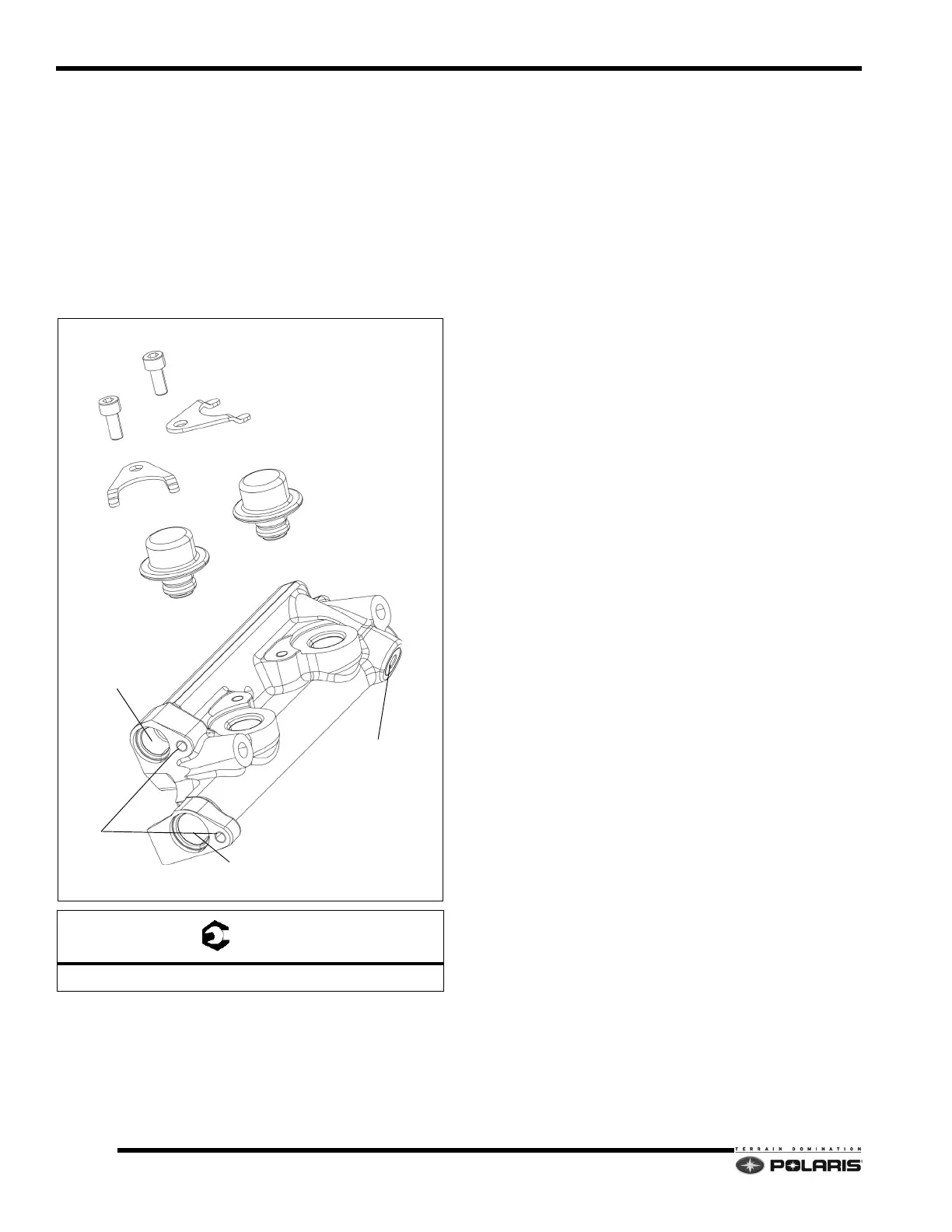

FUEL RAIL
MICRODAMPERS w/O-RINGS
CLAMPS
A
PLUG
FUEL SUPPLY
FUEL RETURN
A
