8.39
Steering and Suspensions
8

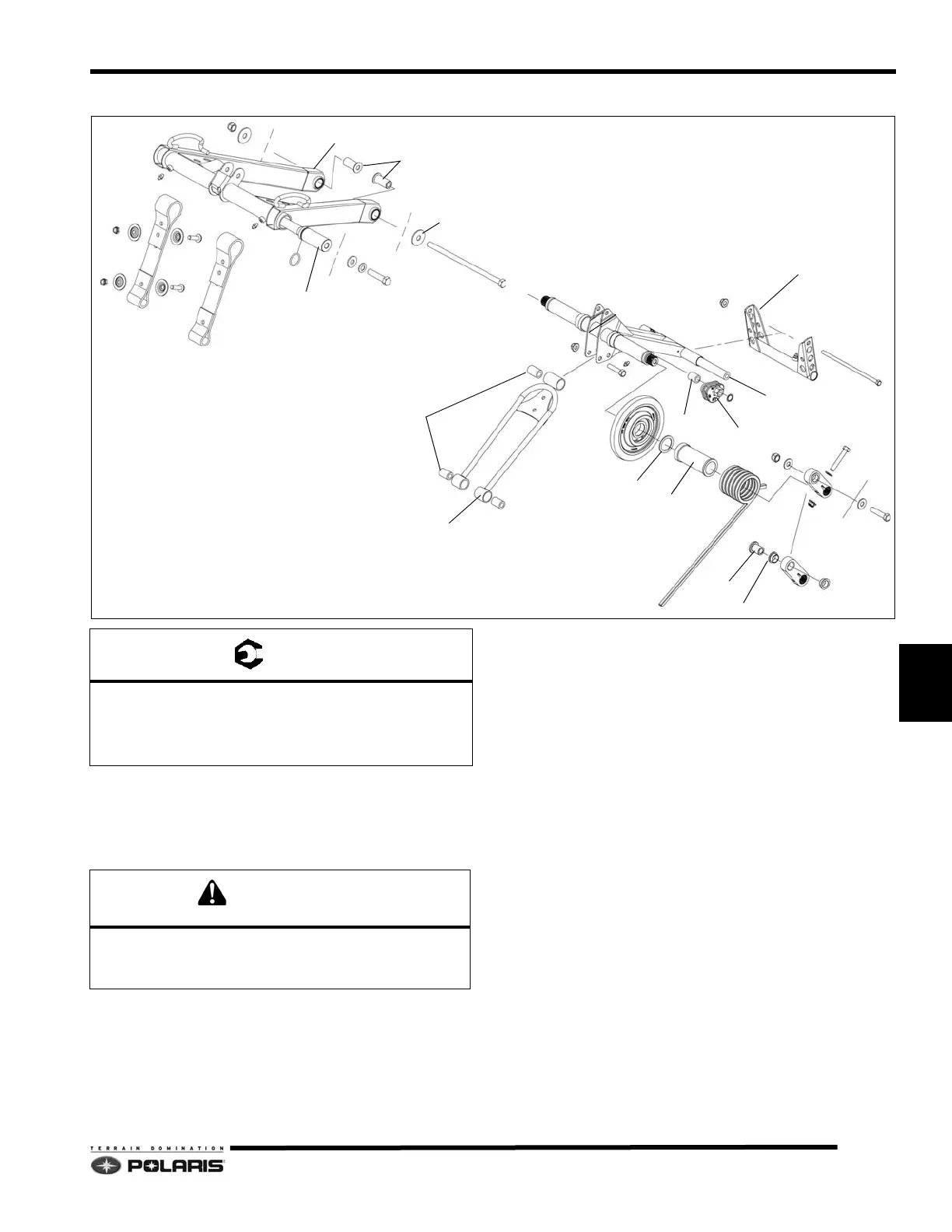

INDY 121 Conventional Front/Rear Torque Arm
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
A: 60 ft-lbs (81 Nm)
B: 50 ft-lbs (68 Nm)
C: 12 ft-lbs (16 Nm)
D: 35 ft-lbs (47.4 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
CARRIER WHEEL
INNER SHAFT
FRONT TORQUE ARM
SHAFTS
SPACER
BUSHINGS
A
C
B
TORSION SPRING
SPRING ADJUSTER
SHOCK ROD
INNER SHAFT
REAR PIVOT
D
STANDARD FASTENERS
INSTALL PLATE POINTED DOWN
LIMITER STRAP
WASHER
O-RING
ARM
BUSHING
BUSHING
FLANGE SHAFT
CLIP
SLEEVE
WASHER
C
A
A
D
D
