8.38
Steering and Suspensions

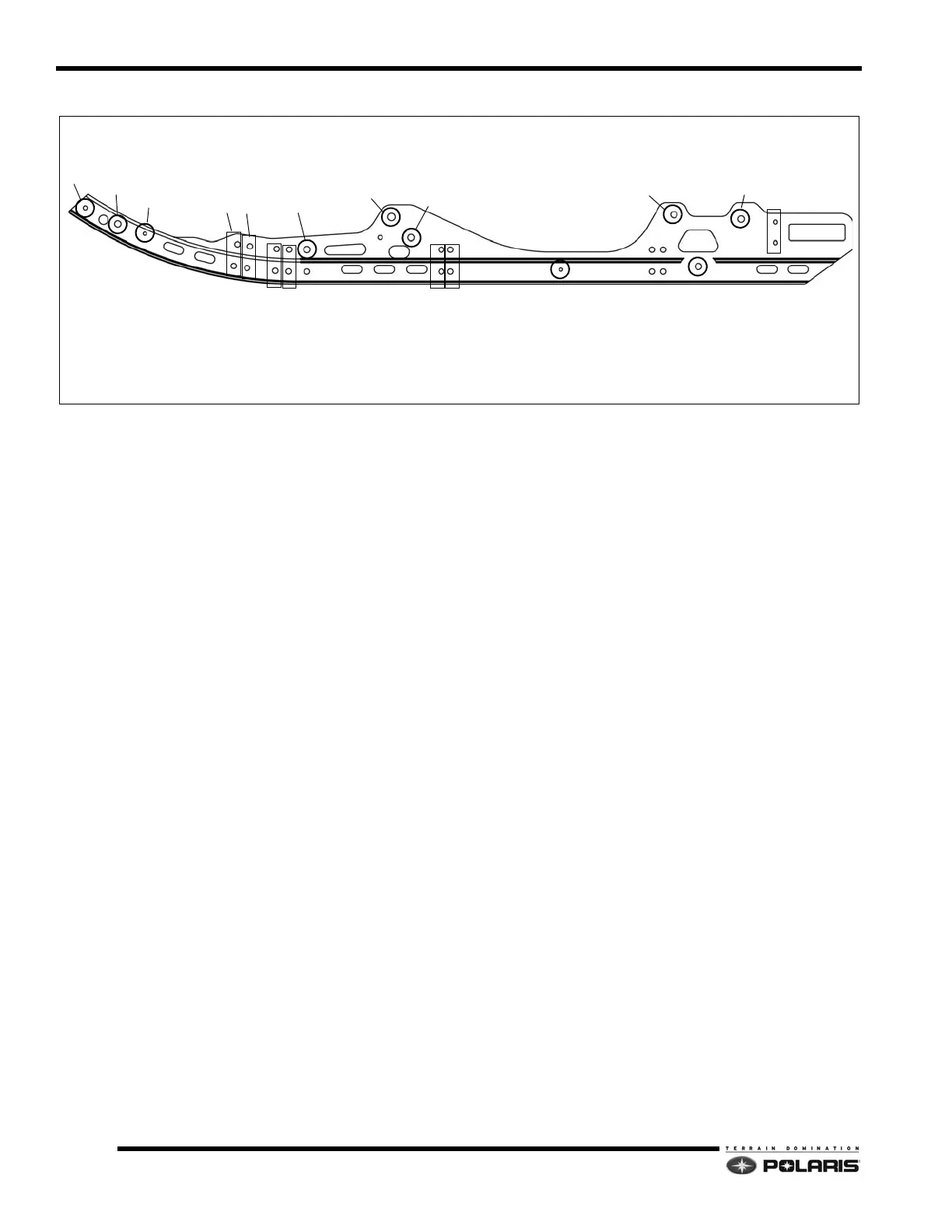

INDY 121 Conventional Rail Fastener Locations
Components/Fasteners:
• A - Rail Tip
• B - Limiter Strap Shaft
• C - Rail Bumper
• D - Optional Bogie Wheel Asm. (Mount to inside of right rail).
• E - Optional Bogie Wheel Asm. (Mount to inside of left rail).
• F - Bogie Wheel Asm. (Mount to outside of right rail).
• G - Bogie Wheel Asm. (Mount to outside of left rail).
• H - H Bracket Mount
• I - Front Torque Arm Mount
• J - Spring Roller Mount
• K - Bogie Wheel Asm. (Mount to outside of left rail).
• L - Bogie Wheel Asm. (Mount to outside of right rail).
• M - Rail Bumper
• N - Rear Pivot Mount
• O - Front-Rear Scissor Stop (FRSS)
• P - Rear-Rear Scissor Stop (RRSS)
• Q - Rear Idler Adjuster Block Mount
LEFT RAIL SHOWN
A
B
C
D E
FG
H
I
J
KL M N
O
P
Q
