Steering and Suspensions

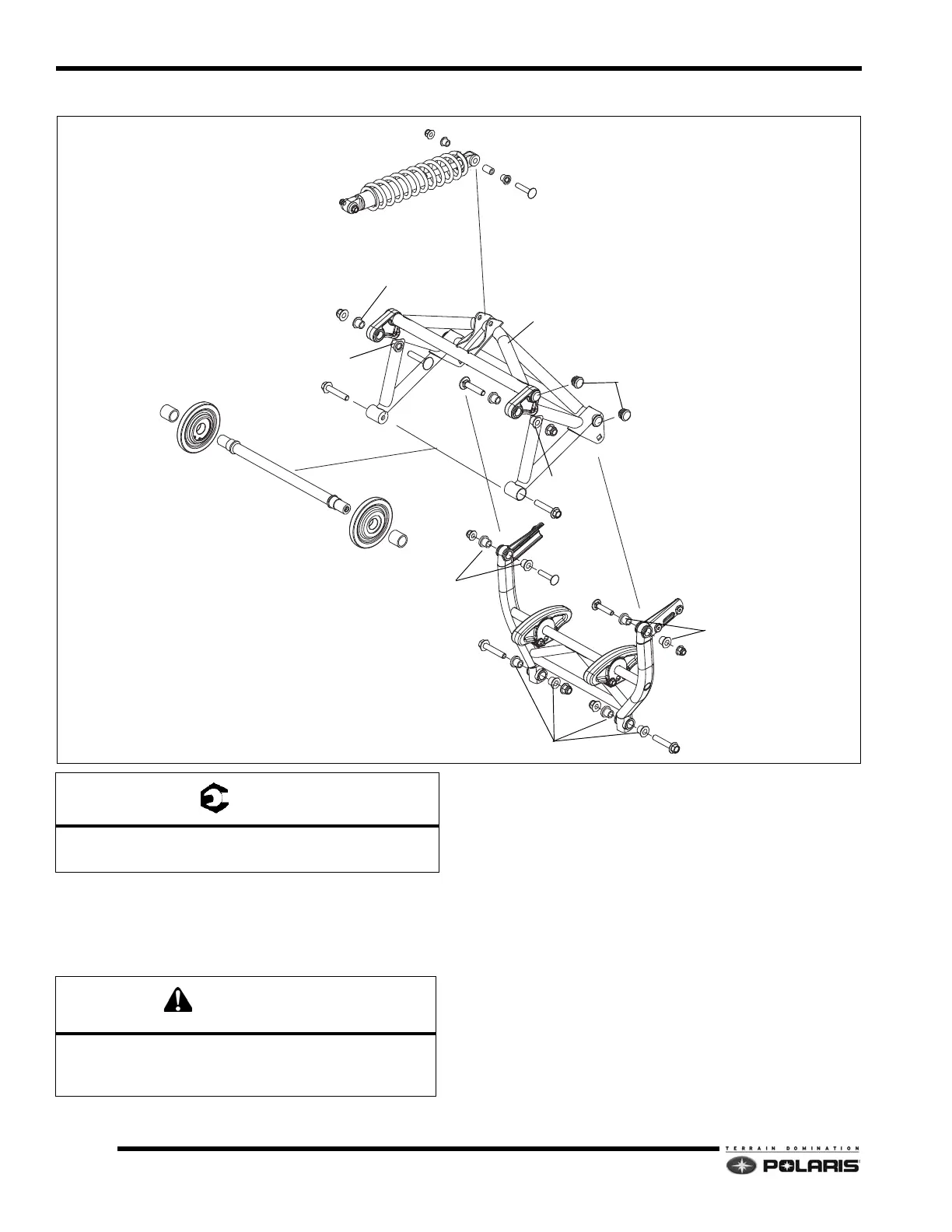

2010 Progressive 120 Rear Crank/Rear Scissor Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
= T
A: 33 ft-lbs (45 Nm)
B: 60 ft-lbs (80 Nm)
CAUTION
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
REAR TRACK SHOCK
REAR CRANK
UPPER CARRIER WHEEL ASM.
REAR PIVOT
PLUGS
BUSHING
BUSHINGS
BUSHINGS
BUSHINGS
A
A
BUSHING
BUSHING
B
B
A
A
B
B
