4.33
Cleanfire Fuel Injection
4
Rush/Switchback Fuel Pump Pickup Orientation
When servicing the Rush fuel pump pickup assembly or troubleshooting an issue with a stuck low fuel gauge display on
the MFD gauge, verify the pickup assembly is orientated as shown in the MY11-current Pickup Assembly illustration
below.
NOTE: Model year 2010 Rush fuel pump assembly service part
s feature the rotated fuel pickup assembly.

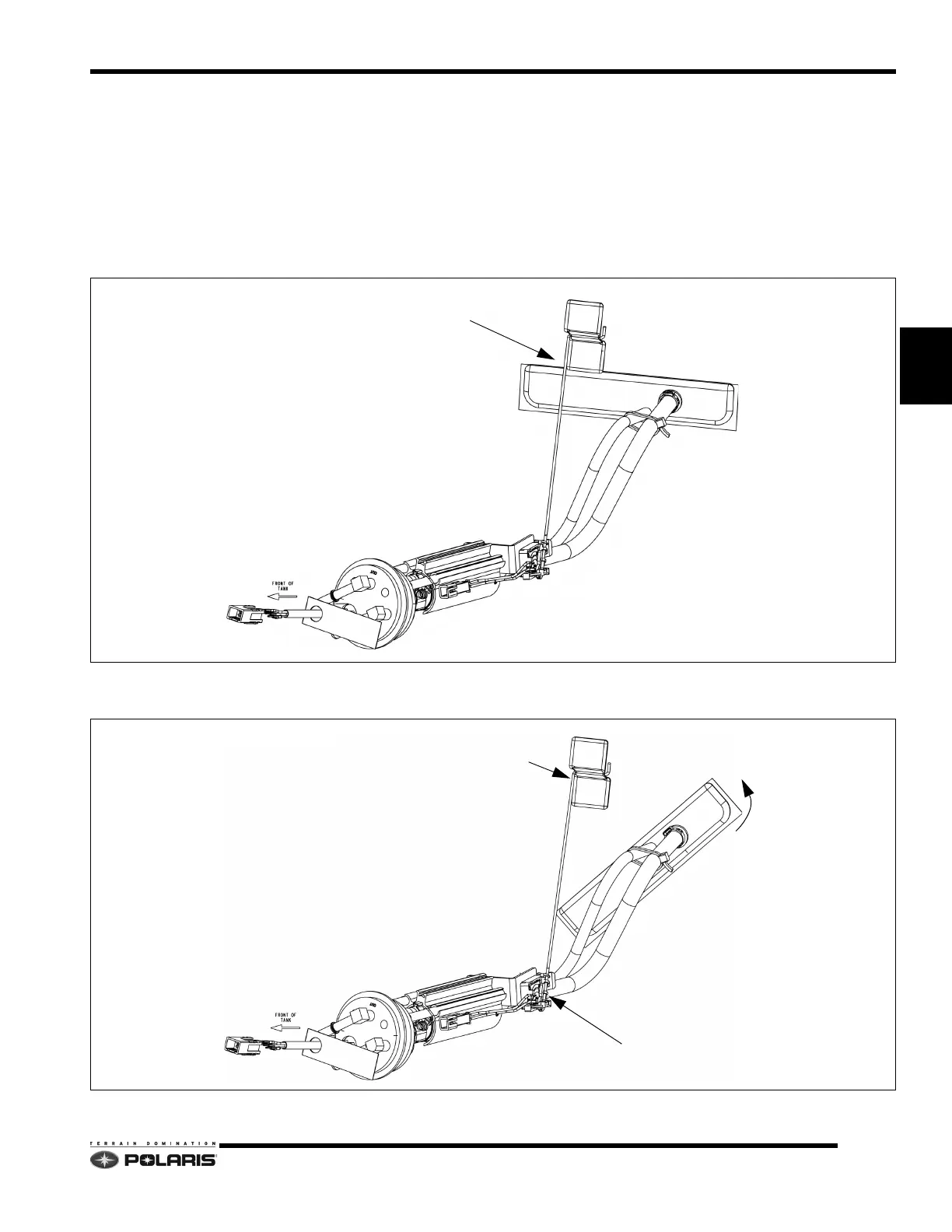

MY10 Rush Pickup Assembly:
MY11-Current Rush Pickup Assembly:
PICKUP ASSEMBLY MAY INTERFERE
WITH FUEL SENDER FLOAT
PICKUP ASSEMBLY ROTATED
45 DEGREES
FUEL SENDER FLOAT CLEAR FROM
PICKUP ASSEMBLY
ROTATE BOTH HOSES BEFORE INSTALLING
CLAMPS
