8.67
Steering and Suspensions
8

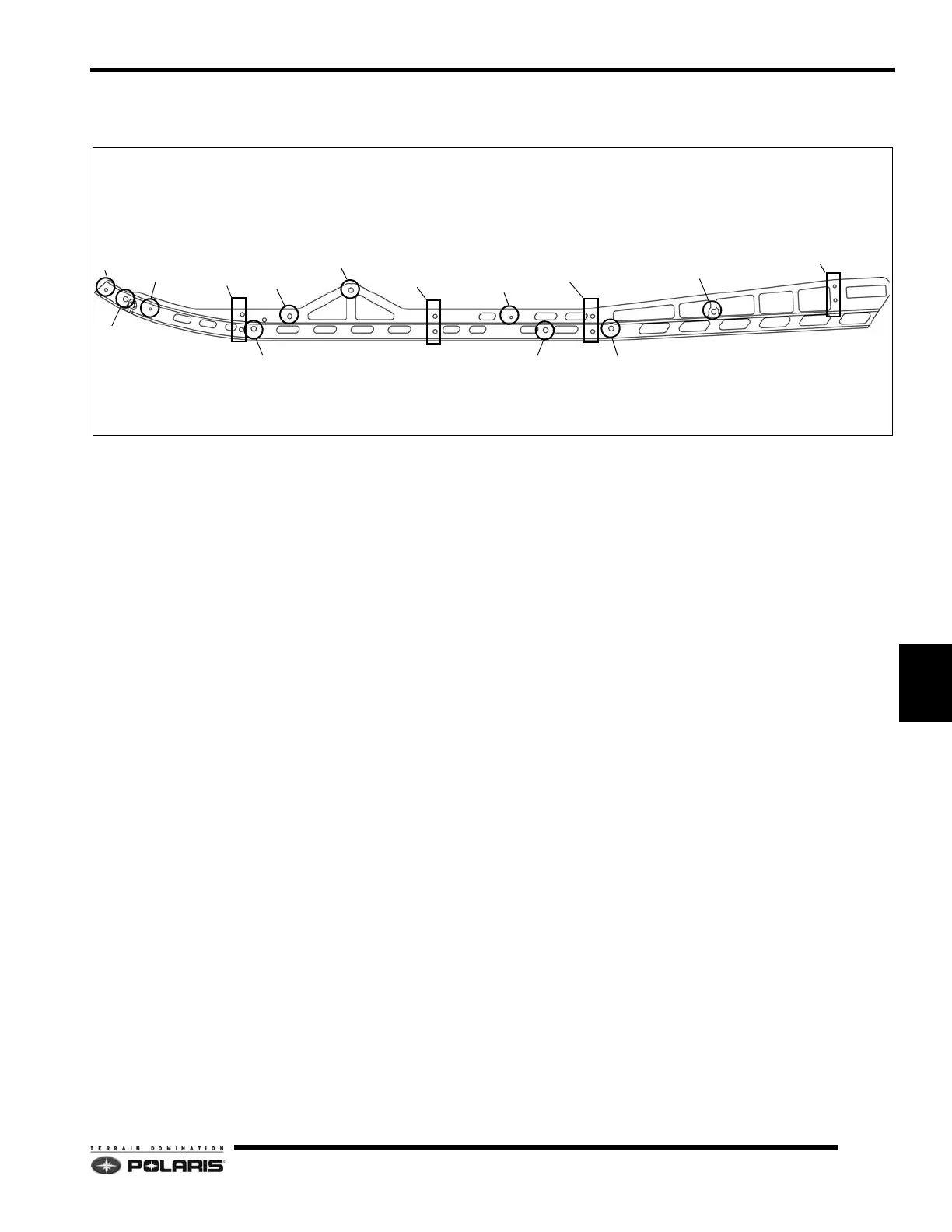

RMK/PRO Ride RMK 155/163 Rail Fastener
Locations
NOTE: 163 Rail Shown. 155/155 Assault Similar
Components/Fasteners:
• A - Rail Tip
• B - Limiter Strap Shaft
• C - Rail Bumper
• D - Bogie Wheel Asm. (Mount to outside of rail)
• E - Front Shock Shaft
• F - Scratchers (Optional on 800 RMK)
• G - Front Torque Arm Shaft/Screw
• H - Bogie Wheel Asm. (Standard on 800 RMK.
O
ptional for all other models. Mount to inside of
rail on all models except for 800 RMK Assault)
• I - Rail Bumper
• J - Rail Brace Shaft/Screws (Standard on 800
RMK Assault)
• K - Bogie Wheel Asm. (Standard on 800 RMK.
O
ptional for all other models. Mount to outside of
rail)
• L - Rear Scissor Shaft/Screw
• M - Rail Brace Shaft/Screws
• N - Rear Idler Adjuster Block
IMPORTANT: RMK Assault Mode
ls - If installing
accessory bogie wheels, the wheels MUST be
installed on the outside of the rails at location (H) and
the scratchers must be removed.

Damage to the front track shock reservoir will occur if
t
he accessory bogie wheels are installed on the inside
of the rail.
A
B
C
D
E
F
G
H
K
M
J
L
I
N
LEFT RAIL SHOWN
