Polaris 800 RMK ASSAULT 2011 User Manual

4.14
Cleanfire Fuel Injection

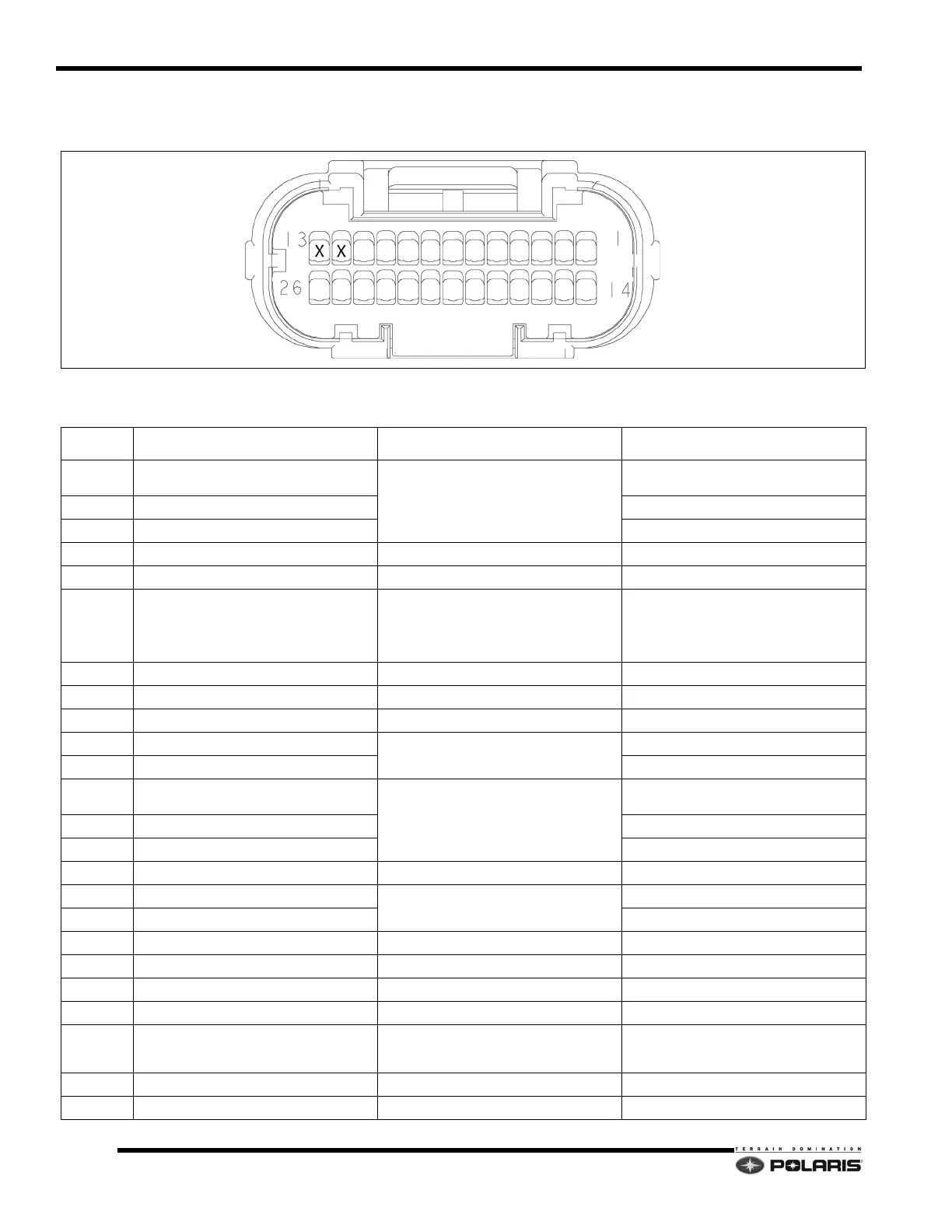

ECU 26 Pin Connector (Engine)
NOTE: Wire Entry View
PIN COLOR GOES TO CONNECTOR FUNCTION
1 DARK BLUE
FUEL INJECTOR HARNESS PLUG
PTO CRANKCASE INJECTOR DRIVER
(DC-CFI-4)
2 DARK BLUE/WHT PTO CYLINDER INJECTOR DRIVER
3 RED/DARK BLUE FUEL INJECTOR POWER SUPPLY (16 VDC)
4 DARK GREEN 5 TOOTH CPS SENSOR SENSOR SIGNAL
5 WHT/GRN (2011=BRN/WHT) STATOR CPS HARNESS CONNECTOR SENSOR GROUND
6 BLK/BLU
TPS CONNECTOR
EXHAUST TEMP. SENSOR
COOLANT TEMP. SENSOR
TMAP SENSOR CONNECTOR
COMMUNICATION CONNECTOR
SENSOR GROUND
7 AQUA TPS CONNECTOR TPS SIGNAL RETURN
8 YEL/RED COOLANT TEMP. SENSOR COOLANT TEMP. SIGNAL
9 BLK/WHT DETONATION SENSOR SIGNAL GROUND
10 YEL/WHT
COMMUNICATION CONNECTOR
TxD SIGNAL (TRANSMIT)
11 WHT/BLK RxD SIGNAL (RECEIVE)
14 YELLOW
FUEL INJECTOR HARNESS PLUG
MAG CRANKCASE INJECTOR DRIVER
(DC-CFI-4)
15 YEL/WHT MAG CYLINDER INJECTOR DRIVER
16 RED/BLU FUEL INJECTOR POWER (16 VDC)
17 WHITE 2 TOOTH CPS SENSOR SENSOR SIGNAL
18 RED
IGNITION COIL CONNECTOR
COIL POWER
19 BLACK COIL GROUND
20 GRAY TMAP SENSOR CONNECTOR INTAKE PRESSURE SIGNAL
21 ORANGE STATOR SYSTEM POWER CONNECTOR FUEL INJECTOR BOOST POWER
22 WHT/BLK EXHAUST TEMP. SENSOR EXHAUST TEMP. SIGNAL
23 PINK TMAP SENSOR CONNECTOR INTAKE AIR TEMP. SIGNAL
24 RED/WHT
TPS CONNECTOR
TMAP SENSOR CONENCTOR
COMMUNICATION CONECTOR
5VDC SENSOR VOLTAGE
25 PURPLE DETONATION SENSOR SENSOR SIGNAL
26 ORANGE STATOR SYSTEM POWER CONNECTOR FUEL INJECTOR POWER
