Polaris 800 RMK ASSAULT 2011 User Manual

8.47
Steering and Suspensions
8

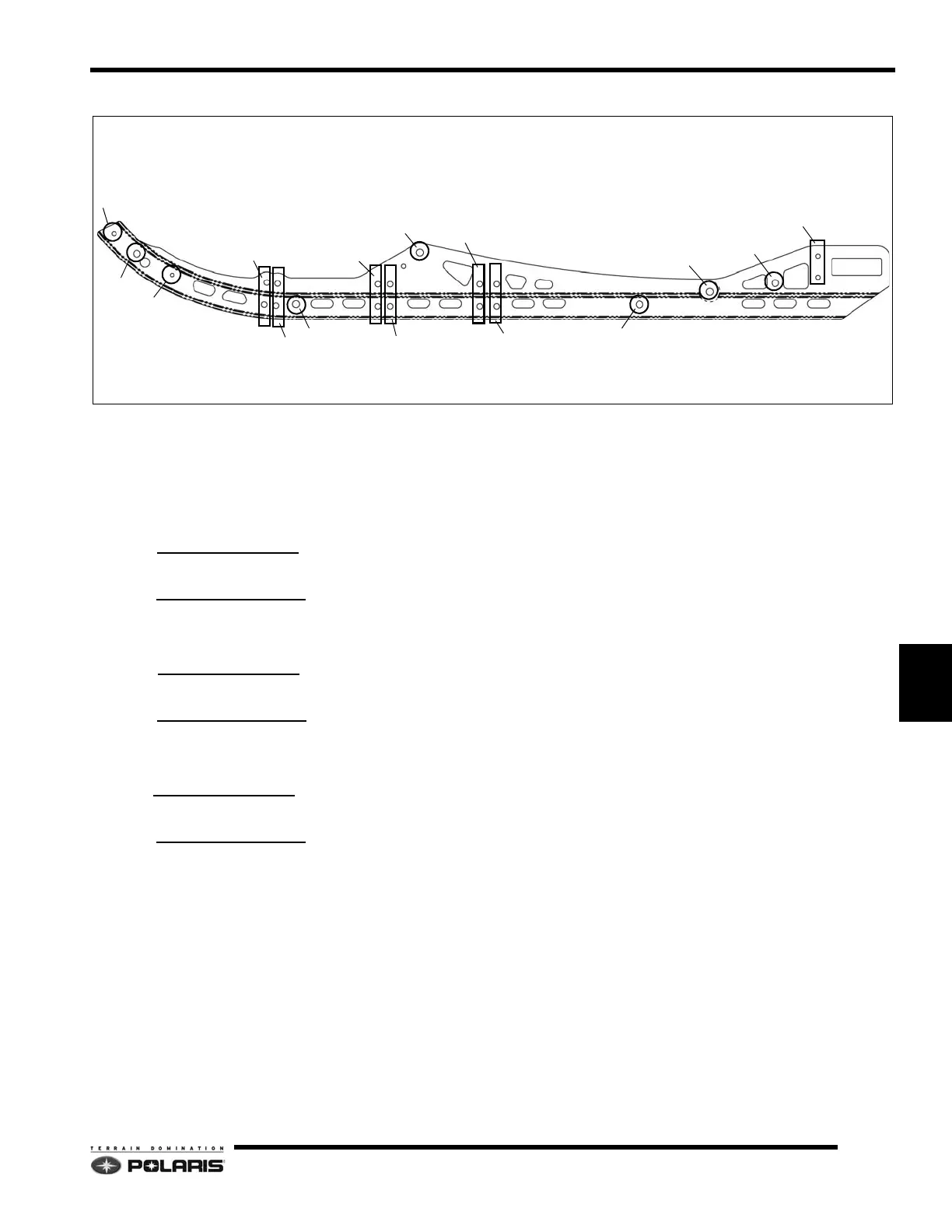

Progressive 121 Rail Fastener Locations
Components/Fasteners:
• A - Rail Tip
• B - Limiter Strap Shaft
• C - Rail Bumper
•D -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to outside of rail).
•E -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to outside of rail).
• F - Front Shock Shaft
•G -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to outside of rail).
•H -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to outside of rail).
• I - Front Torque Arm Shaft
•J -
Left Rail Front Holes - Bogie Wheel Asm.
(Mount to inside of rail).
•K -
Right Rail Rear Holes - Bogie Wheel Asm.
(Mount to inside of rail).
• L - Rail Brace Shaft
• M - Rear Pivot Shaft
• N - Rail Brace Shaft
• O - Rear Idler Adjuster Block
A
B
C
D
E
F
G
H
K
M
J
L
I
N
O
LEFT RAIL SHOWN
