8.26
Steering and Suspensions

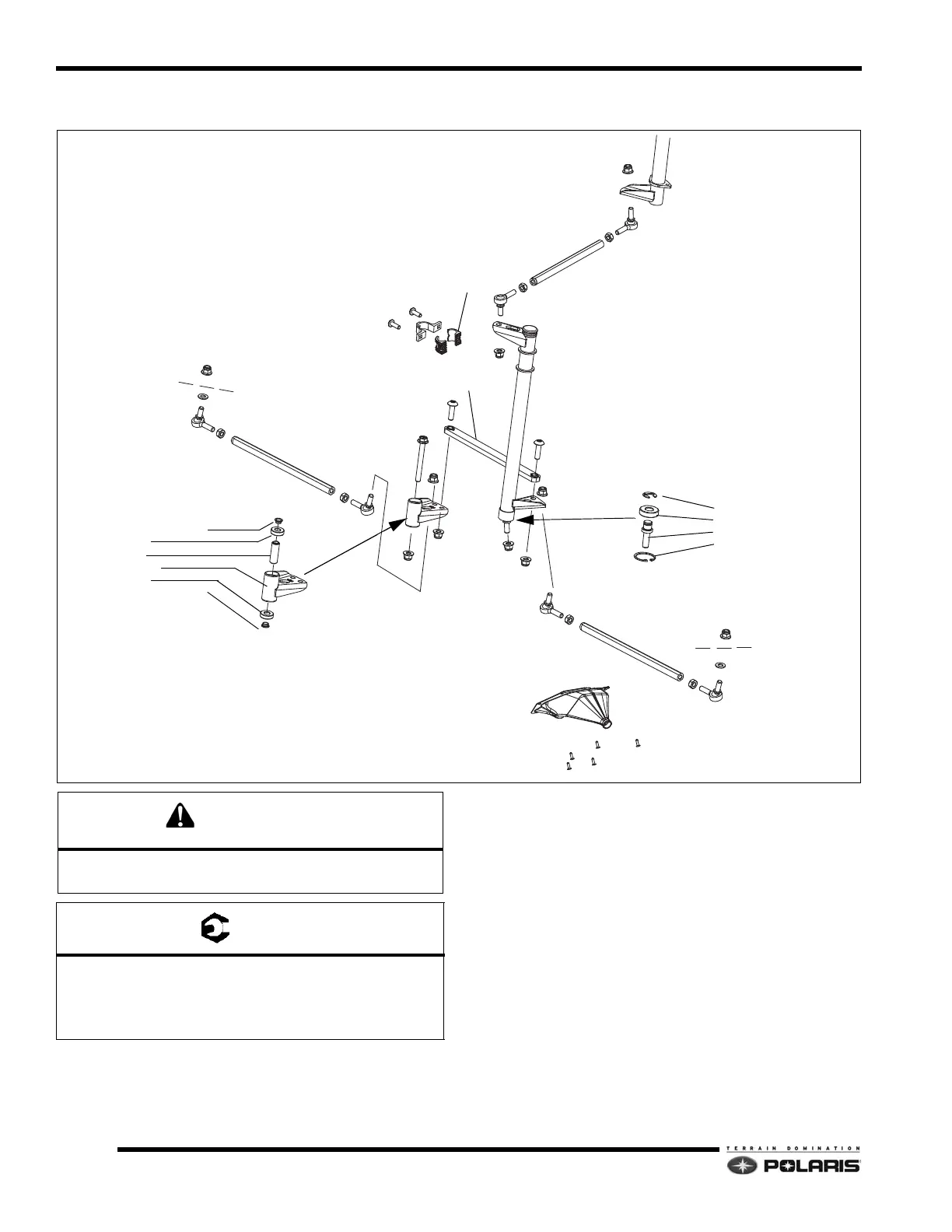

2010 Rush Lower Steering Assembly
NOTE: Assembly Notes
• Orientate rod ends so they are parallel with mating
comp
onent.
• Tie rod end-to-rod end (center-to-center) length
=1
5.04" (382mm)
• Upper drag link rod end-to-rod end (center-to-
cente
r) length = 11.71" (297.5mm)
FIXED LINK
LOWER STEERING POST
BUSHINGS
UPPER STEERING POST
UPPER DRAG LINK
TIE ROD
TIE ROD BOOT
TIE ROD
BUSHING REDUCER
POST BRACKET
ROD END
ROD END
ROD END
ROD END
A
B
B
B
B
B
B
B
C
C
C
C
C
C
B
B
D
BEARING
SPACER
IDLER ARM
BEARING
BUSHING REDUCER
RETAINING RING
BEARING
SPACER STUD
RETAINING RING
CAUTION
Never re-use lock nuts. Always re-assemble using new
lock nuts.
= T
A: 22 ft-lbs (30 Nm)
B: 37 ft-lbs (50 Nm)
C: 11 ft-lbs (15 Nm)
D: 14.7 ft-lbs (20 Nm)
