8.63
Steering and Suspensions
8

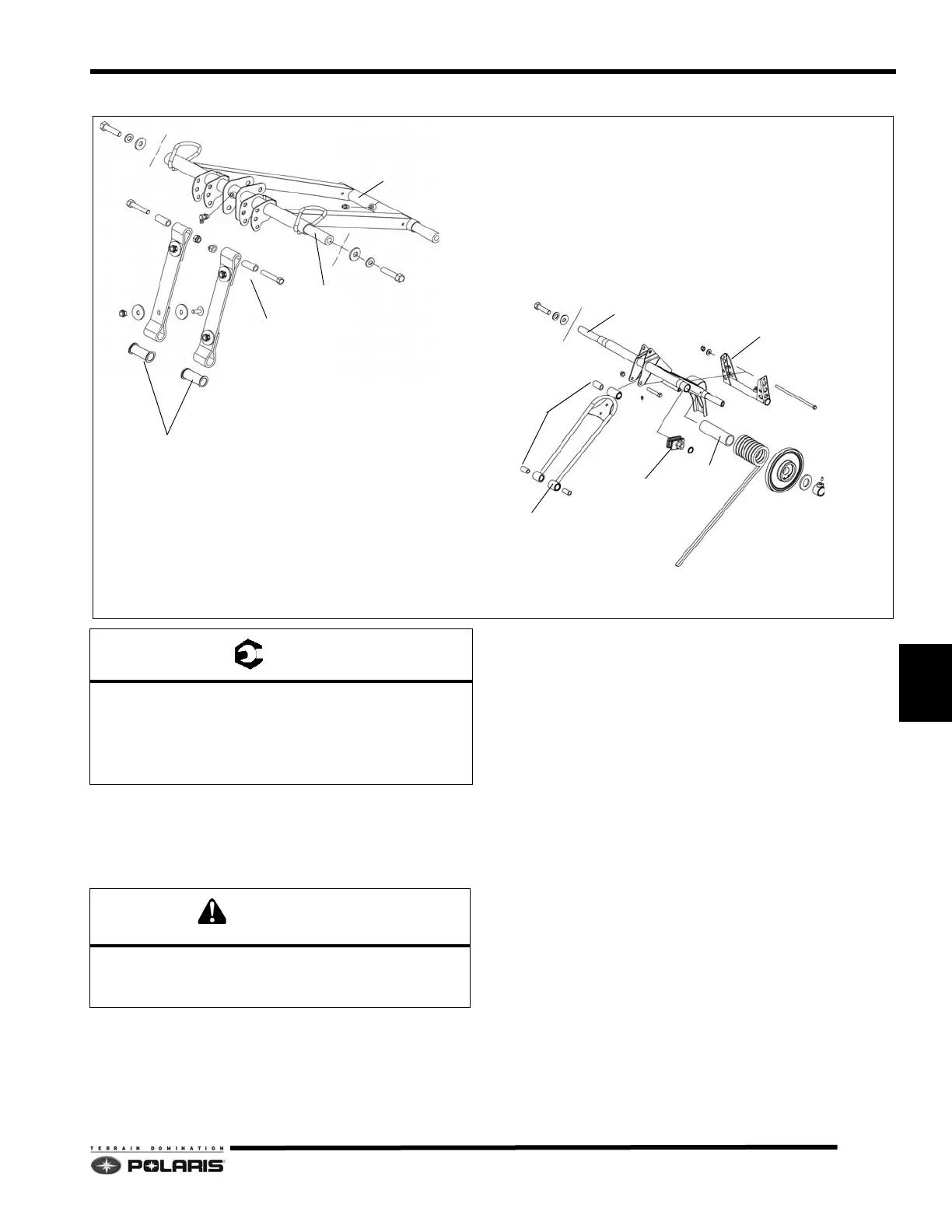

RMK 144/Switchback Assault Front/Rear Torque Arm
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
A: 45 ft-lbs (61 Nm)
B: 19 ft-lbs (25 Nm)
C: 12 ft-lbs (16 Nm)
D: 25 ft-lbs (34 Nm)
E: 35 ft-lbs (47.4 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
CARRIER WHEEL
COLLAR
INNER SHAFT
FRONT TORQUE ARM
LIMITER STRAP SLEEVES
PIVOT SHAFT
BUSHING
BUSHING
BUSHINGS
A
A
B
C
B
TORSION SPRING
SPRING ADJUSTER
SHOCK ROD
INNER SHAFT
REAR PIVOT
A
D
E
E
STANDARD FASTENERS
INSTALL STRAPS RUBBER SIDE OUT
2012-2013 SWITCHBACK ASSAULT ONLY
LIMITER STRAP
