3.26
Engine/Cooling/Exhaust

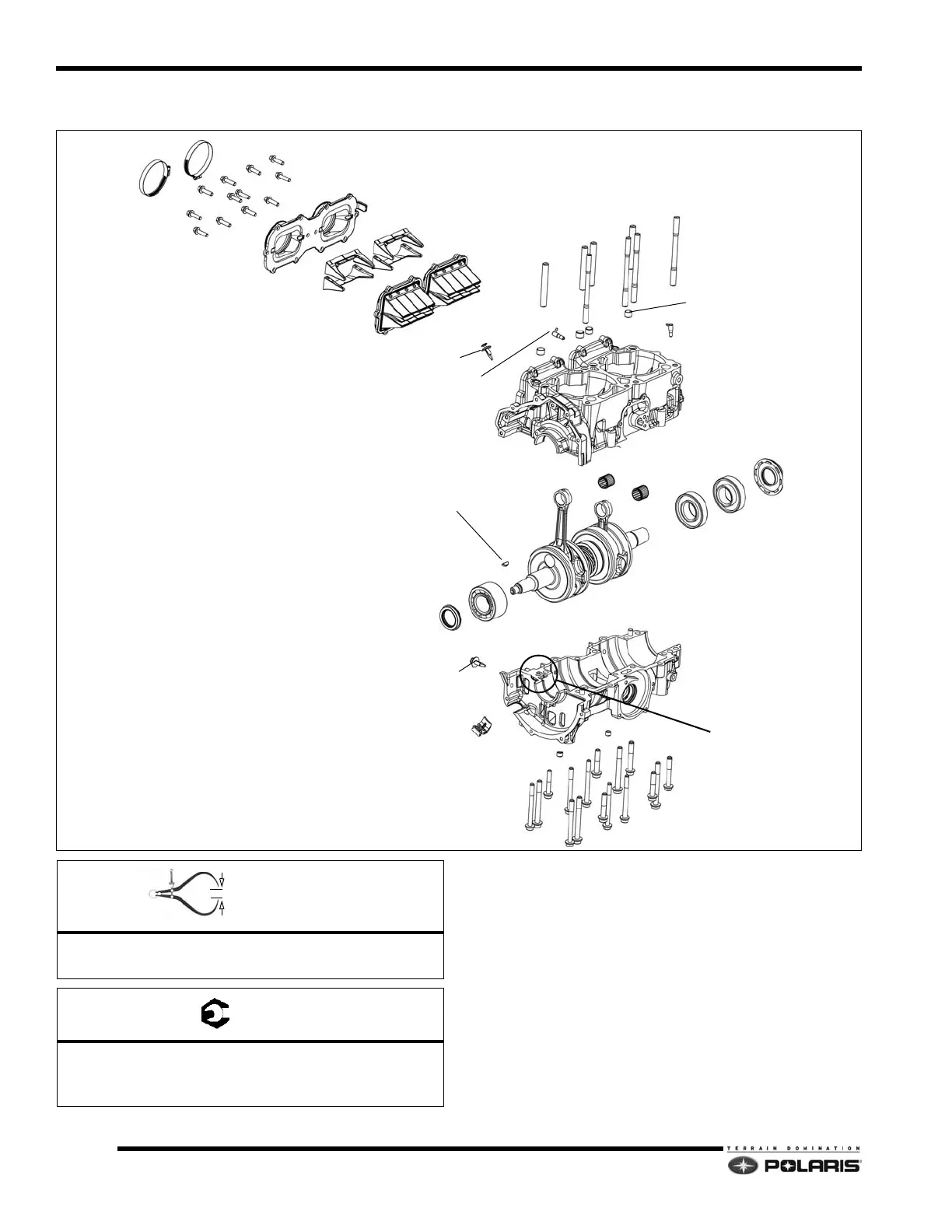

600 Crankcase/Crankshaft Assembly
GEAR CLAMPS
INTAKE BOOT
REED STUFFERS
REED BLOCKS
CYLINDER STUDS
NEEDLE BEARINGS
PTO SEAL
MAG SEAL
MAG BEARING
PTO BEARINGS
FLYWHEEL KEY
CRANKSHAFT
OIL INJECTION CHECK VALVE QTY. 5
ALIGNMENT DOWELS
A
B
C
TRIGGER COIL WIRE RETAINER
STATOR WIRE HARNESS RETAINER
TRIGGER COIL WIRE RETAINER
DO NOT FILL MAG
BEARING OIL
GALLERY WITH CASE
SEALANT
Long Stud Height (Exhaust side): 4.13" (105mm)
Small Stud Height (Intake side): 2.16" (55mm)
A: 9 ft-lbs (12 Nm)
B: 22 ft-lbs (30 Nm)
C: 10 ft-lbs (13 Nm) - Apply Pipe Sealant
