Engine/Cooling/Exhaust

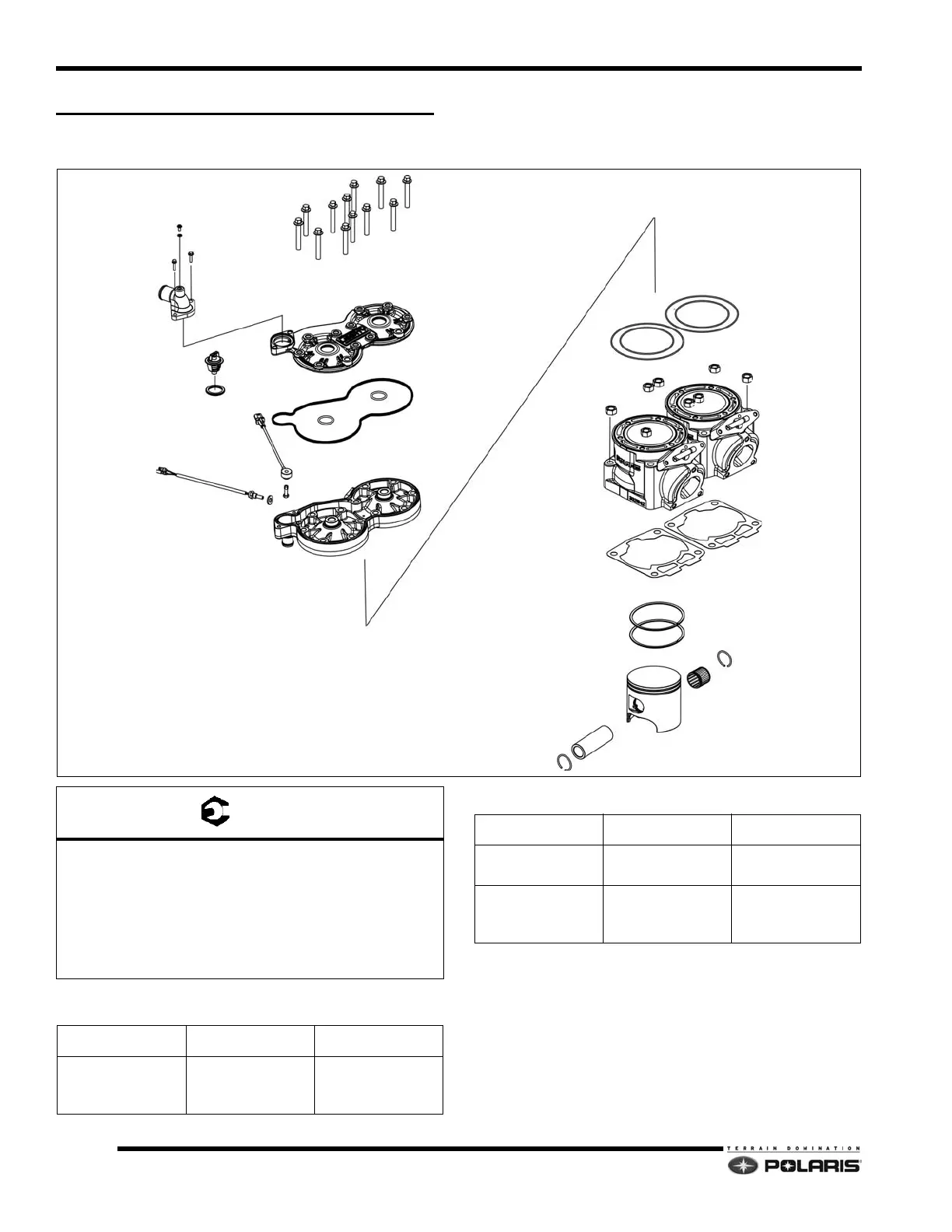

ENGINE COMPONENT ASSEMBLIES
600 Cylinder Head/Cylinders/Pistons
A
B
C
E
D
F
BLEED SCREW
GASKET
THERMOSTAT
THERMOSTAT COVER
HEAD COVER
TEMP. SENSOR
CYLINDER HEAD
O-RINGS
KNOCK SENSOR
O-RINGS
BASE GASKETS
CYLINDERS
PISTON RINGS
PISTON PIN
C-CLIP
PISTON
BEARING
= T
A: 70 in-lbs (8 Nm)
B: 9 ft-lbs (12 Nm) - Apply Loctite® 242™
C: 25 ft-lbs (34 Nm) - Apply Loctite® 242™
D: 18 ft-lbs (24 Nm) - Apply Pipe Sealant
E: 168 in-lbs (19 Nm) - Clean and Dry
(DO NOT UNDER/OVER TORQUE SCREW.)
F: 37 ft-lbs (50 Nm)
Piston Matrix
Engine Model Piston PN Piston ID
S4202-6044-OP6N
S4215-6044-OO6N
S4357-6044-OL6N
2204152 3222
S4316-6044-OL6G
S4452-6044-OL6G
2204659 3226
S4504-6044-OA6G
S4505-6044-0A6G
S4506-6044-0A6G
2204900 3508
Piston Matrix
Engine Model Piston PN Piston ID
