103
There are two modes for carrying out a transition: auto
transitions are carried out by a button operation, and
manual transitions are carried out using the fader lever.
It is also possible to combine both methods, taking
con
trol with the fader lever of an auto transition which has
partly completed, or completing a transition started with
the fader lever as an auto transition.
Transition indicator
You can check the transition execution status using the
tr
ansition indicator on the transition control block/
transition control block (simple type).
The transition indicator displays the transition execution
stat
us by which LEDs are lit and which are not, both for
manual transitions and auto transitions.
When the transition indicator is lit up to the center point,
t
he transition progress has reached 50%.
When the transition is completed, the transition indicator
t
urns off.
Auto Transitions
To switch images with the preset transition type
and transition rate
Press the [AUTO TRANS] button in the transition control
bl
ock or the [TAKE] button in the transition control block
(simple type).
The transition is executed automatically with the preset
sp
eed (transition rate).
During the transition execution, the [AUTO TRANS]
b
utton/[TAKE] button is lit amber.
To switch images instantaneously
Press the [CUT] button in the transition control block/
tr
ansition control block (simple type).
When the next transition is a key, the key is inserted or
r
emoved instantaneously.
To complete a partially executed transition
in
stantaneously
Press the [CUT] button in the transition control block/
tr
ansition control block (simple type).
The [AUTO TRANS] button/[TAKE] button turns off.
Changing from auto transition to manual
transition
During an auto transition started by pressing the [AUTO
TRANS] button/[TAKE] button, operating the fader lever
immediately enables the fader lever, and the [AUTO
TRANS] button/[TAKE] button turns off. Thereafter, the
fader lever controls the execution of the transition.
Executing an auto transition using the
menu
This section describes the M/E-1 menu as an example.
1 Open the Home > M/E-1 > Bus/Transition > Wipe >
Wipe Snapshot menu (11109.37) or Home > M/E-1 >
Bus/Transition > DME Wipe > DME Wipe Snapshot
menu (11109.46).

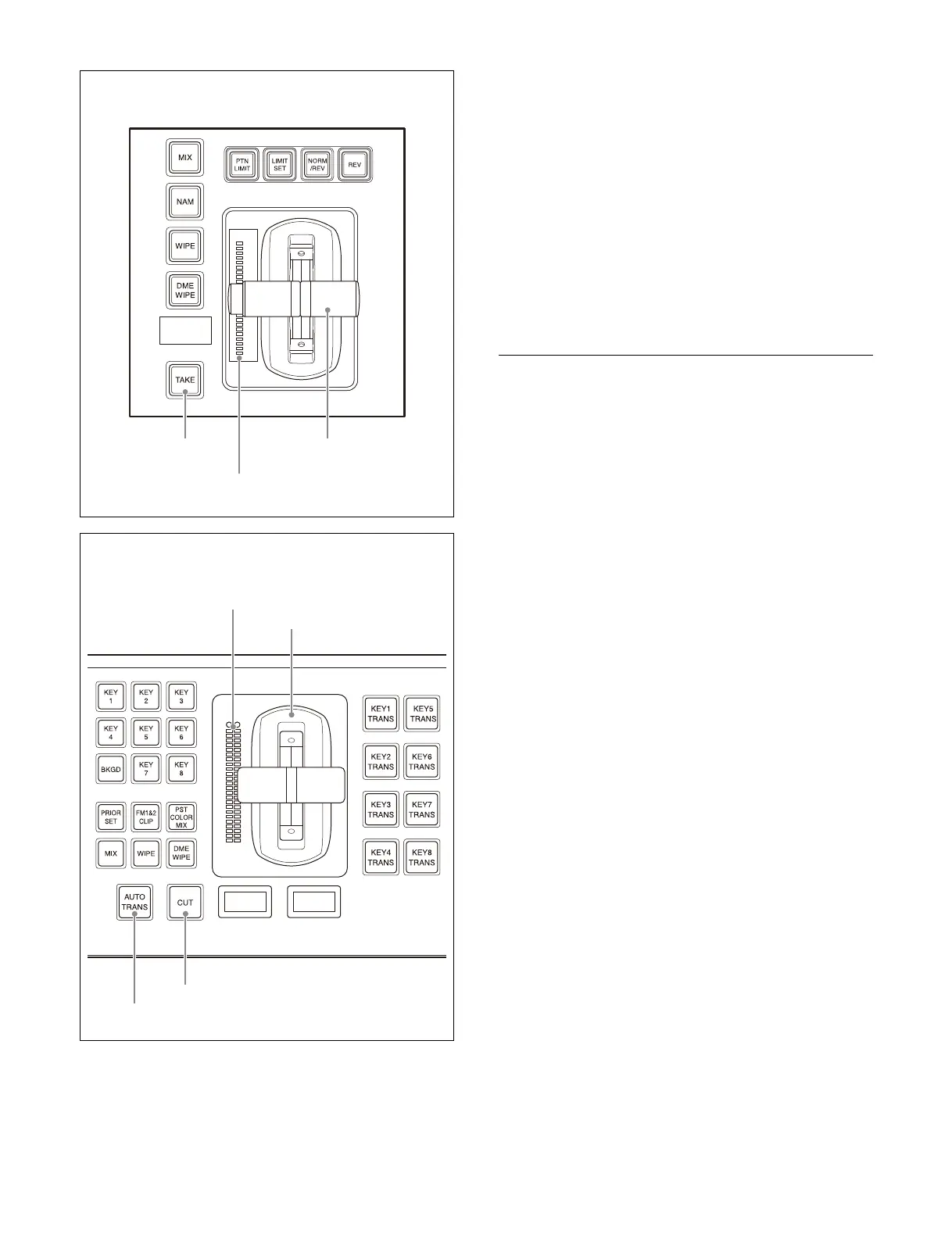

Fader lever
ICP-X7000 transition control block (simple type)
Transition indicator
TAKE button
Fader lever
Transition indicator
AUTO TRANS button
CUT button
ICP-X1000 series transition control block
