YH4
GRAND
VITARA
For CAMI production vehicle
For IWATA production vehicle
2. High pressure side (Delivery side hose)
3. Lower pressure side (Suction side pipe)
AIR CONDITIONING (OPTIONAL) 1B-49
COMPRESSOR ASSEMBLY
CAUTION:
None of refrigerant, compressor oil and component parts is interchangeable between two types of A/C:
one using CFC-12 (R-12) and the other using HFC-134a (R-134a).
For identification between these two types, refer to page 1B-2.
When replenishing or changing refrigerant and compressor oil and when replacing parts, make sure
that the material or the part to be used is appropriate to the A/C installed in the vehicle being serviced.
Use of incorrect refrigerant or compressor oil will result in leakage of refrigerant, damage in parts or
other faulty condition.
PRECAUTION
When servicing the compressor, keep dirt or foreign material away from getting on or into the compressor parts
and system. Clean tools and a clean work area are important for proper service.
The compressor connection and the outside of the compressor should be cleaned before any “On-vehicle” repair
or before removal of the compressor. The parts must be kept clean at all times and any parts to be reassembled
should be cleaned with Trichloroethane, naphtha, kerosene or equivalent solvent and dried with dry air. Use only
lint free cloths to wipe parts.
The operations described are based on bench overhaul with compressor removed from the vehicle, except as
noted. They have been prepared in order of accessibility of the components.
When compressor is removed from the vehicle for servicing, the oil remaining in the compressor should be dis-
carded and new refrigerant oil added to the compressor.
Minor repair procedures may be done on the vehicle without discharging the system. Major repair procedures re-
quire that the system be discharged of refrigerant.
INSPECTION

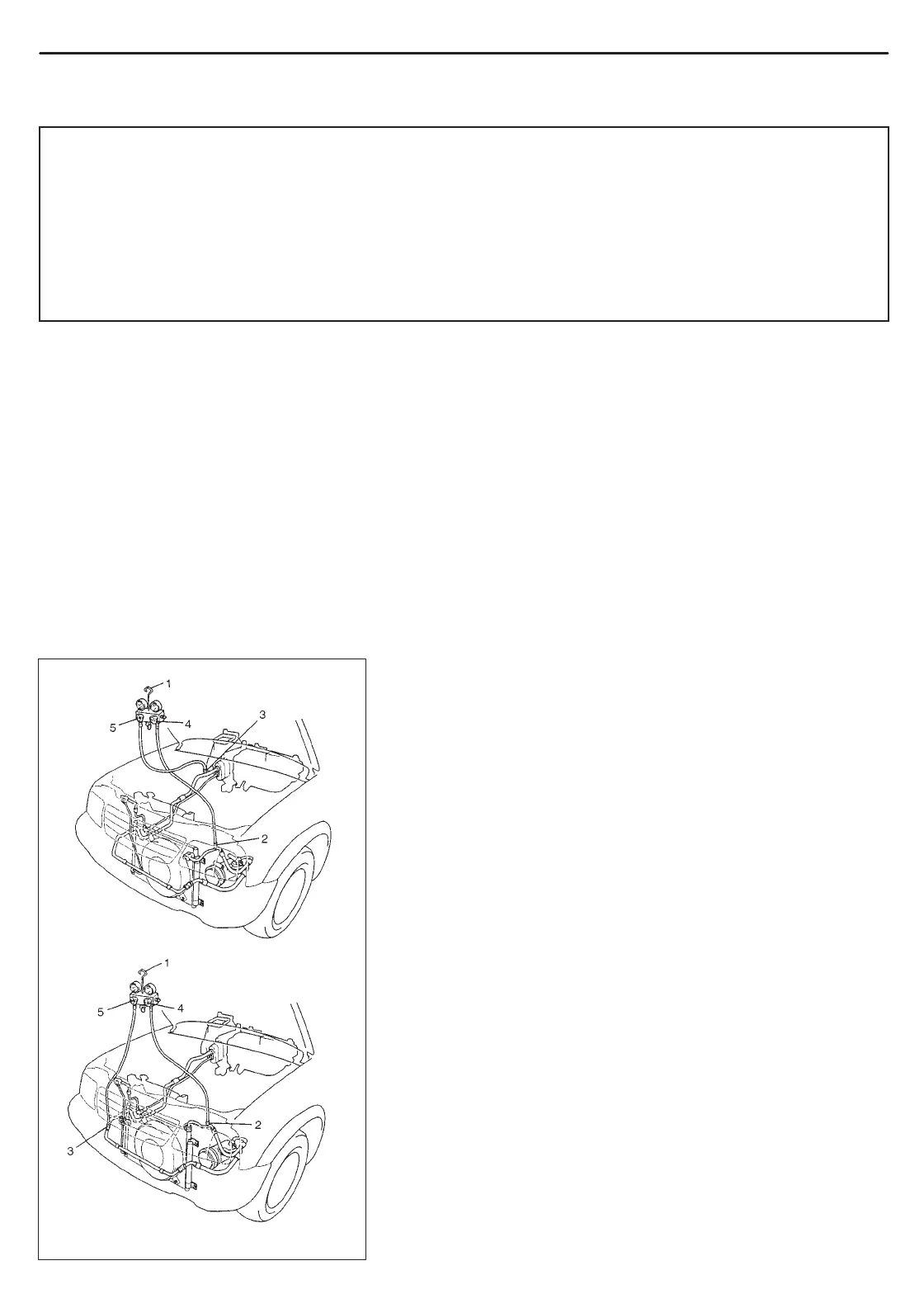

1) Install manifold gauge set (1) as shown in the figure.
2) Close Hi (4) and Lo (5) hand valves.
3) Run engine at fast idle.
4) Check compressor assembly for following items.
If any of the above checks indicated a defect, repair compressor
assembly.
High pressure gauge reading is not low and low pressure
gauge reading is not higher than normal.
Metallic sound.
Leakage from shaft seal.
