YH4
GRAND
VITARA

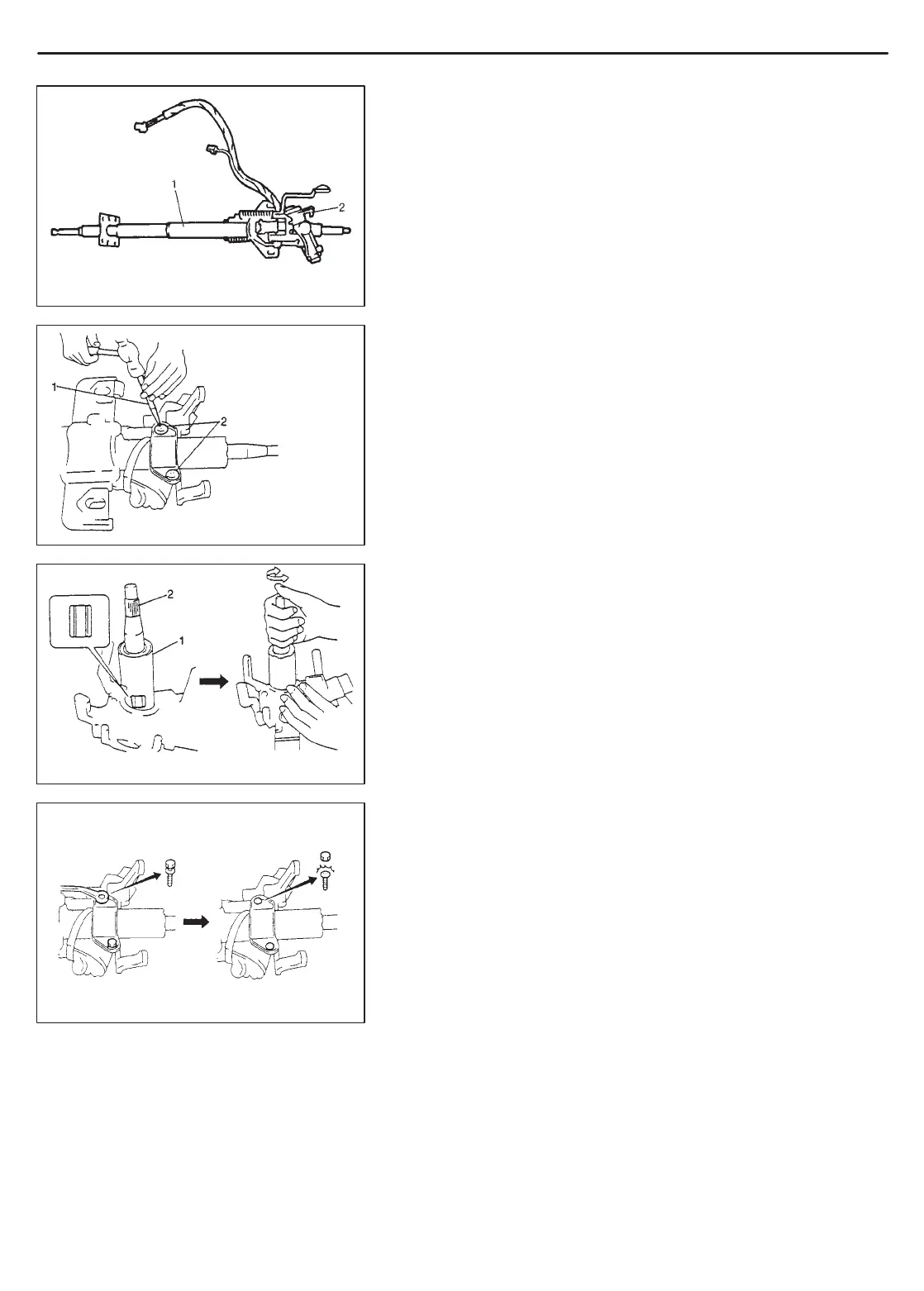

1. Steering column
2. Steering lock
1. Center punch (with sharp point)
2. Steering lock mounting bolt
1. Steering column
2. Steering shaft
3C-10 STEERING WHEEL AND COLUMN
STEERING LOCK ASSEMBLY (IGNITION
SWITCH)
REMOVAL
1) Remove steering column. Refer to “STEERING COLUMN” in
this section.
2) Using center punch as shown, loosen and remove steering lock
mounting bolts.
NOTE:
Use care not to damage aluminum part of steering lock
body with center punch.
3) Turn ignition key to “ACC” or “ON” position and remove steering
lock assembly from steering column.
INSTALLATION
1) Position oblong hole of steering shaft in the center of hole in col-
umn.
2) Turn ignition key to “ACC” or “ON” position and install steering
lock assembly onto column.
3) Now turn ignition key to “LOCK” position and pull it out.
4) Align hub on lock with oblong hole of steering shaft and rotate
shaft to assure that steering shaft is locked.
5) Tighten new bolts until head of each bolt is broken off.
6) Turn ignition key to “ACC” or “ON” position and check to be sure
that steering shaft rotates smoothly. Also check for lock opera-
tion.
7) Install steering column. Refer to “STEERING COLUMN” in this
section.
