IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED) 8G-27
1

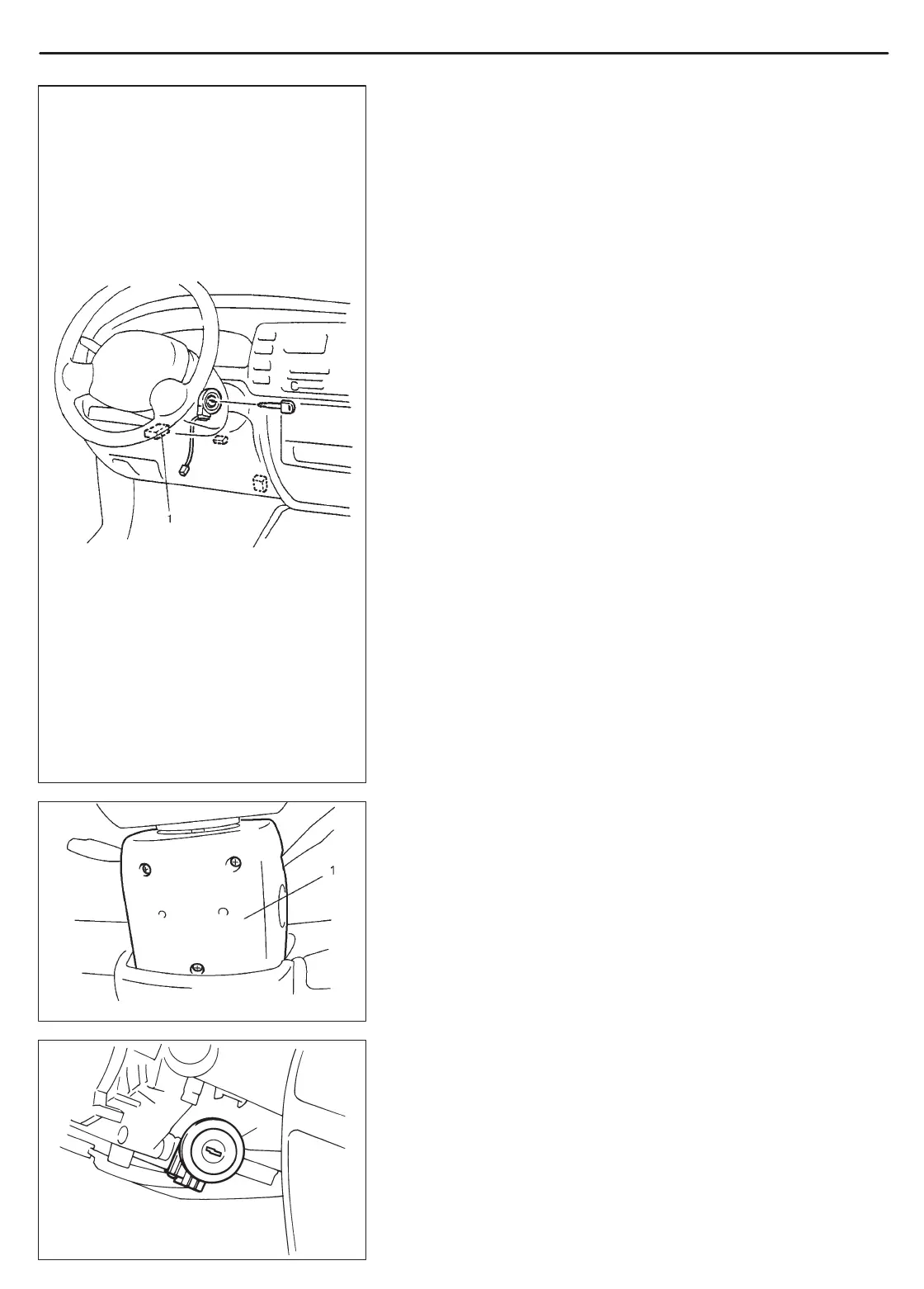

1. Immobilizer Control Module
1. Steering column lower cover
1. Coil antenna
IMMOBILIZER CONTROL MODULE
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column hole cover.
3) Disconnect coupler at Immobilizer Control Module.
4) Remove Immobilizer Control Module.
Installation
Reverse removal procedure for installation.
NOTE:
After replacing Immobilizer Control Module, be sure to register
Transponder code and ECM/Immobilizer Control Module code
in Immobilizer Control Module and ECM/Immobilizer Control
Module code in ECM/PCM by performing procedure described
in “Procedure after Immobilizer Control Module Replacement”
section.
COIL ANTENNA
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column upper and lower cover by removing 3
screws.
3) Remove steering column hole cover.
4) Remove coil antenna.
Installation
For installation, reverse removal procedure.
