YH4
GRAND
VITARA
BODY SERVICE 9-73
5
4
6

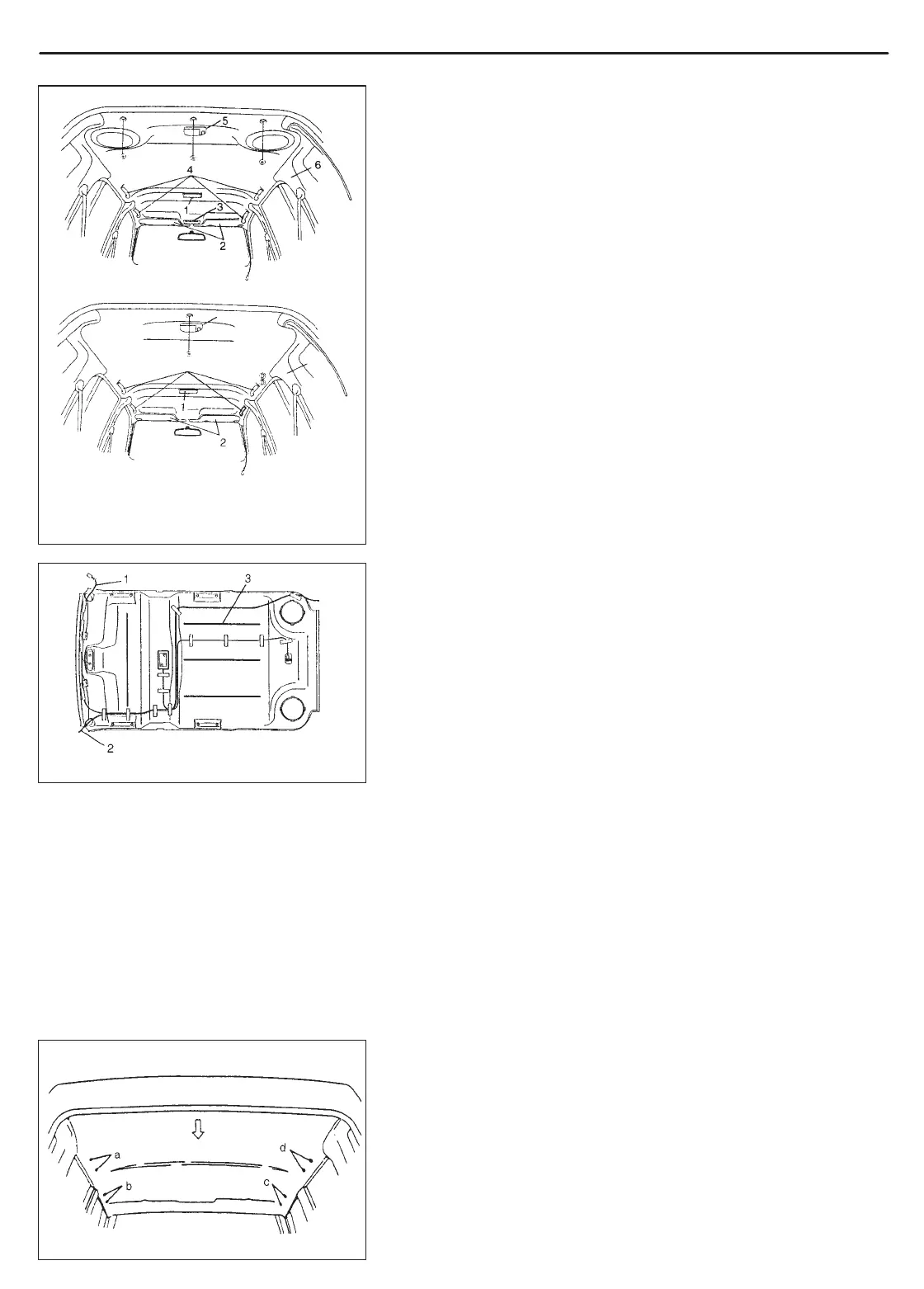

4. Assistant grip
5. Rear room light
6. Inner trim
1. Roof harness
2. Rear washer hose
3. Adhesive tape
Front
1. Room light
2. Sunshade assembly
3. Spot light
IWATA
CAMI
HEAD LINING
REMOVAL
1) Remove spot light and sliding roof switch (if equipped).
2) Remove sunshade assembly.
3) Remove room light and spacer.
4) Remove assistant grips.
5) Remove inner trims covering head lining and door opening trim.
6) Remove rear speaker cover (if equipped).
7) Disconnect rear washer hose and roof harness from body.
8) Remove head lining.
NOTE:
Adhesive double coated tape is used to attach rear part of
head lining. Detach head lining from roof after removing all
above parts.
INSTALLATION
1) Set roof harness and washer hose to head lining with tape.
2) Clean roof where adhesive tape of head lining will be attached.
3) Peel off release liner of adhesive tape on head lining and install
it to body.
4) Install assistant grips a, b, c and d in that order.
