YH4
GRAND
VITARA
AUTOMATIC TRANSMISSION (4 A/T) 7B1-71

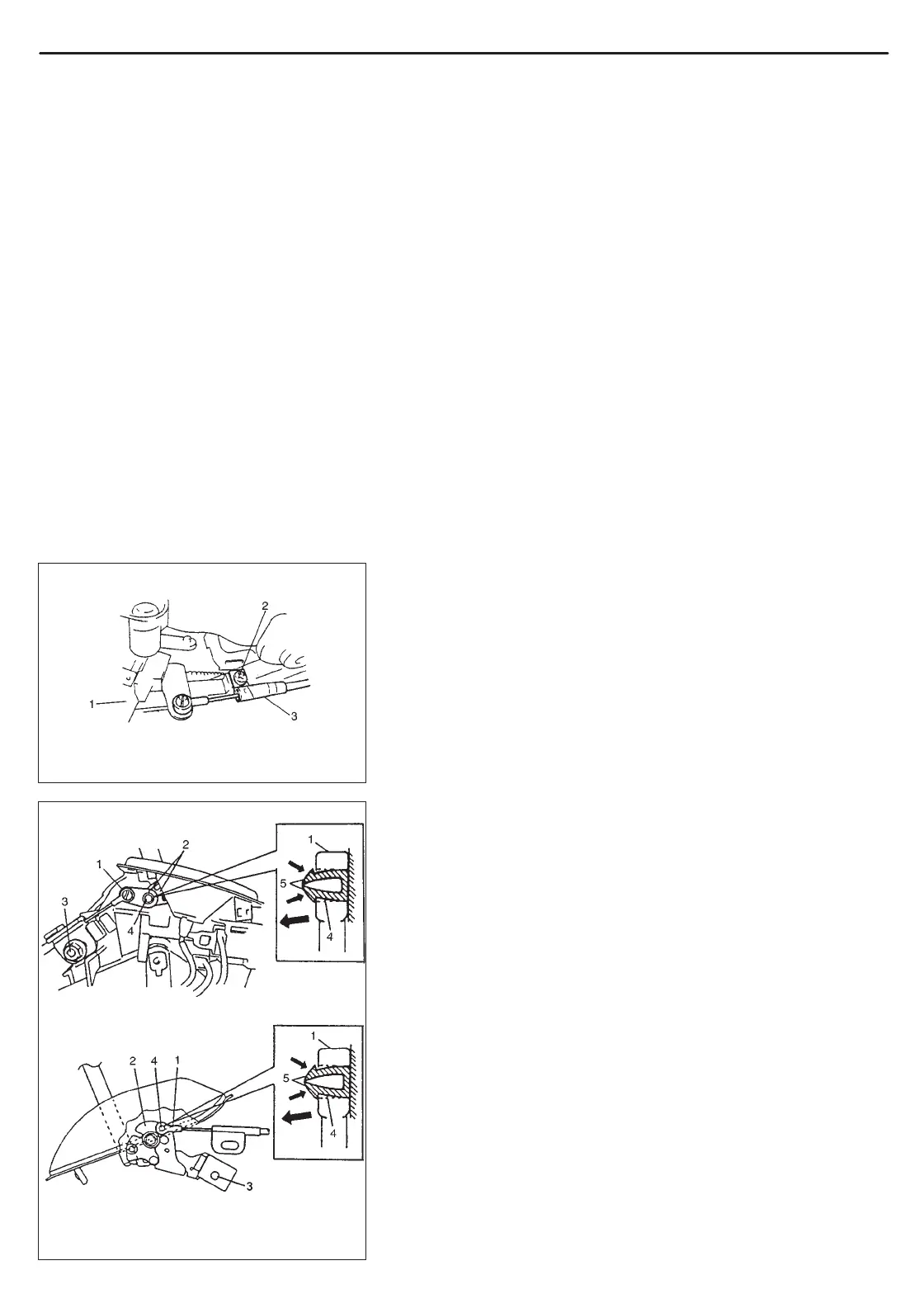

Ignition switch side
1. Ignition switch assembly
2. Clamp screw
3. Interlock cable
Select lever side
Type-1
1. Inner end of interlock cable
2. Interlock cam (or key release cam)
3. Stud bolt
4. Cam boss
5. Claw
Select lever side
Type-2
KEY INTERLOCK CABLE
NOTE:
Don’t bend interlock cable excessively when removing and
installing it, or system will not operate correctly.
Removal
1) Disconnect negative (–) cable from battery.
2) If equipped with air bag system, disable air bag system.
Refer to “Disabling Air bag System” in Section 10B.
3) Remove steering column hole cover.
4) Tilt steering column if steering column is adjustable.
If no adjustable, loosen steering column bolts.
5) Remove steering column cover.
6) Remove interlock cable clamp screw located at ignition switch
assembly.
7) Disconnect interlock cable inner end.
(Ignition switch side.)
8) With console box removed, take out interlock cable by loosening
lock nuts.
9) Detach cable end from interlock cam (or key release cam) while
pressing claws of interlock cam boss. At this time, be careful not
to cause damage to its claws.
To Next Page
