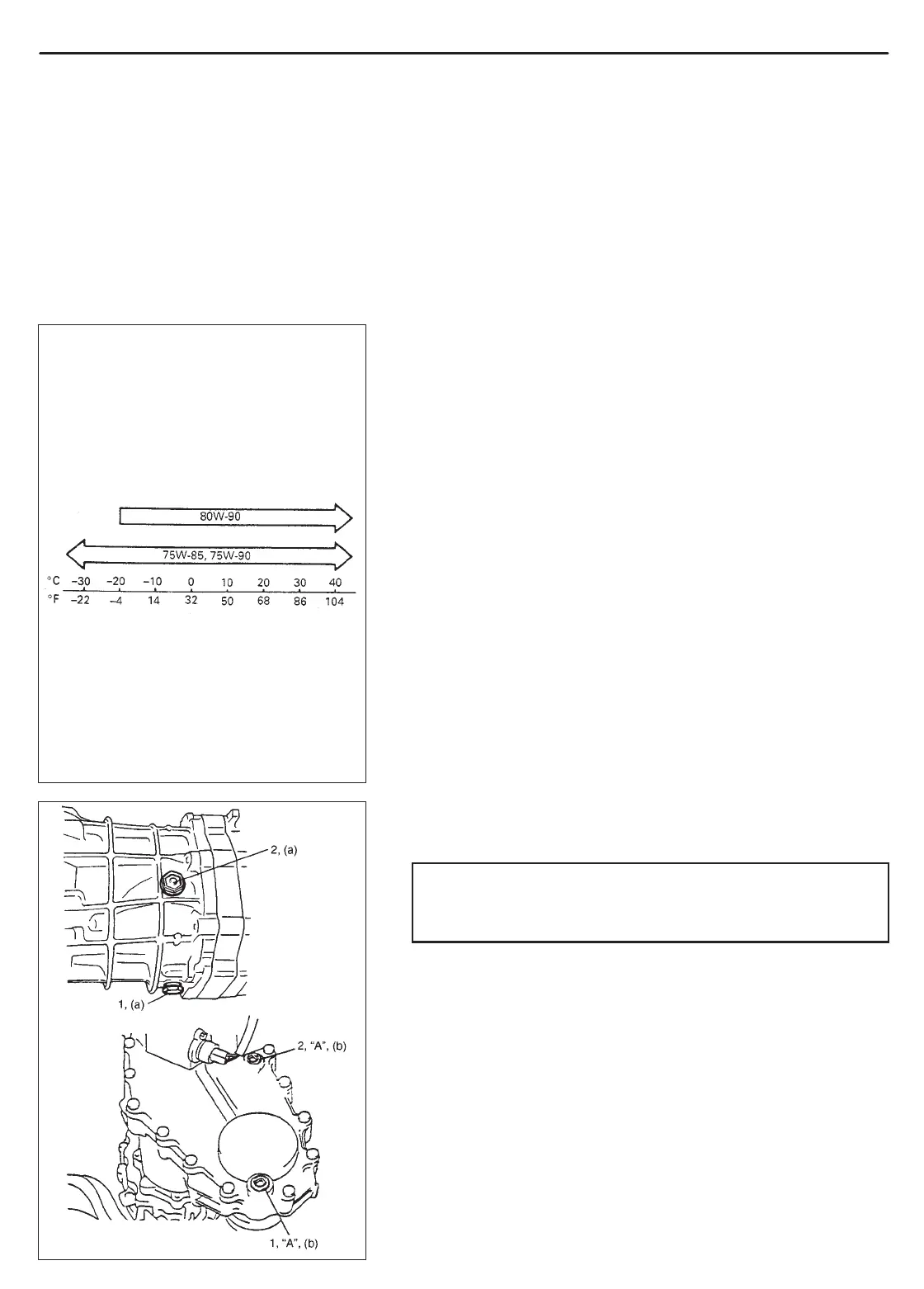

Viscosity chart
SAE
Temperature
1. Drain plug
2. Oil level/filler plug
MANUAL TRANSMISSION (TYPE 2) 7A1-3
ON-VEHICLE SERVICE
GEAR OIL
INSPECTION AND CHANGE
1) Before changing or inspecting oil, be sure to stop engine and lift
vehicle horizontally.
2) With vehicle lifted up, check oil level and leakage. If leakage ex-
ists, correct or repair it.
3) Drain old oil and fill new specified oil as shown below by speci-
fied amount (roughly up to level hole).
NOTE:
It is highly recommended to use SAE 75W-90 gear oil.
Whenever vehicle is hoisted for any other service work
than oil change, also be sure to check for oil leakage and
status of breather hoses.
If water or rust is mixed in drained oil, be sure to check
breather hose and boot of transmission and transfer.
Gear Oil Specification
Oil grade: API GL-4
Viscosity: SAE 75W-85, 75W-90 or 80W-90
Oil Capacity:
Transmission 2.6 liters (5.5/4.6 US/Imp. pt)
Transfer 1.7 liters (3.6/3.0 US/Imp. pt)
4) Torque drain plug and level/filler plug as specified below after
applying sealant to thread of plug (c).
CAUTION:
Transmission oil must not be poured through gear shift
control lever part.
“A”: Sealant 99000-31110
Tightening Torque
(a): 38 N·m (3.8 kg-m, 27.5 lb-ft)
(b): 23 N·m (2.3 kg-m, 17.0 lb-ft)
