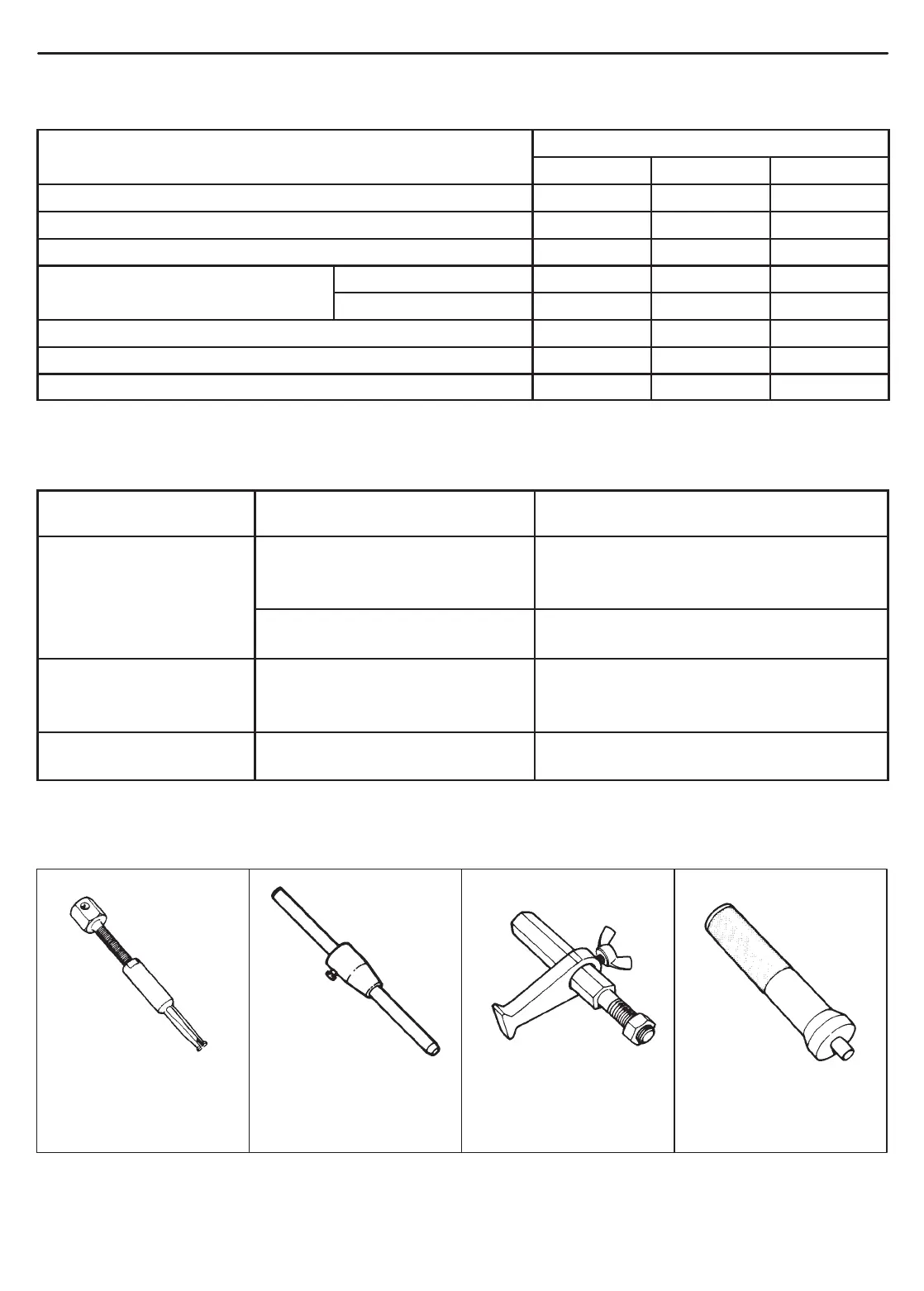

7C1-14 CLUTCH
09917-58010 (G16 engine)
09923-73210
(J20 and H25 engines)
Bearing remover
09923-36330 (G16 engine)
09923-36320
(J20 and H25 engines)
Clutch center guide
09924-17810
Flywheel holder
09925-98210
Input shaft bearing installer
TIGHTENING TORQUE SPECIFICATIONS
Fastening
p
ortion
Tightening torque
Fastening
ortion
N
.
m kg-m lb-ft
Flare nut 16 1.6 11.5
Master cylinder nut 13 1.3 9.5
Lock nut 10 1.0 7.5
Flywheel bolts
G16 engine 78 7.8 56.5
Flywheel
bolts
J20 and H25 engines 70 7.0 50.5
Clutch cover bolts 23 2.3 16.5
Operating cylinder bolt 50 5.0 36.5
Clutch hose union bolt 23 2.3 16.5
REQUIRED SERVICE MATERIALS
MATERIAL
RECOMMENDED
SUZUKI PRODUCT
USE
Lithium grease
SUZUKI SUPER GREASE A
(99000-25010)
 Clutch master cylinder clevis pin.
 Release fork.
 Push rod tip of operating cylinder.
SUZUKI SUPER GREASE I
(99000-25210)
Input shaft spline front end.
Clutch fluid
(Brake fluid)
DOT3 or SAE J1703
 Clutch reservoir.
 Clutch master cylinder.
 Clutch operating cylinder.
Sealant
SUZUKI BOND No.1215
(99000-31110)
Flywheel bolts
SPECIAL TOOLS
