YH4
GRAND
VITARA

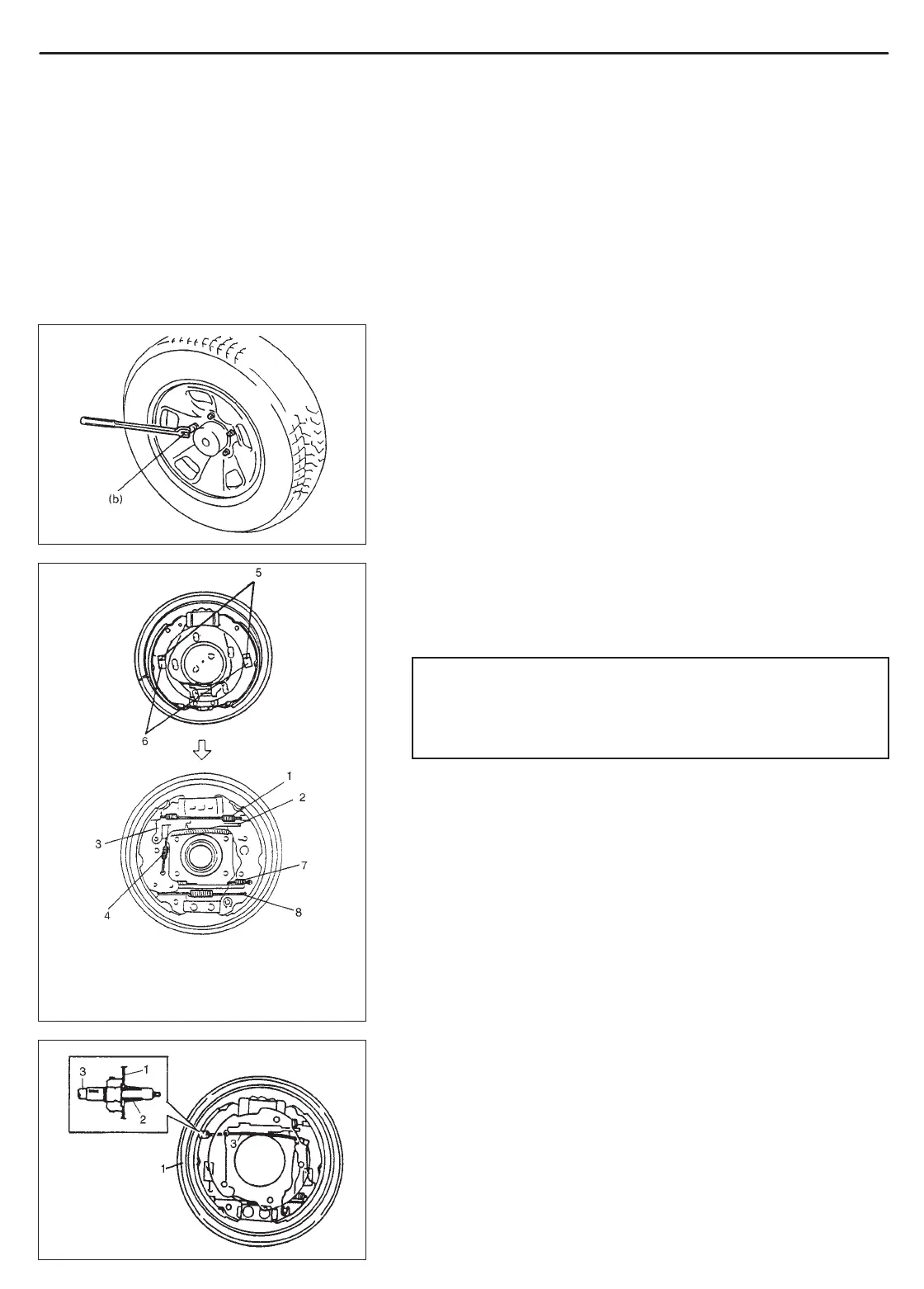

6. Shoe hold down
springs
7. Strut spring
8. Lower shoe return
spring
1. Upper shoe return spring
2. Adjuster
3. Pawl lever
4. Adjuster spring
5. Shoe hold down pins
1. Brake back plate
2. Cable cap
3. Brake cable
PARKING AND REAR BRAKE 5C-9
2) Install brake drum after making sure that inside of brake drum
and brake shoes are free from dirt and oil.
3) Upon completion of all jobs, depress brake pedal with about 30
kg (66 lbs) load three to ten times so as to obtain proper drum-to-
shoe clearance.
Adjust parking brake cable. (For adjustment, refer to PARKING
BRAKE CHECK AND ADJUSTMENT in Section 5.)
4) Tighten rear center console box screws.
5) Install wheel and tighten wheel nuts to specified torque.
Tightening Torque
(b): 100 N
.
m (10.0 kg-m, 72.5 lb-ft)
6) Check to ensure that brake drum is free from dragging and prop-
er braking is obtained. Then remove vehicle from hoist and per-
form brake test (foot brake and parking brake).
BRAKE SHOE
REMOVAL
1) Perform steps 1) to 5) of BRAKE DRUM REMOVAL.
WARNING:
Use special care when installing brake shoe return
spring. Failure in its proper installation may allow it to
springback and cause personal injury.
2) Remove shoe hold down springs by turning shoe hold down
pins.
3) Remove upper return spring, struts, adjuster, adjuster lever and
springs.
4) Remove brake shoes and lower shoe return spring.
5) Remove brake shoes and disconnect parking brake cable from
parking brake shoe lever.
