YH4
GRAND
VITARA
9-16 BODY SERVICE
1. Molding
2. Glass
3. Fastener
1. Molding
2. Glass
3. Primer
4. Adhesive
5. Fastener
1. Door sealing cover

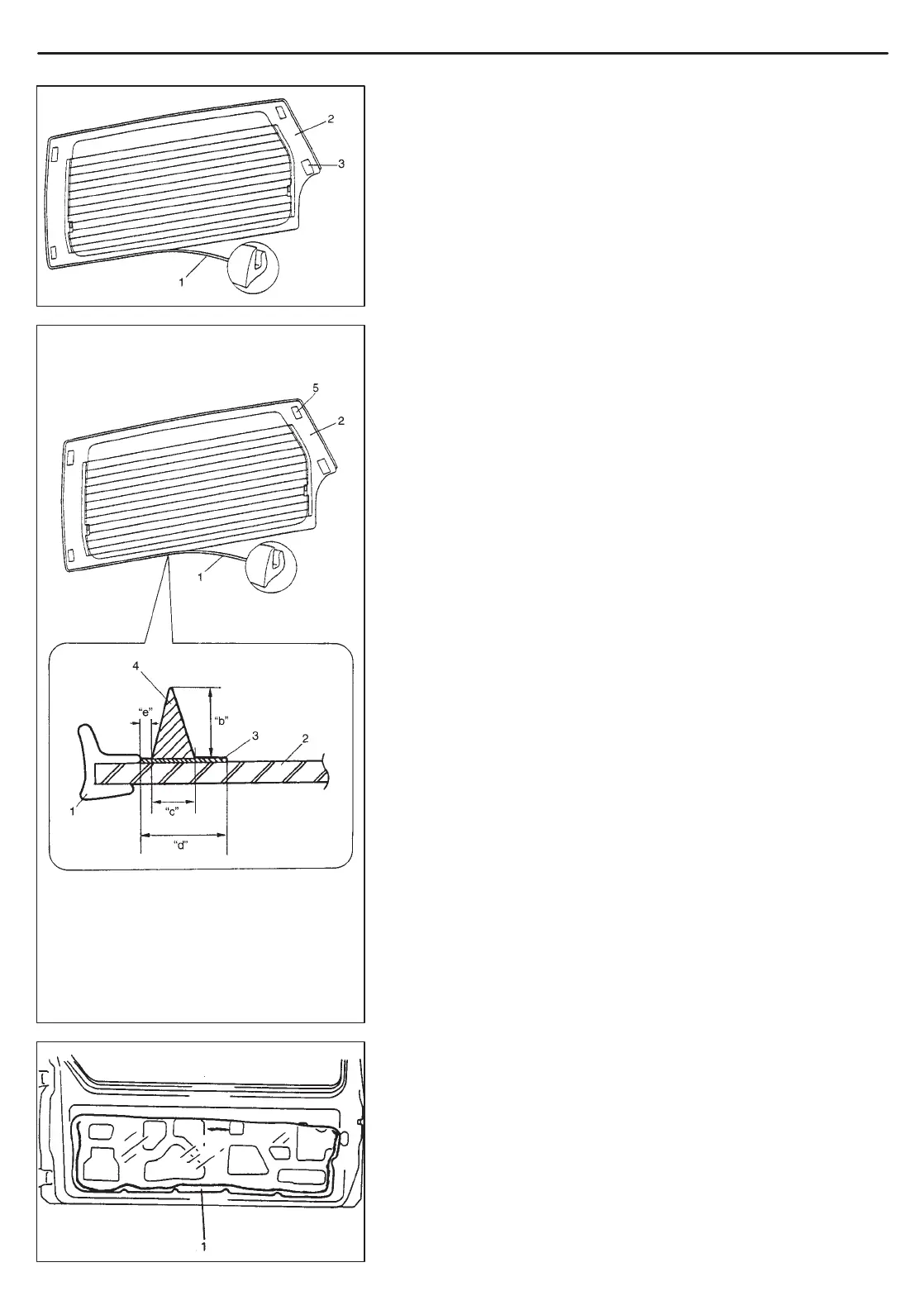

BACK DOOR GLASS
REMOVAL AND INSTALLATION
Refer to “WINDSHIELD” section as removal and installation proce-
dures and cautions are basically the same. However, note the fol-
lowing.
NOTE:
Before applying primer to glass edge, install molding ac-
cording to installing position shown in figure.
Observe following precautions when applying adhesive
along glass edge.
– Adhesive should be applied evenly especially in height.
– Be careful not to damage primer.
– Press glass against body quickly after adhesive is applied.
Height “b”: 15 mm (0.59 in.)
Width “c”: 8 mm (0.31 in.)
Width “d”: 16 mm (0.63 in.)
Clearance “e”: 1 mm (0.04 in.)
When replacing back door, coat replacement door inside
with wax for proper anticorrosive treatment. Refer to “UN-
DER COATING/ANTI-CORROSION COMPOUND APPLICA-
TION AREA” in this section.
Apply sealing compound to peripheral of door hem area and
reinstall door sealing cover.
When weatherstrip is hardened and water leaks have devel-
oped, replace it.
