YH4
GRAND
VITARA
AUTOMATIC TRANSMISSION (4 A/T) 7B1-77
“A”, (d)

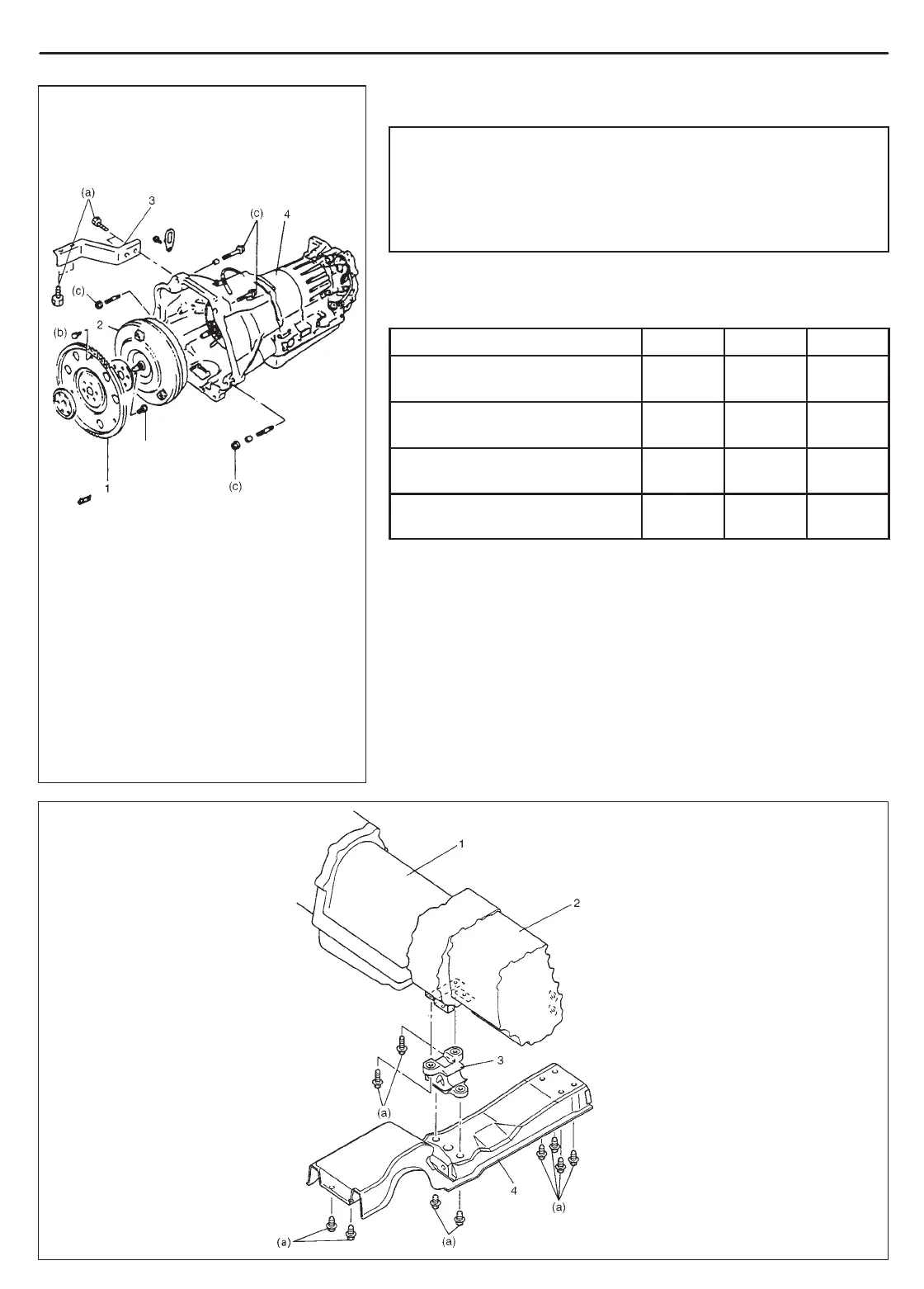

1. Drive plate
2. Torque converter
3. Case right stiffener (if equipped)
4. Automatic transmission
Tightening torque
(a): 50 N·m
5.0 kg-m
36.5 lb-ft
(b): 65 N·m
6.5 kg-m
47.0 lb-ft
(c): 85 N·m
8.5 kg-m
61.5 lb-ft
(d): 78 N·m
7.8 kg-m
56.5 lb-ft
1. Automatic transmission
2. Transfer (4WD)
3. Engine rear mounting
4. Engine rear mounting member
Tightening torque
(a): 50 N·m (5.0 kg-m, 36.5 lb-ft)
“A”: Sealant 99000-31110
REMOUNTING
WARNING:
When moving transmission assembly with torque convert-
er equipped in it, be sure to keep it horizontal. Tilting it with
its front facing down may allow converter to fall off. Where-
by an injury may result.
For remounting, reverse dismounting procedure. Use specified
torque as given below and left.
Tightening torque
N
.
m kg-m lb-ft
Exhaust No.1 pipe to manifold
bolts or nuts
50 5.0 36.5
Muffler to exhaust No.2 pipe
nuts
60 6.0 43.5
Universal joint flange bolts and
nuts
50 5.0 36.5
Oil filler tube bolts
Select cable bracket bolts
23 2.3 17.0
Clamp wiring harness and hoses securely.
Refer to “Select Cable” section for adjusting procedure of select
cable.
Refer to “A/T Throttle Cable” section for tuning of A/T throttle
cable.
Follow fluid level check procedure for refilling automatic transmis-
sion fluid and its level adjusting.
Connect battery, and confirm that engine and transmission func-
tion acceptably.
When remounting drive plate, use specified bolts.
