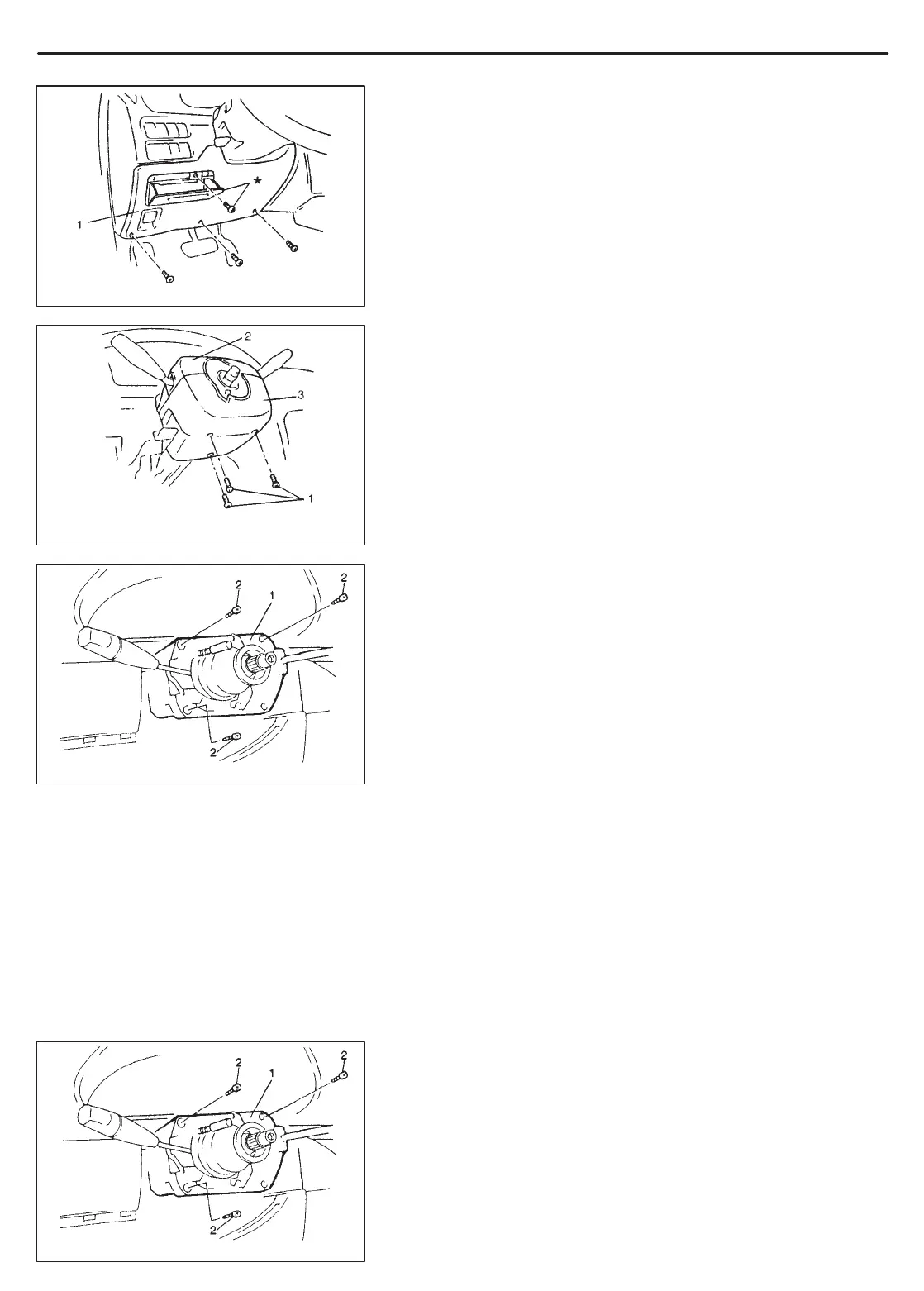

1. Combination switch
1. Steering column hole cover
: If equipped
2. Screw
1. Combination switch 2. Screw
1. Steering column cover screw
2. Steering column lower cover
*
3. Steering column
upper cover
3C-4 STEERING WHEEL AND COLUMN
COMBINATION SWITCH
REMOVAL
1) Disconnect negative battery cable at battery terminal.
2) Remove steering wheel from steering column. Refer to
“STEERING WHEEL” in this section.
3) Remove steering column hole cover.
4) Remove steering column cover screws (3 pieces).
5) Separate upper cover and lower cover, then remove them.
6) Disconnect all connectors for combination switch.
7) Remove combination switch from steering column.
INSPECTION
Check combination switch wire harness for any signs of scorching,
melting or other damage. If it is damaged, replace.
INSTALLATION
1) Install combination switch to steering column.
2) Connect all connectors that have been removed in removal.
