YH4
GRAND
VITARA
3D-12 FRONT SUSPENSION
1. Lock washer
2. Screws
1. Axle shaft drive flange

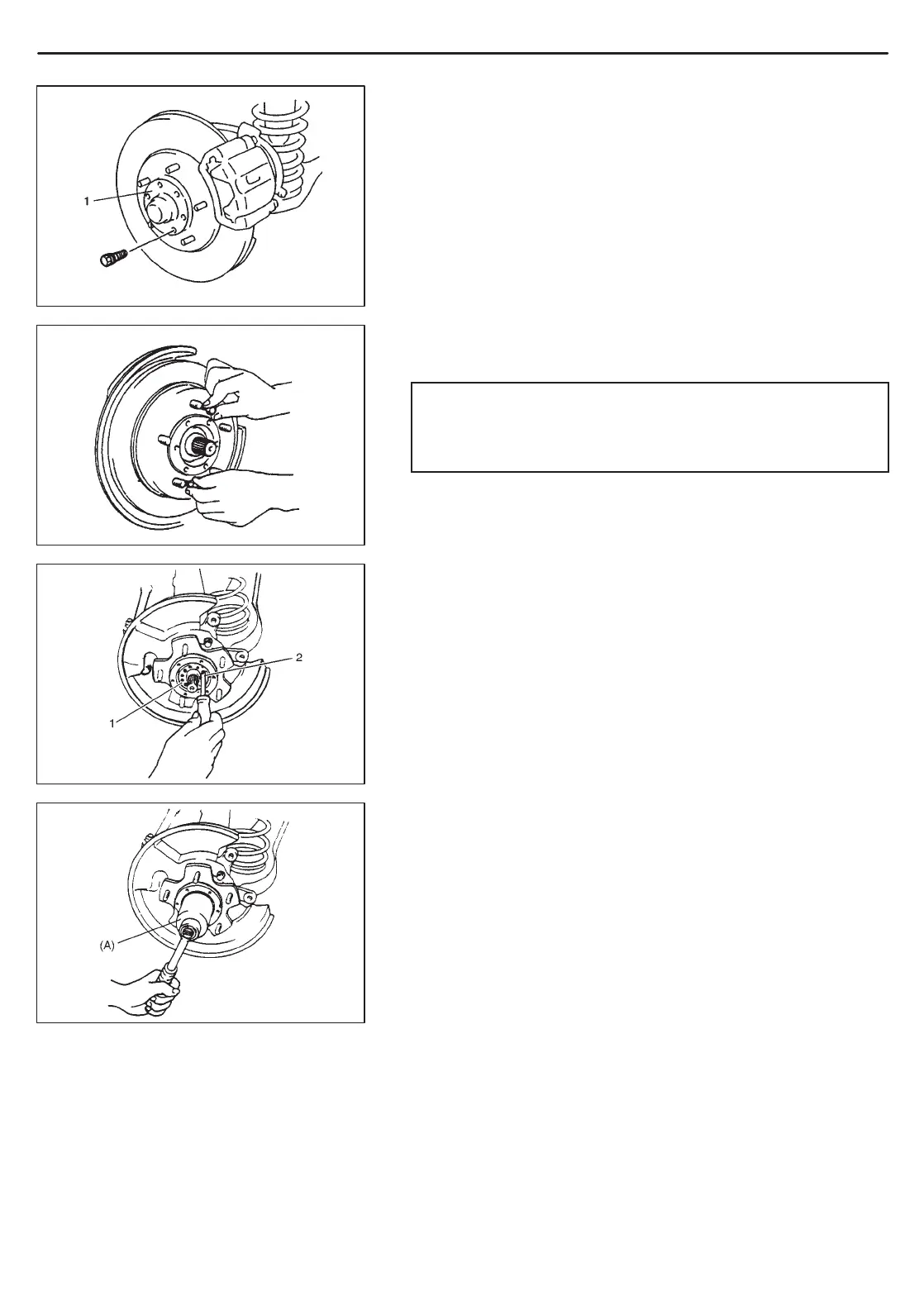

WHEEL HUB (INCLUDED WHEEL BEARING)
REMOVAL
1) Hoist vehicle and remove wheel.
2) Remove axle shaft drive flange (4WD vehicle) or hub cap (2WD
vehicle).
3) If equipped with ABS, remove wheel speed sensor from knuckle
and harness clamp from strut.
4) Remove caliper bolt and suspend caliper.
CAUTION:
Hang removed caliper with a wire hook or the like so as to
prevent brake hose from bending and twisting excessively
or being pulled.
Don’t operate brake pedal with pads removed.
5) Remove brake disc.
NOTE:
If brake disc can not be removed by hand, use 8 mm bolts as
shown.
6) Remove front wheel bearing lock washer by loosening 4 screws.
7) Remove front wheel bearing lock nut by using special tool.
Special Tool
(A): 09951-16050
8) Remove front wheel bearing washer.
9) Remove wheel hub component by hand.
To Next Page
