YH4

GRAND

VITARA

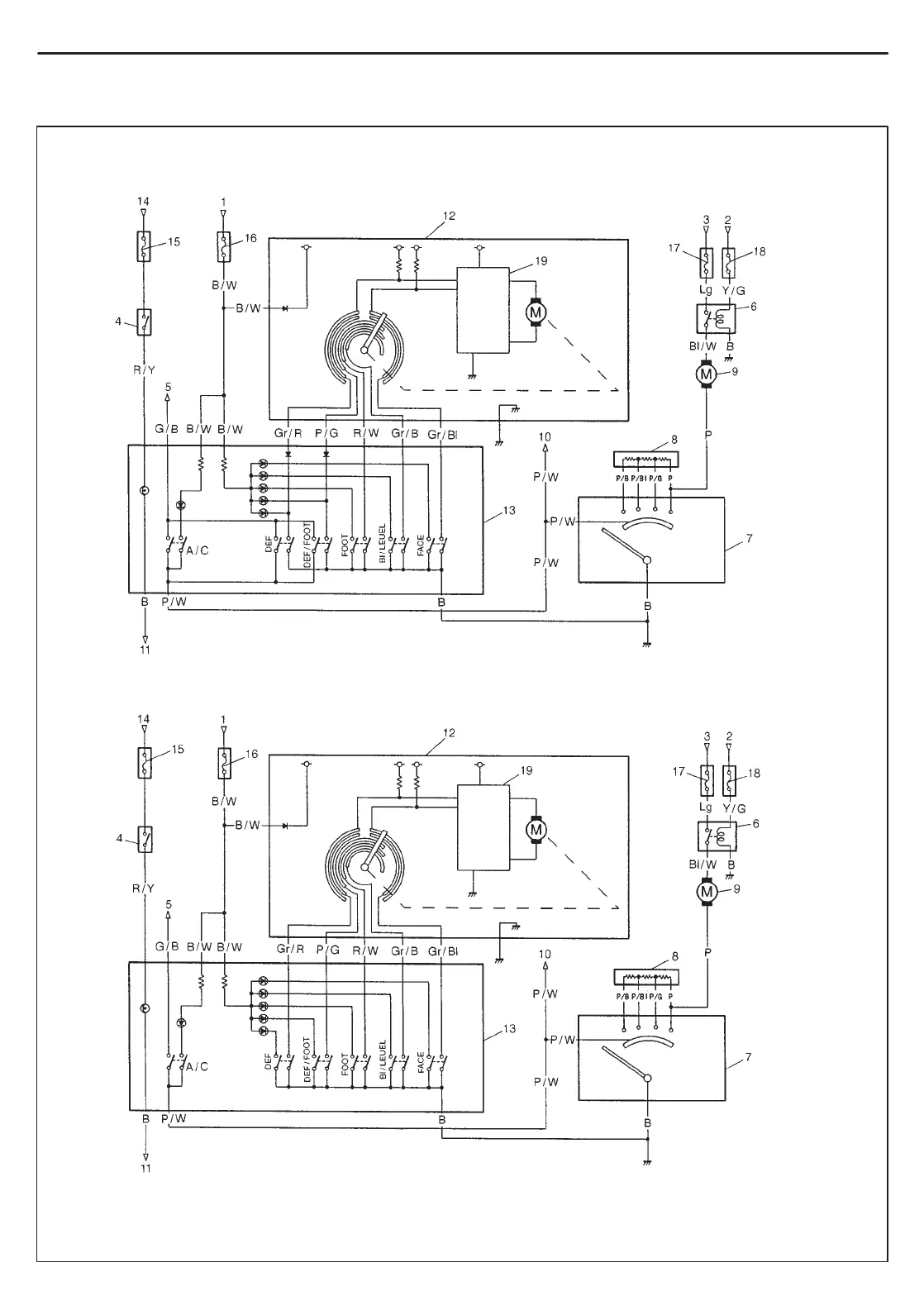

1A-4 HEATER AND VENTILATION

FOR LH VEHICLE

FOR RH VEHICLE

1. From ignition switch 1

2. From ignition switch 2

3. From blower fuse

4. Head light relay

5. To A/C controller

6. Blower motor relay

7. Blower motor switch

8. Blower resistor

9. Blower motor

10. To ECM

11. To illumination controller

(if equipped) or body ground

12. Mode control actuator

13. Mode control switch

14. From main fuse

15. TAIL fuse 15 A

16. IG METER fuse 20 A

17. HEATER fuse 30 A

18. REAR DEFG fuse 15 A

19. Drive circuit

WIRING CIRCUIT
