YH4
GRAND
VITARA

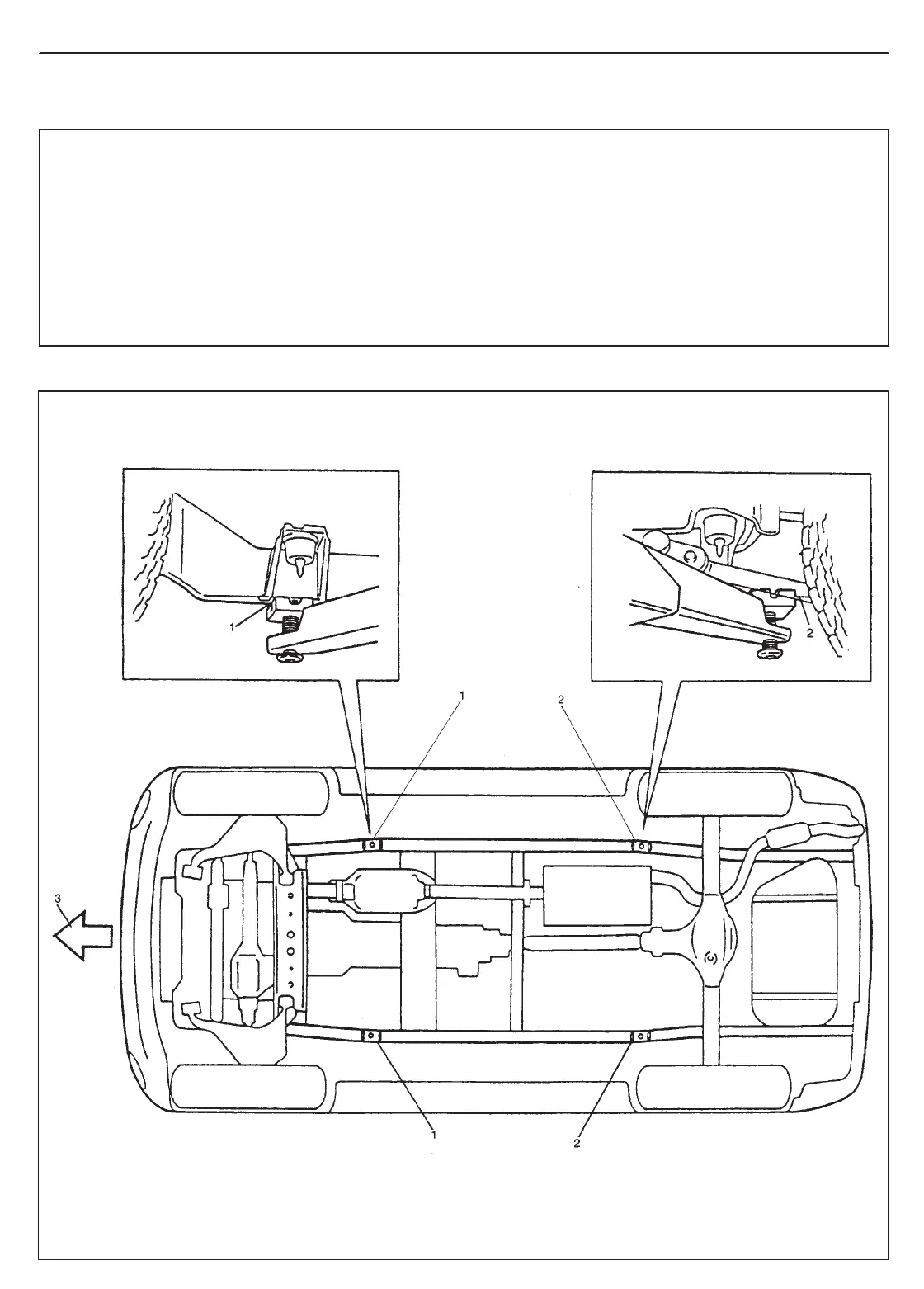

When using frame contact hoist:
1. Front lifting point
2. Rear lifting point
3. Front
GENERAL INFORMATION 0A-19
VEHICLE LIFTING POINTS
WARNING
When using frame contact hoist, apply hoist as shown (right and left at the same position). Lift up the
vehicle till 4 tires are a little off the ground and make sure that the vehicle will not fall off by trying to
move vehicle body in both ways. Work can be started only after this confirmation.
Before applying hoist to underbody, always take vehicle balance throughout service into consider-
ation. Vehicle balance on hoist may change depending of what part to be removed.
Make absolutely sure to lock hoist after vehicle is hoisted up.
Before lifting up the vehicle, check to be sure that end of hoist arm is not in contact with brake pipe,
fuel pipe, bracket or any other part.
