BODY SERVICE 9-75

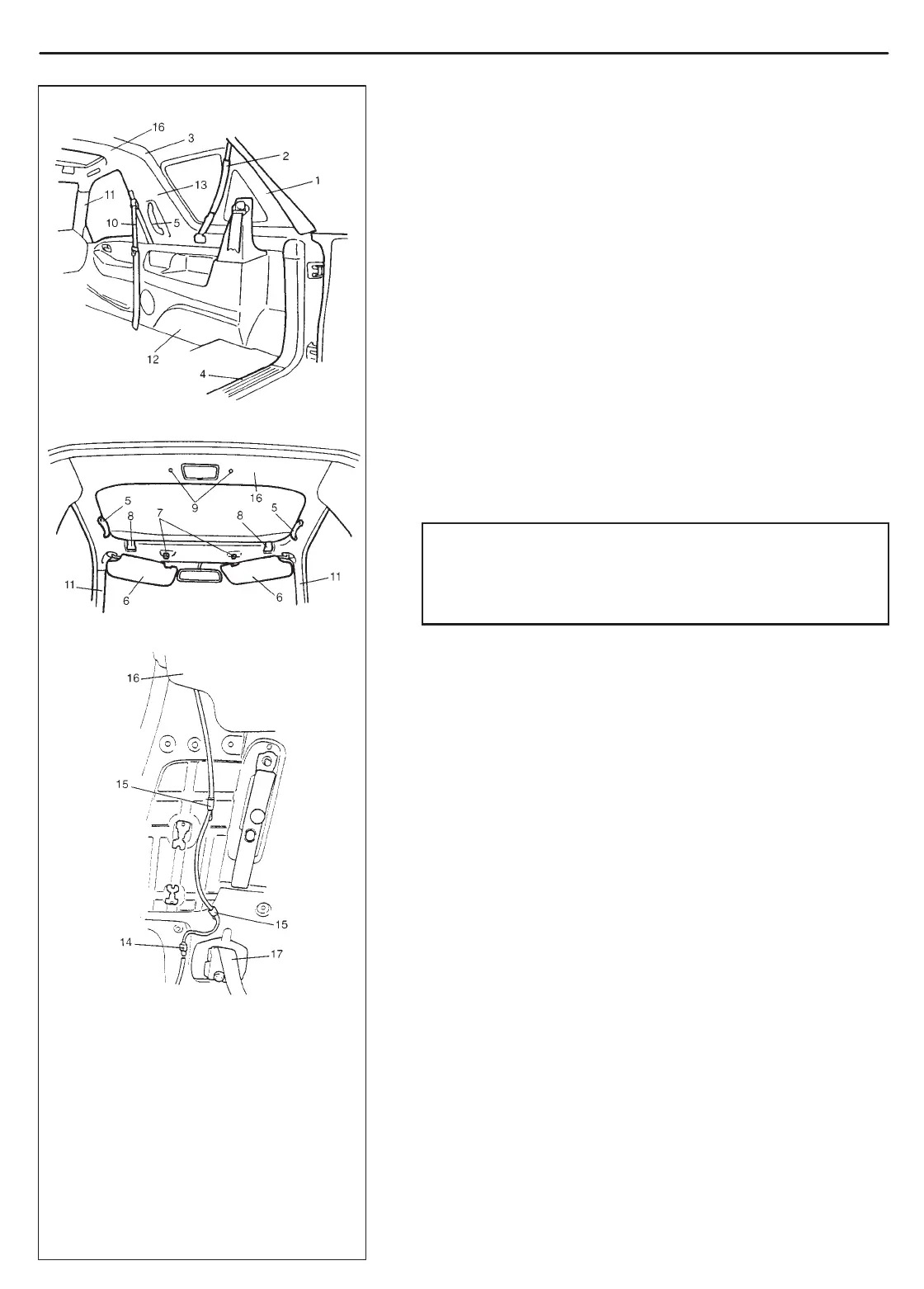

1. Canvas top
2. Rear topbow
3. Side body garnish
4. Luggage mat end garnish
5. Assistant grip
6. Sunshade assembly
7. Sunshade hook
8. Front topbow lock
9. Canvas top snap
10. Front seat belt
11. Front pillar trim
12. Rear side inner lower trim
13. Rear side inner upper trim
14. Room light connector
15. Room light harness clamp
16. Roof trim
17. Left-front seat belt
ROOF TRIM (2 DOOR MODEL)
REMOVAL
1) Remove canvas top.
2) Remove rear topbow.
3) Remove side body garnishes.
4) Remove luggage mat end garnish.
5) Remove assistant grips.
6) Remove sunshade assemblies.
7) Remove sunshade hooks.
8) Remove front topbow locks.
9) Remove canvas top snaps.
10) Remove front seat belts.
11) Remove front pillar trims.
12) Remove rear side inner lower trims.
13) Remove rear side inner upper trims.
14) Disconnect room light connector and remove room light har-
ness clamp.
15) Remove roof trim.
CAUTION:
Be very careful not to separate roof trim consists of 4
components when removing. If disassemble it, it could
not be assembled to original unit.
