YH4

GRAND

VITARA

LIGHTING SYSTEM 8B-11

REAR FOG LIGHT (IF EQUIPPED)

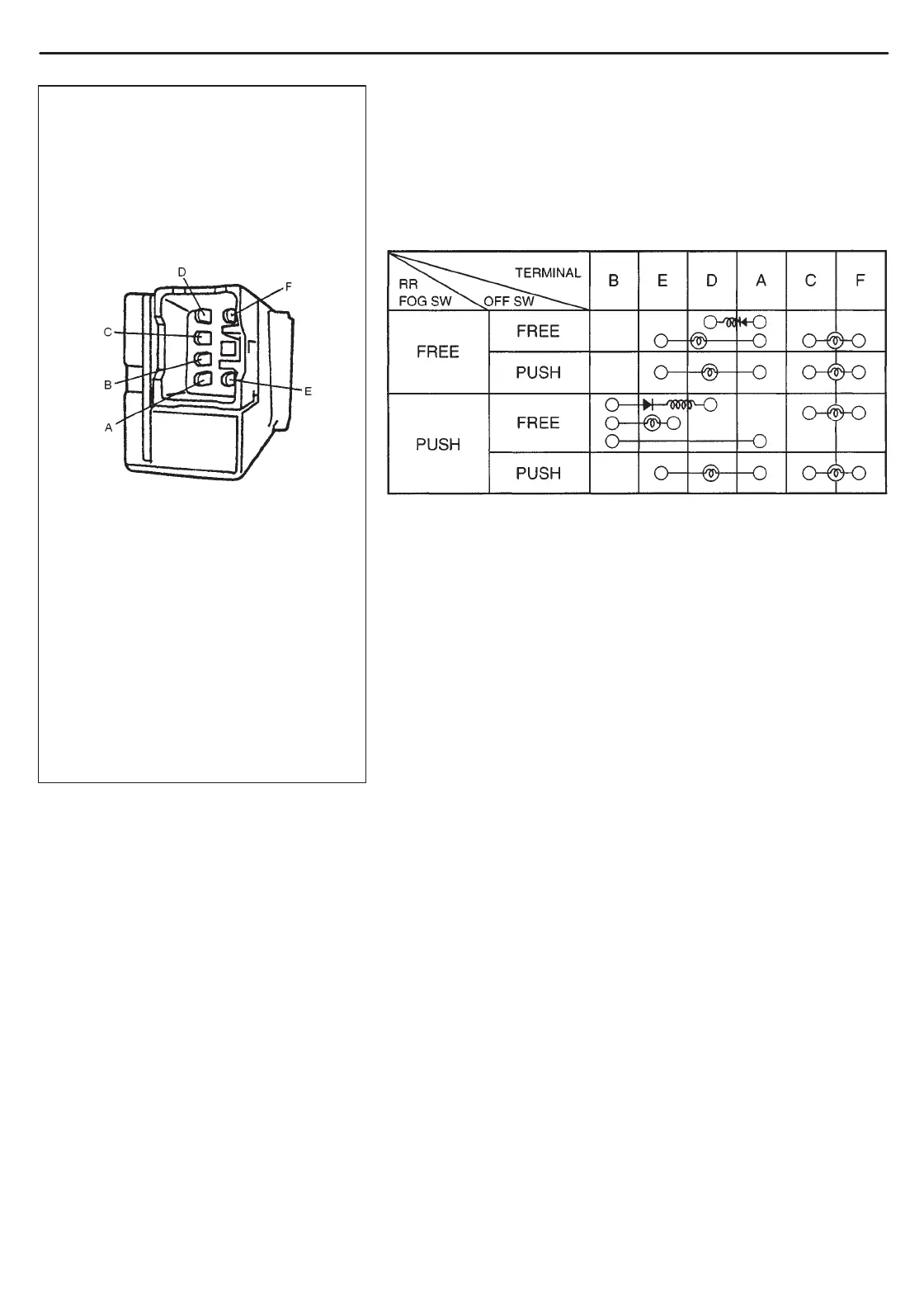

REAR FOG LIGHT SWITCH

INSPECTION

Check for continuity between terminals at each switch position

shown below. Hold the switch button (ON or OFF) pushed in during

checking switch.

NOTE:

Rear fog light lights up only when headlights (low or high

beams) or front fog lights (if equipped) are ON.

Rear fog lights turns OFF automatically when headlights or

front lights are turned OFF.
