YH4

GRAND

VITARA

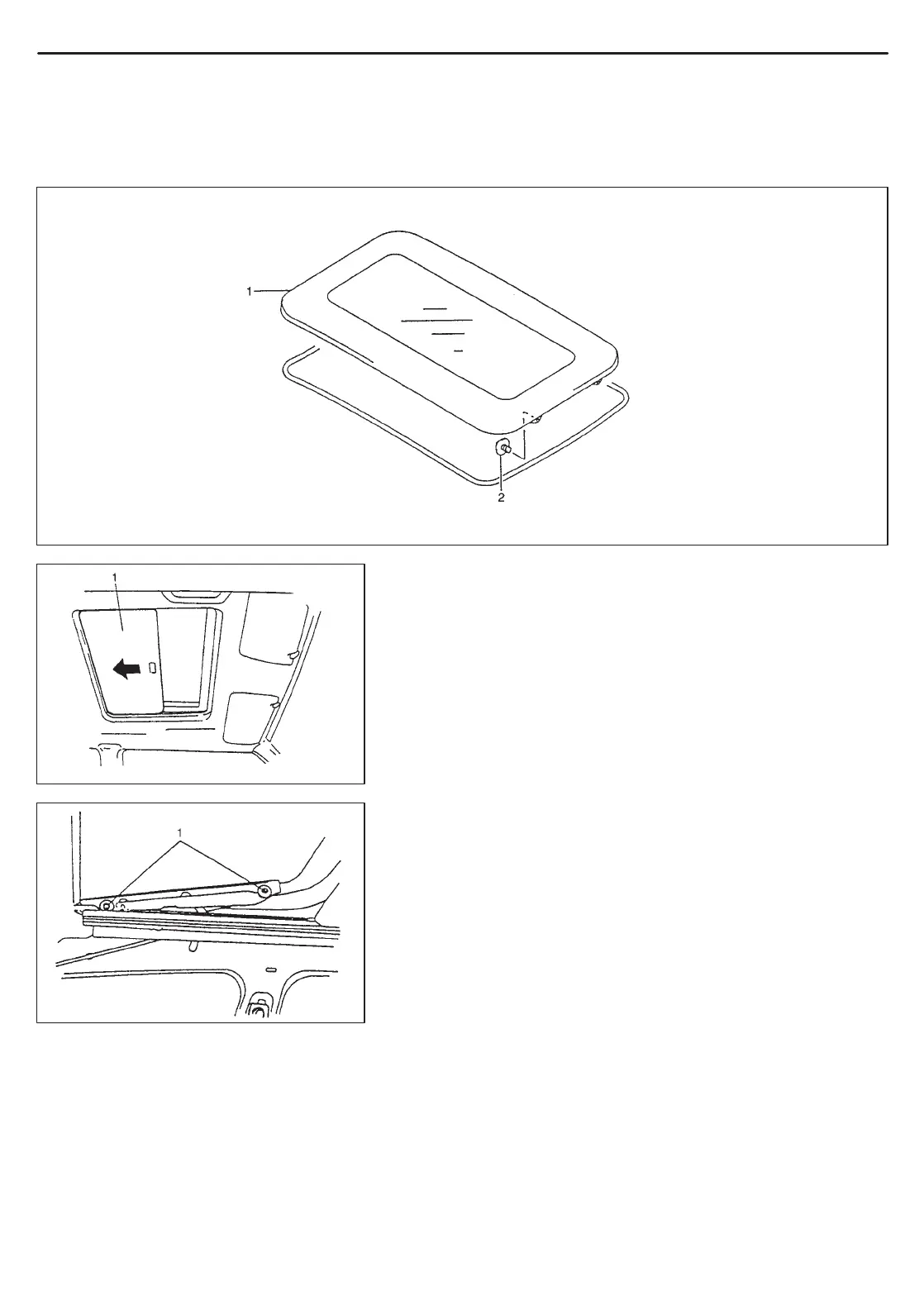

1. Sliding roof glass

2. Bolt

1. Sun shade

1. Bolt (Torx T25)

9-64 BODY SERVICE

SUNROOF/CONVERTIBLE TOP

SLIDING ROOF (IF EQUIPPED)

SLIDING ROOF GLASS

REMOVAL

1) Open sunshade fully and tilt up sliding roof.

2) Disconnect battery negative cable at battery.

3) Remove sliding roof glass by removing bolts (torx).

INSTALLATION

For installation, reverse removal procedure, noting following

points.

1) Tighten glass fixing bolts temporarily.

2) Position sliding roof glass by closing sliding roof glass complete-

ly.

3) Tighten glass fixing bolts.
