YH4
GRAND
VITARA
3D-8 FRONT SUSPENSION
1. Circlip
2. Washer
1. Wire
1. Front wheel
speed sensor
2. Harness clamp bolt

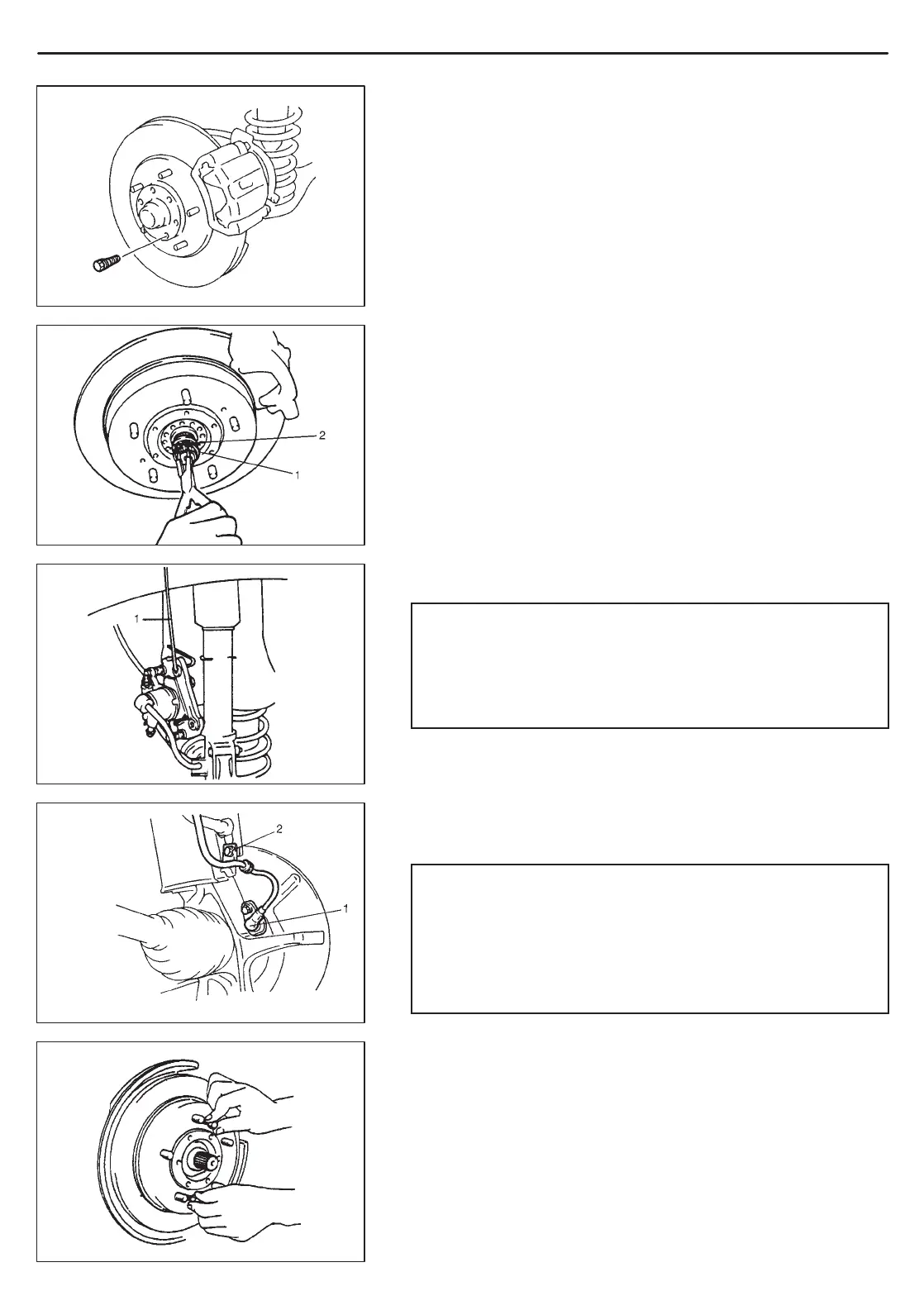

COIL SPRING
REMOVAL
1) Hoist vehicle, allowing front suspension to hang free.
2) Remove wheels.
3) Remove axle shaft drive flange (For 4WD vehicle).
4) Remove front drive shaft circlip and washer (For 4WD vehicle).
5) Remove caliper bolts and suspend caliper with a wire hook.
CAUTION:
Hang removed caliper with a wire hook so as to prevent
brake hose from bending and twisting excessively or be-
ing pulled.
Don’t operate brake pedal with pads removed.
6) If equipped with ABS, remove harness clamp bolt and remove
front wheel speed sensor from knuckle.
CAUTION:
Do not pull wire harness when removing front wheel
speed sensor.
Do not cause damage to surface of front wheel speed
sensor and do not allow dust, etc. to enter its installa-
tion hole.
7) Remove brake disc.
NOTE:
If brake disc can not be removed by hand, use 8 mm bolts
as shown.
To Next Page
