YH4
GRAND
VITARA
AUTOMATIC TRANSMISSION (4 A/T) 7B1-63

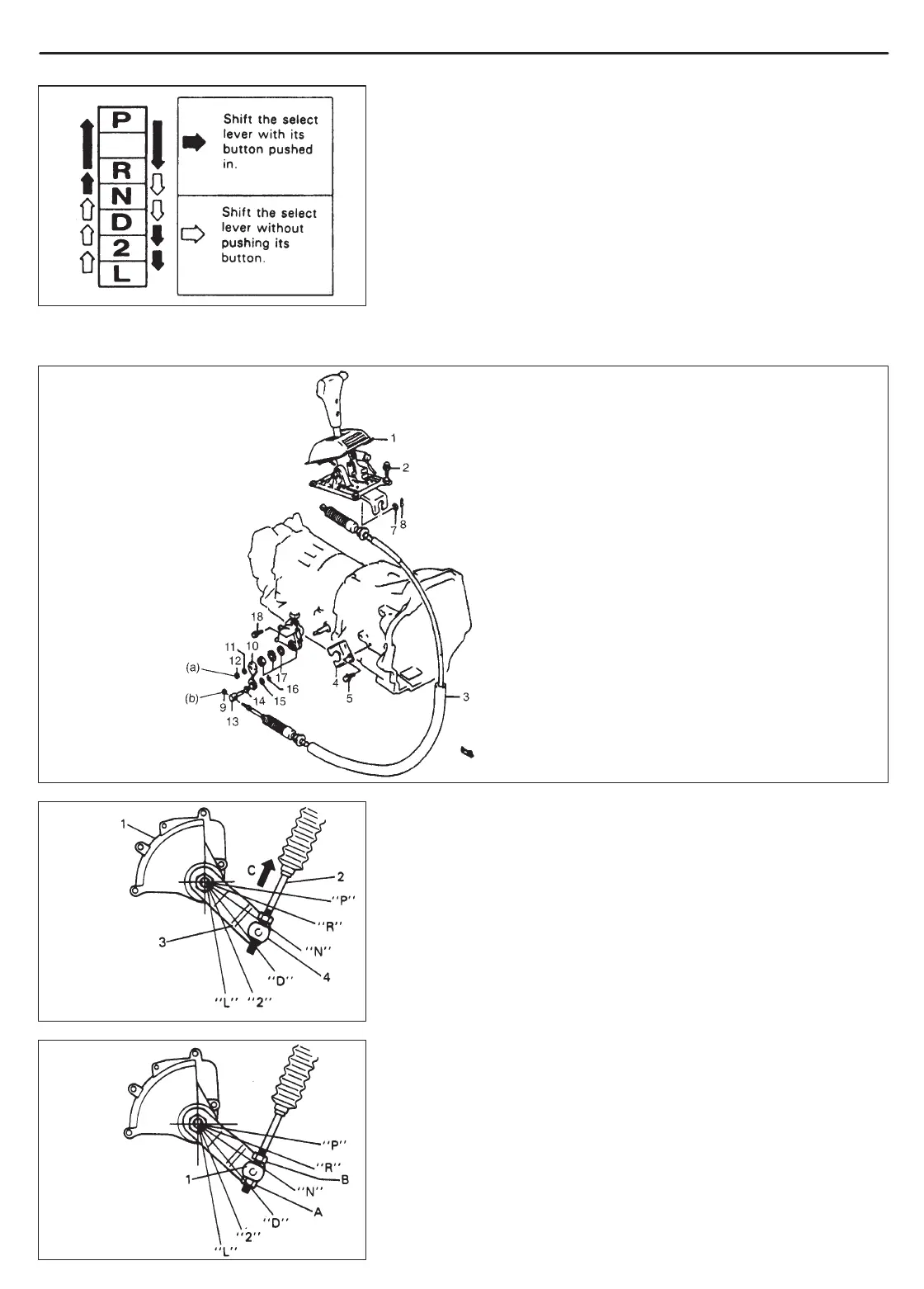

1. Select lever assembly
2. Bolt
3. Select cable
4. Cable bracket
5. Bolt
6. Blank
7. Washer
8. Clip
9. Nut
10. Manual select lever
11. Lock washer
12. Nut
13. Select cable joint
14. Bush
15. Washer
16. E-ring
17. Transmission range switch assembly
18. Bolt
1. Transmission range
sensor (switch)
2. Select cable
3. Manual shift lever
4. Select cable joint
1. Select cable joint
A. Align with cable joint
B. Tighten with wrench
Tightening Torque
(a): 13 N
.
m (1.3 kg-m, 9.5 lb-ft)
(b): 7 N
.
m (0.7 kg-m, 5.5 lb-ft)
INSPECTION
Check select lever for smooth and clear-cut movement and position
indicator for correct indication.
For operation of select lever, refer to left figure.
SELECT CABLE
ADJUSTMENT
1) Before tightening cable end nut, shift select lever to “N”.
2) Also shift manual shift lever to “N”.
NOTE:
Make sure that nut and cable joint have clearance under
above conditions.
If select cable has been moved, push it in arrow C direc-
tion as shown in figure at the left till it stops and then con-
firm that select lever is in “N” position.
3) Turn nut A by hand till it contacts manual select cable joint.
Then tighten nut B with wrench.
4) After select cable was installed, check for the following.
Push vehicle with select lever shifted to “P”.
Vehicle should not move.
Vehicle can not be driven in “N”.
Vehicle can be driven in “D”, “2”, and “L”.
Vehicle can be backed in “R”.
